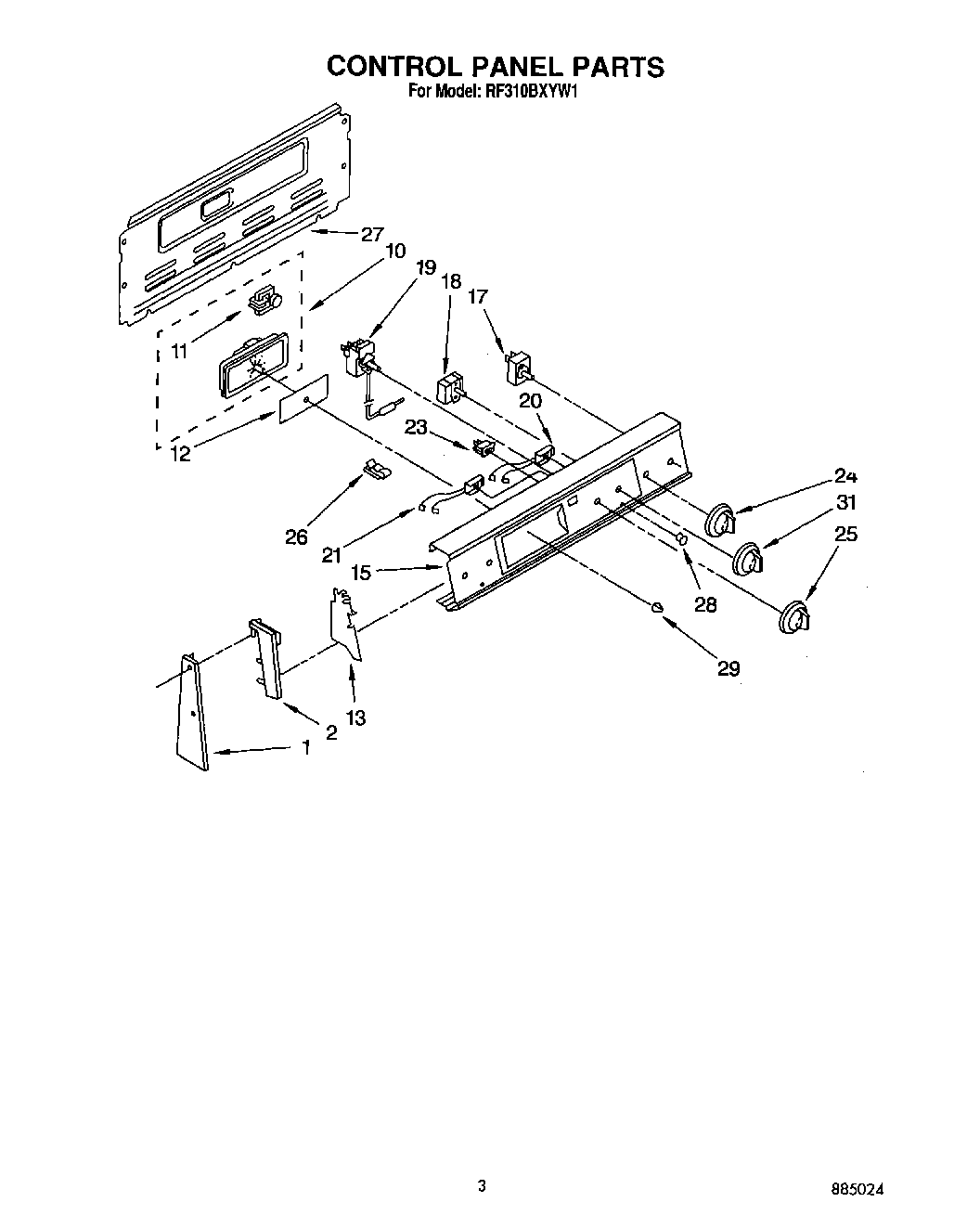

RF310BXYW1 02 – CONTROL PANEL

RF310BXYW1 02 – CONTROL PANEL

Written by

in

RF310BXYW1 02 – CONTROL PANEL

Products

PositionProduct
1WP3390631 Whirlpool Screw
1Screw 10-32×7/16“
1Screw 10-32×1“
2End Cap, R.H. (White/Almond/Gold)
2End Cap, R.H. (White/Almond/Gold)
2Screw,
10Timer, Clock
11Motor, Timer
12Glass, Timer
13WP965173 Whirlpool Dishwasher Screw
13Shield (2)
15Panel, Control (White Mdl.)
17SWITCH-INF
17WP3149404 Whirlpool Oven Surface Element Switch
18Switch, Selector
18WP486579 Whirlpool Air Conditioner Screw
19Thermostat, Oven
19WP313808 Whirlpool Screw
20Light, Indicator (250V)
21Light, Indicator (Includes No. 12) (Surface Unit On)
23WP4314961 Whirlpool Lite Switch
24Knob, (4) Infinite Switch (White/Almond/Gold)
25Knob, Thermostat
26Clip, Tube
27SCREW
27Harness-Conduit Asm.
28Lens, Amber
29WP3169181 Whirlpool Knob
31Knob, Selector (White/Almond/Gold)
