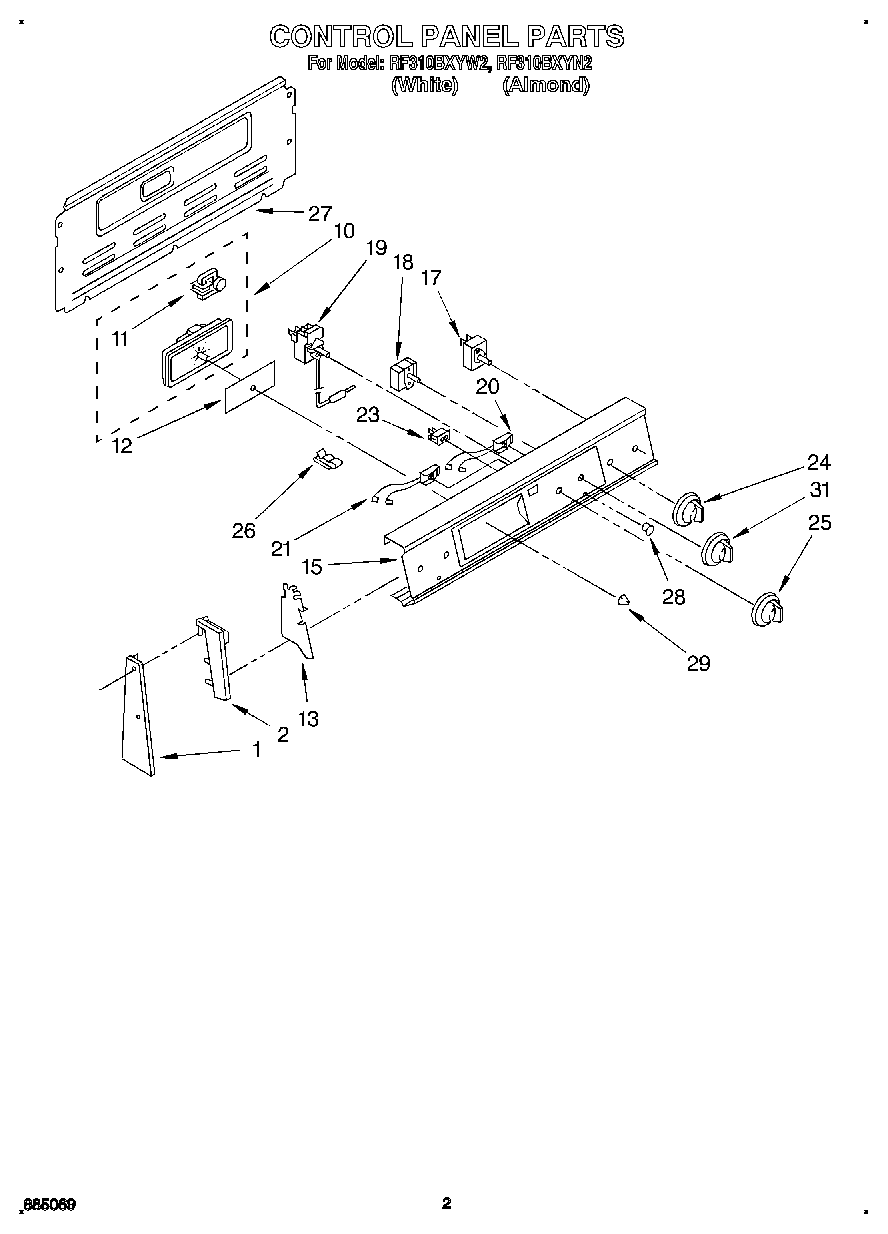

RF310BXYW2 02 – CONTROL PANEL

Products

Position	Product
1	WP3390631 Whirlpool Screw
1	Screw 10-32x7/16``
1	Screw 10-32x1``
2	End Cap, R.H. (White/Almond/Gold)
2	End Cap, R.H. (White/Almond/Gold)
2	Screw,
10	Timer, Clock
11	Motor, Timer
12	Glass, Timer
13	WP965173 Whirlpool Dishwasher Screw
13	Shield (2)
15	Panel, Control (White Mdl.)
17	SWITCH-INF
17	WP3149404 Whirlpool Oven Surface Element Switch
18	Screw, 8-32 x 3/16 (2)
18	Switch, Selector
19	Thermostat, Oven
19	WP313808 Whirlpool Screw
20	Light, Indicator (250V)
21	Light, Indicator (Includes No. 12) (Surface Unit On)
23	WP4314961 Whirlpool Lite Switch
24	Knob, (4) Infinite Switch (White/Almond/Gold)
25	Knob, Thermostat
26	Clip, Tube
27	Rear Cover Contr
27	SCREW
28	Lens, Amber
29	WP3169181 Whirlpool Knob
31	Knob, Selector (White/Almond/Gold)
