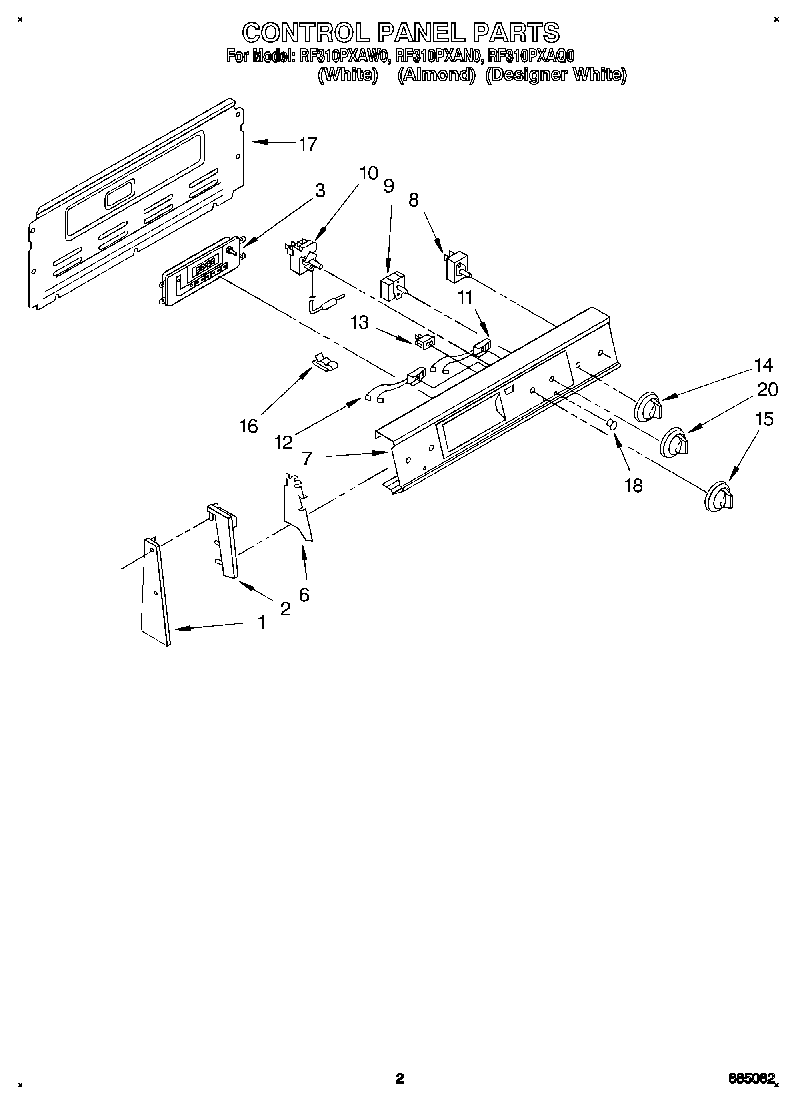

RF310PXAQ0 02 – CONTROL PANEL

Products

Position	Product
1	WP3390631 Whirlpool Screw
1	Screw 10-32×7/16“
1	Screw 10-32×1“
2	End Cap, R.H. (White/Almond/Gold)
2	End Cap, R.H. (White/Almond/Gold)
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
3	Designer White Mdl
3	Timer, Clock
6	WP965173 Whirlpool Dishwasher Screw
6	Shield (2)
7	Panel, Control (Almond Mdl.)
7	Panel, Control (White Mdl.)
7	Panel, Control (Designer White Mdl)
8	WP3149404 Whirlpool Oven Surface Element Switch
8	SWITCH-INF
9	Screw, 8-32 x 3/16 (2)
9	Switch, Selector
10	Thermostat, Oven
10	WP313808 Whirlpool Screw
11	Light, Indicator (250V)
12	Light, Indicator (Includes No. 12) (Surface Unit On)
13	3149360 Whirlpool Light Switch
13	WP4314961 Whirlpool Lite Switch
14	Knob, (4) Infinite Switch (Designer Mdl)
14	Knob, (4) Infinite Switch (White/Almond/Gold)
15	Knob, Thermostat
15	Knob, Temperature (Designer Mdl)
16	Clip, Tube
17	SCREW
17	Rear Cover Contr
18	Lens, Amber
20	Knob, Selector (Designer Mdl)
20	Knob, Selector (White/Almond/Gold)
