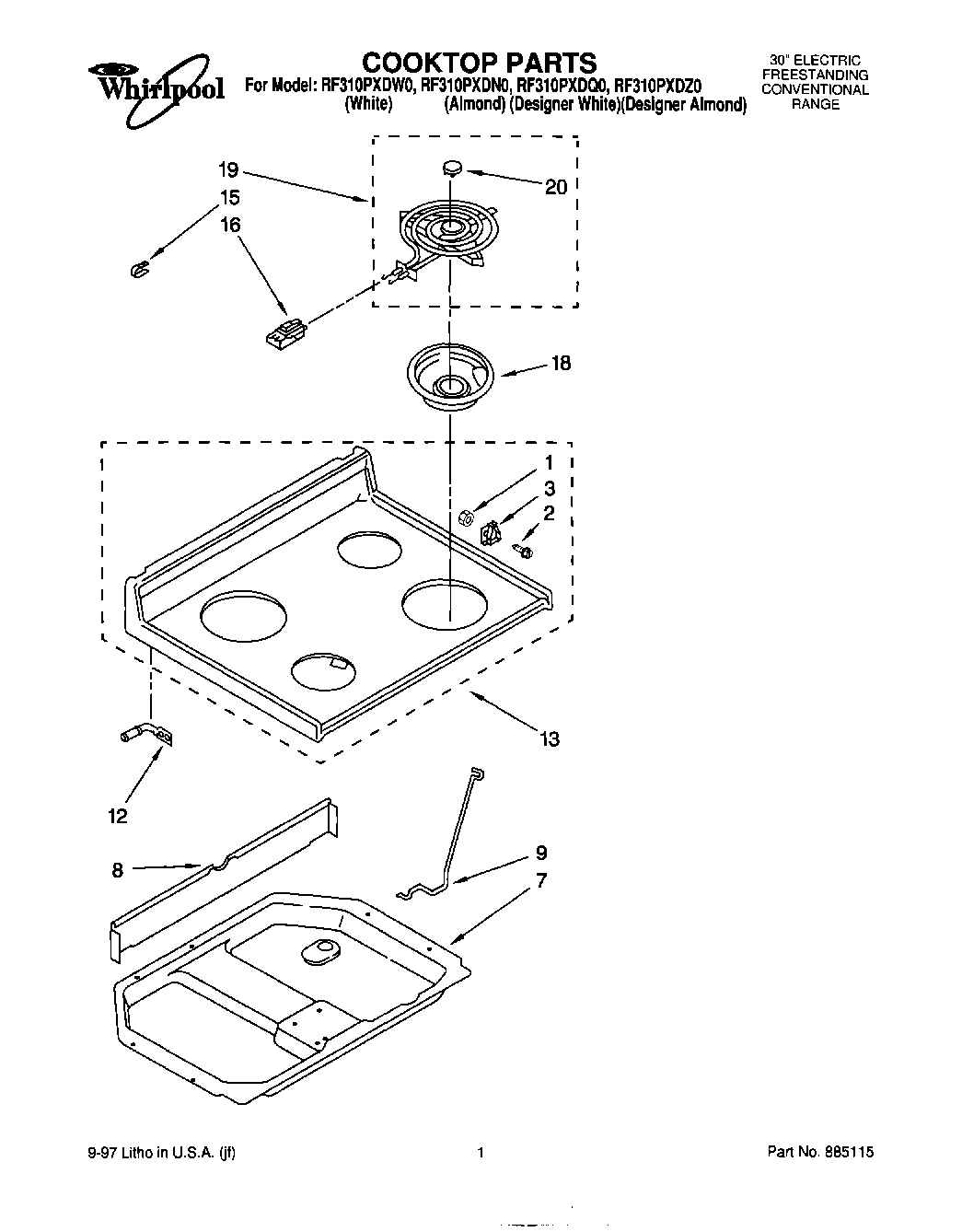

RF310PXDN0 01 – COOKTOP

RF310PXDN0 01 – COOKTOP

Written by

in

RF310PXDN0 01 – COOKTOP

Products

PositionProduct
2WP487887 Whirlpool Refrigerator Screw
3814103 Whirlpool Clip
7WP3390631 Whirlpool Screw
7Box, Burner
8Shield, Wiring
9Rod, Cooktop
12Pin, Cooktop (2)
13Cooktop (Almond)
13Cooktop (White)
15SCREW
15WP308605 Whirlpool Refrigerator Clamp
16WP313808 Whirlpool Screw
16WP4332752 Whirlpool Clip
18WPW10290350 Whirlpool Stove Drip Bowl
18WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
18WPW10196406 Whirlpool 6" Chrome Drip Bowl
18DRIP BOWL 8" W/HOLE CHROME
19WP660532 Whirlpool Oven Surface Element
19WP660533 Whirlpool Oven 8" Surface Element
20Medallion (4)
