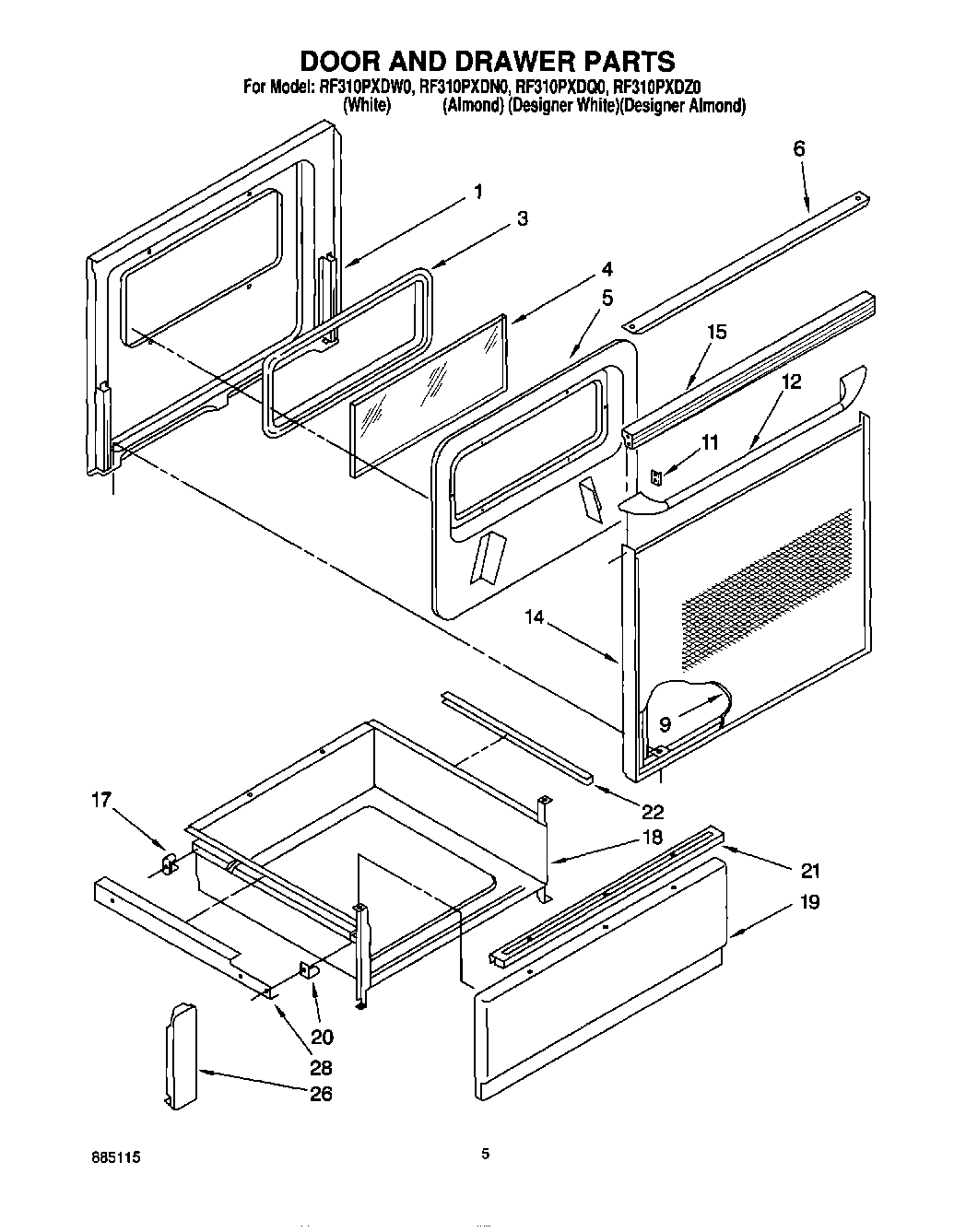

RF310PXDN0 04 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
3	Seal, Door
4	Glass, Clear
5	Screw
5	Retainer, Insulation
6	Cap, Top (Designer White)
6	Top, Door Frame (Screw (2))
6	Cap, Top (Designer Almond)
6	Top, Door Frame (Screw (2))
9	Glass Panel, Outer (Almond)
9	Glass Panel, Outer (White)
9	Glass Panel, Outer (Black)
11	Clip, Mtg (2)
12	Handle, Door (Almond)
12	WP999367 Whirlpool Refrigerator Screw
12	Handle, Door (White)
12	Handle, Door (Black)
14	Frame, Door (Almond)
14	Frame, Door (White)
14	Handle, Door (Screw)
14	Frame, Door (Black)
14	Frame, Door (Screw (4))
14	Back Splash (Screw (4) 10AB x 1/2“)
14	Screw
14	Handle, Door (Screw (4))
15	Top, Door Frame (Designer Almond)
15	Top, Door Frame (Black)
15	Top, Door Frame (Designer White)
17	Glide, Rear (2)
18	Drawer, Utility
19	Panel Drawer (White)
19	Panel Drawer (Almond)
19	WP488627 Whirlpool Refrigerator Screw
20	Glide, Front (2)
21	Handle, Drawer (Almond)
21	Handle, Drawer (White)
22	Protector, Drawer (2)
26	Bracket, Mounting (2)
28	Screw, 10A x 1/2 (2) (Black)
28	Rail R.H. (Includes Illus. 3)
28	Rail L.H. (Includes Illus. 3)
