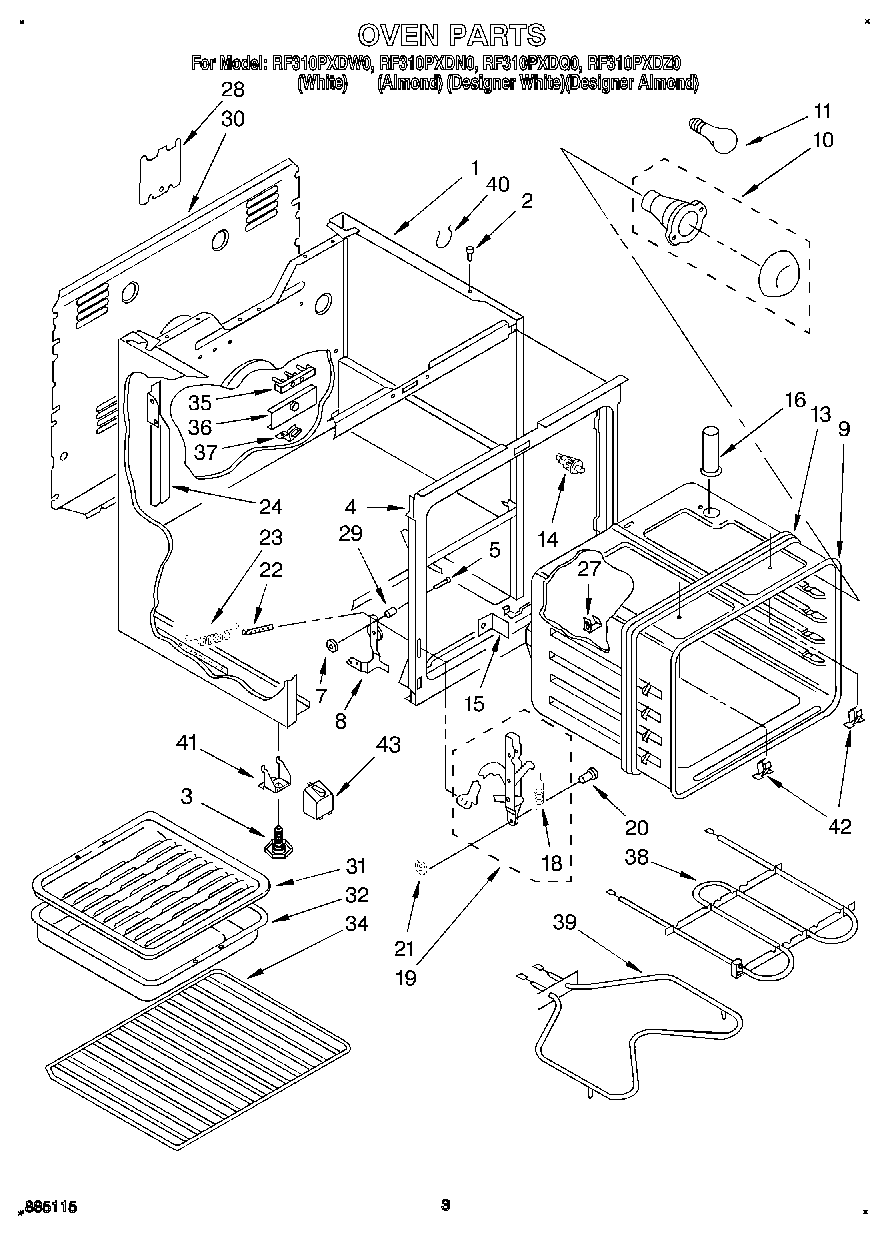

RF310PXDZ0 03 – OVEN

Products

Position	Product
1	Main Chassis (Almond)
1	Main Chassis (White)
2	238614 Whirlpool Bumper Hinge
3	Leg Leveling (4)
4	Screw (Top)
4	Frame, Front
4	Screw (3)
5	Pin, Hinge Ear (2)
7	Pushnut (2)
8	Hinge, L.H.
8	Hinge, R.H.
9	Oven (30“ Pyro)
10	W11594027 Whirlpool Range Oven Light Socket
11	RANGE ONLY 40W 120V APPL BULB
13	Heat Seal
14	Switch, Door
15	Bracket, Oven (Mounting)
16	Screw, 10A x 1/2 (2) (Black)
16	9755804 Whirlpool Oven Vent Tube
18	Spring, Door Stop
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover
24	Wire Cover-Controls (Right)
27	98005642 Whirlpool Clip
28	Cover, Service
29	Snubber, Door (2)
30	Cover, Rear
31	4396923 Whirlpool Broil Pan Set Gray Porcelain
34	WPL 308173
35	WP8203546 Whirlpool Terminal Block
35	WP112432 Whirlpool Nut Assembly
35	Screw, (2) 10-16 x 1
36	Bracket, Service
37	Clip, Ground Wire
37	WPL 308498
38	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
39	Screw (2)
39	ELMNT-BAKE
40	16515 Whirlpool Clip
41	SCREW
41	Support, Foot (2)
42	WPL 3169107
43	Insulation, Wrap
43	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
43	Cover, Foot (2)
