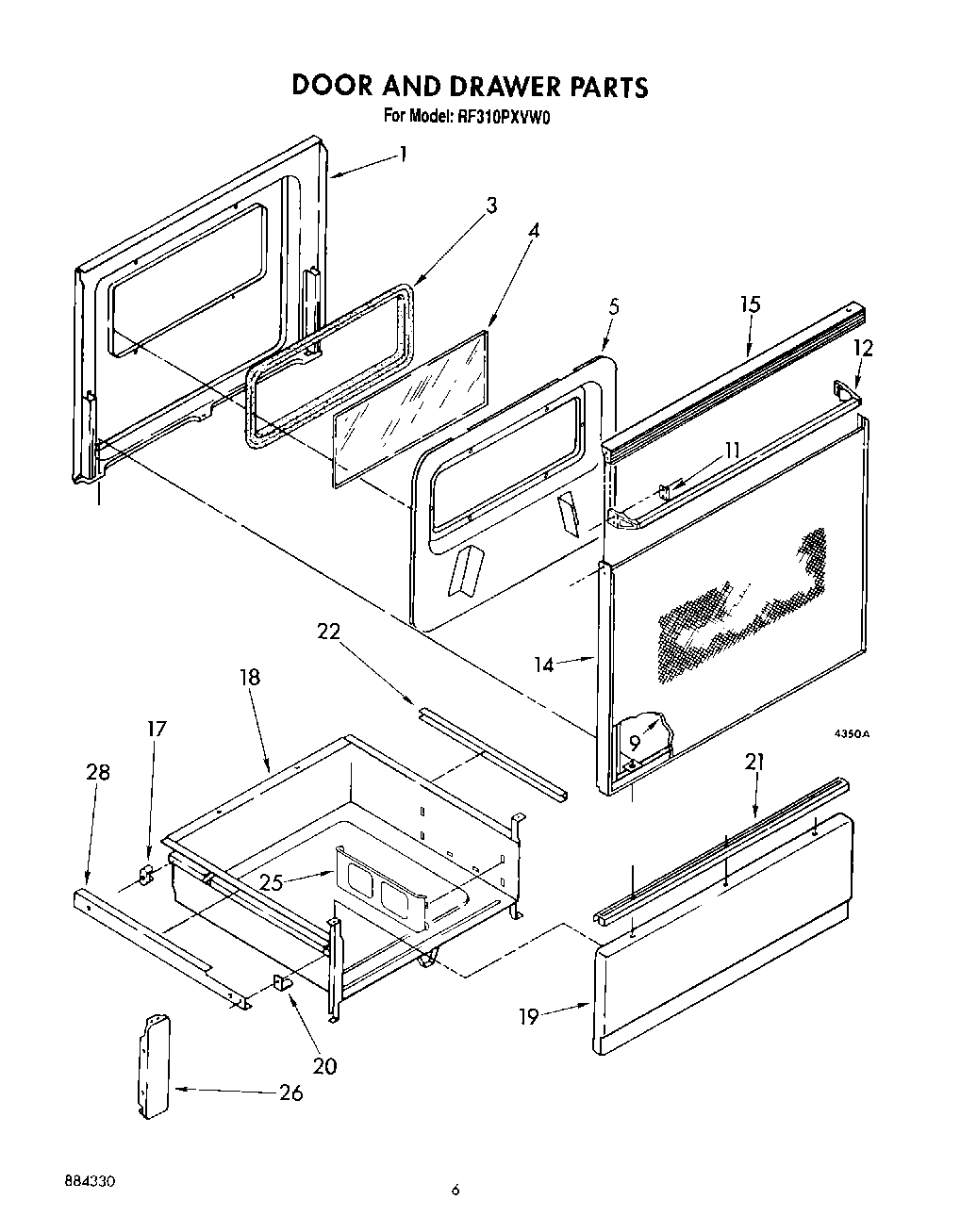

RF310PXVF0 05 – DOOR AND DRAWERadmin2025-04-26T11:06:40+00:00RF310PXVF0 05 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Liner, Door |
| 1 | Screw (3) |
| 3 | Seal, Door |
| 4 | Glass, Inner |
| 5 | Retainer, Insulation |
| 5 | Screw |
| 6 | Pad, Sound |
| 9 | Glass, Panel (Black Model) |
| 11 | Clip, Mtg (2) |
| 12 | WP355515 Whirlpool Screw |
| 12 | Handle, Oven Door |
| 14 | Frame, Door |
| 15 | Top, Door (Black Model) |
| 17 | Glide, Rear (2) |
| 18 | Drawer, Utility |
| 19 | Panel, Drawer (Platinum) |
| 19 | Panel Drawer (White) |
| 19 | Panel, Drawer (Almond) |
| 19 | Panel, Drawer (Toast) |
| 19 | WP488787 Whirlpool Refrigerator Screw |
| 19 | Panel Drawer (Harvest Gold) |
| 21 | WP488627 Whirlpool Refrigerator Screw |
| 21 | Handle, Drawer |
| 22 | Protector, Drawer (2) |
| 25 | Rack, Literature |
| 26 | Bracket, Mounting (2) |
| 28 | Rail R.H. (Includes Illus. 3) |
| 28 | Rail L.H. (Includes Illus. 3) |
| 28 | Screw, 10A x 1/2 (2) (Black) |
