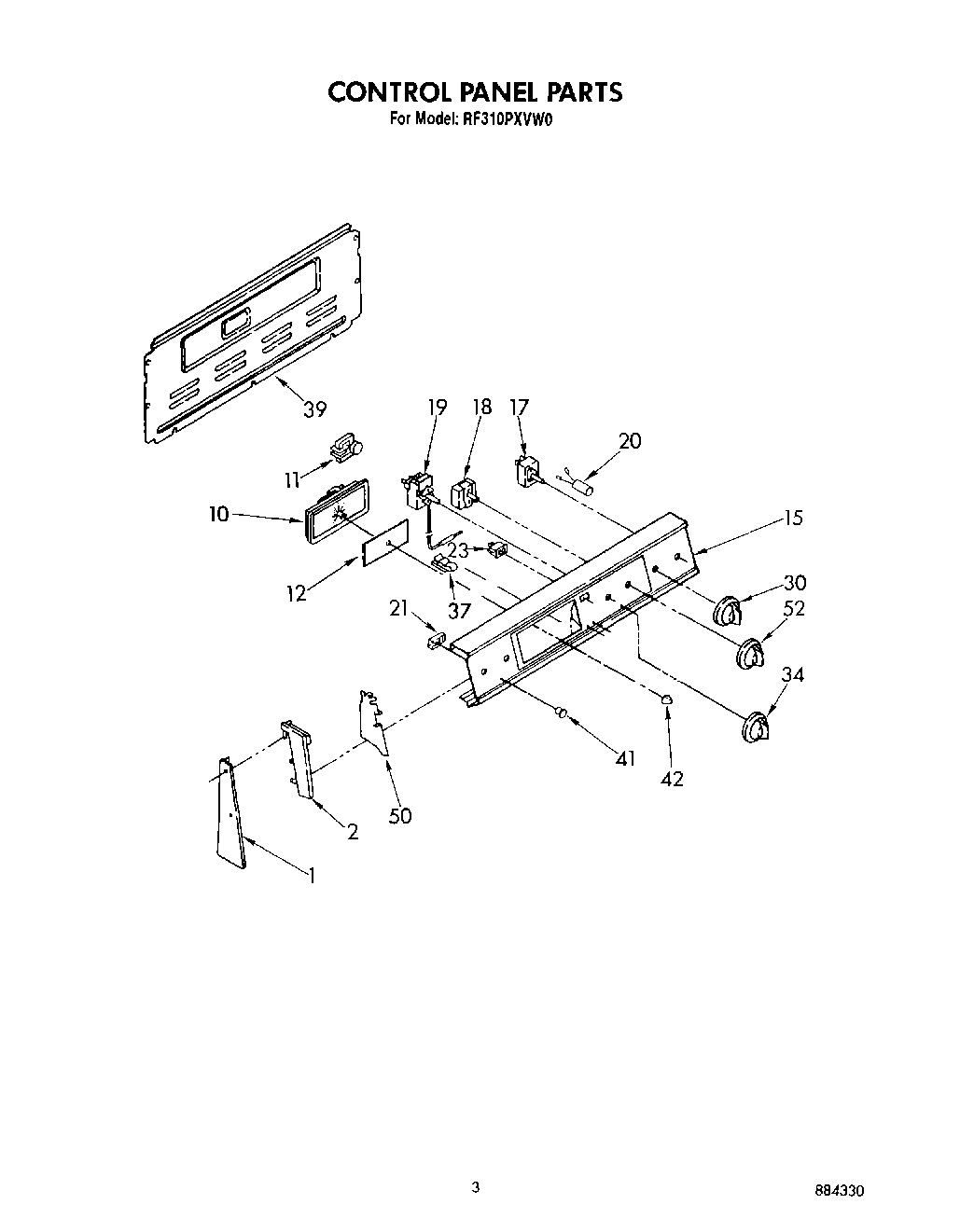

RF310PXVN0 03 – CONTROL PANEL

Products

Position	Product
1	Screw 10-32×1“
1	WP3390631 Whirlpool Screw
1	Screw 10-32×7/16“
2	Screw,
2	End Cap L.H.
2	End Cap R.H.
10	Timer, Clock
11	Motor, Timer
12	Glass, Timer
15	Panel, Control
15	Washer
17	SWITCH-INF
17	WP3149404 Whirlpool Oven Surface Element Switch
18	Switch, Selector
18	WP486579 Whirlpool Air Conditioner Screw
19	WP313808 Whirlpool Screw
19	Thermostat, Oven
20	Light, Indicator (250V)
21	Light, Indicator (Surface Unit (2))
23	WP4314961 Whirlpool Lite Switch
30	Knob, Switch (4)
34	Knob, Switch
34	Screw
37	Clip, Tube
39	Harness-Conduit Asm.
39	SCREW
41	Lens, Amber
42	WP3169181 Whirlpool Knob
43	Spring (3)
50	Shield (2)
50	WP965173 Whirlpool Dishwasher Screw
52	Knob, Selector
53	WP688805 Whirlpool Spring Clip
