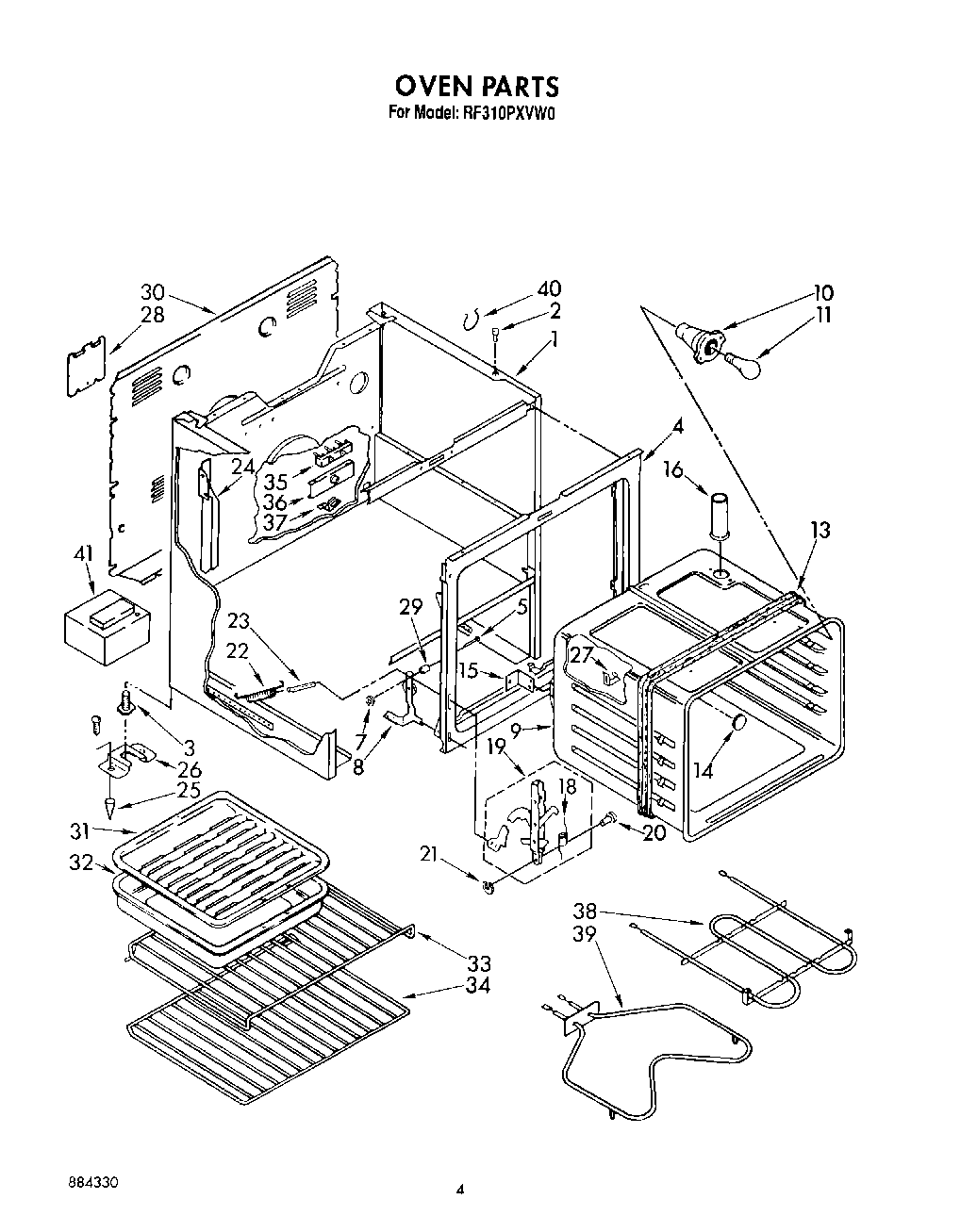

RF310PXVN0 04 – OVEN

Products

Position	Product
1	Main Chassis (Platinum)
1	Main Chassis (Harvest Gold)
1	Main Chassis (Almond)
1	Main Chassis (Toast)
1	Main Chassis (White)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
5	Pin, Hinge Ear (2)
7	Pushnut (2)
8	Hinge (R.H.)
8	Hinge (L.H.)
9	Screw (3)
9	WPL 329000
10	Socket, Oven Light
10	Screw (10-12 x .875)
11	RANGE ONLY 40W 120V APPL BULB
13	Heat Seal
14	Plug Button
15	Bracket, Oven (Mounting)
16	Vent, Oven
16	Screw, 10A x 1/2 (2) (Black)
18	Spring, Door Stop
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover
24	Wire Cover-Controls (Right)
25	Anchor, Plastic
26	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
26	Screw
27	98005642 Whirlpool Clip
28	Cover, Service
29	Snubber, Door (2)
30	Cover, Rear
31	4396923 Whirlpool Broil Pan Set Gray Porcelain
32	Plug Button
33	WPL 308172
34	WPL 308173
35	WP112432 Whirlpool Nut Assembly
35	Screw, (2) 10-16 x 1
35	WP8203546 Whirlpool Terminal Block
36	Bracket, Service
36	SCREW
37	Clip, Ground Wire
37	WPL 308498
38	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
39	Screw, 10-32 x 5/8 (4)
39	ELMNT-BAKE
40	16515 Whirlpool Clip
41	Block, Balance
