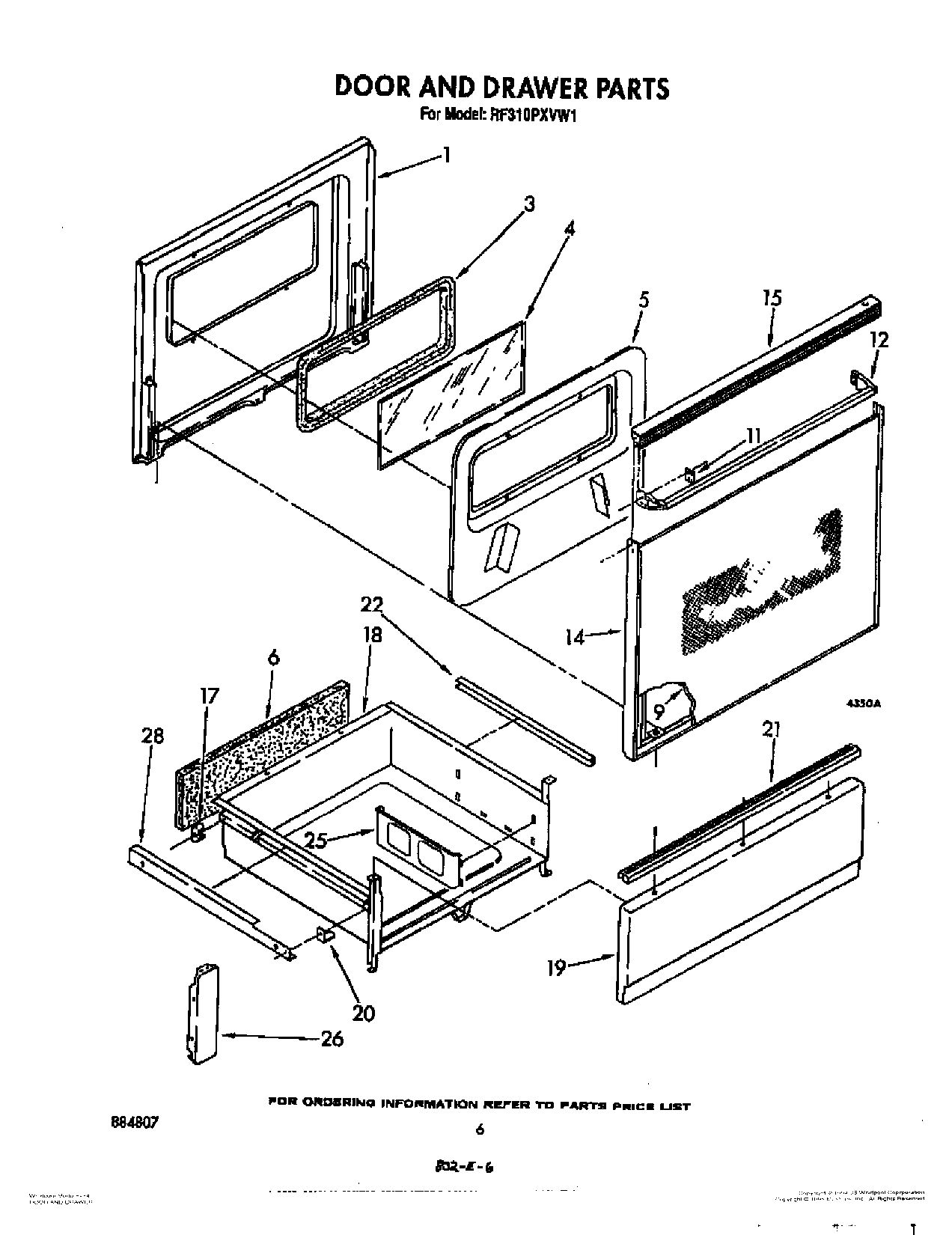

RF310PXVN1 05 – DOOR AND DRAWER

Products

Position	Product
	NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1	Liner, Door
1	Screw (3)
3	Seal, Door
4	Glass, Inner
5	Screw
5	Retainer, Insulation
6	Pad, Sound
9	Glass, Panel (Black Model)
11	Clip, Mtg (2)
12	Handle, Oven Door
14	Frame, Door
14	WP355515 Whirlpool Screw
15	Back Splash (Screw (4) 10AB x 1/2“)
15	Top, Door (Black Model)
17	Glide, Rear (2)
18	Drawer, Utility
19	WP488787 Whirlpool Refrigerator Screw
19	Panel Drawer (White)
19	Panel, Drawer (Almond)
20	Glide, Front (2)
21	Handle, Drawer
21	WP488627 Whirlpool Refrigerator Screw
22	Protector, Drawer (2)
25	Rack, Literature
26	Bracket, Mounting (2)
28	Rail R.H. (Includes Illus. 3)
28	Rail L.H. (Includes Illus. 3)
28	Screw, 10A x 1/2 (2) (Black)
