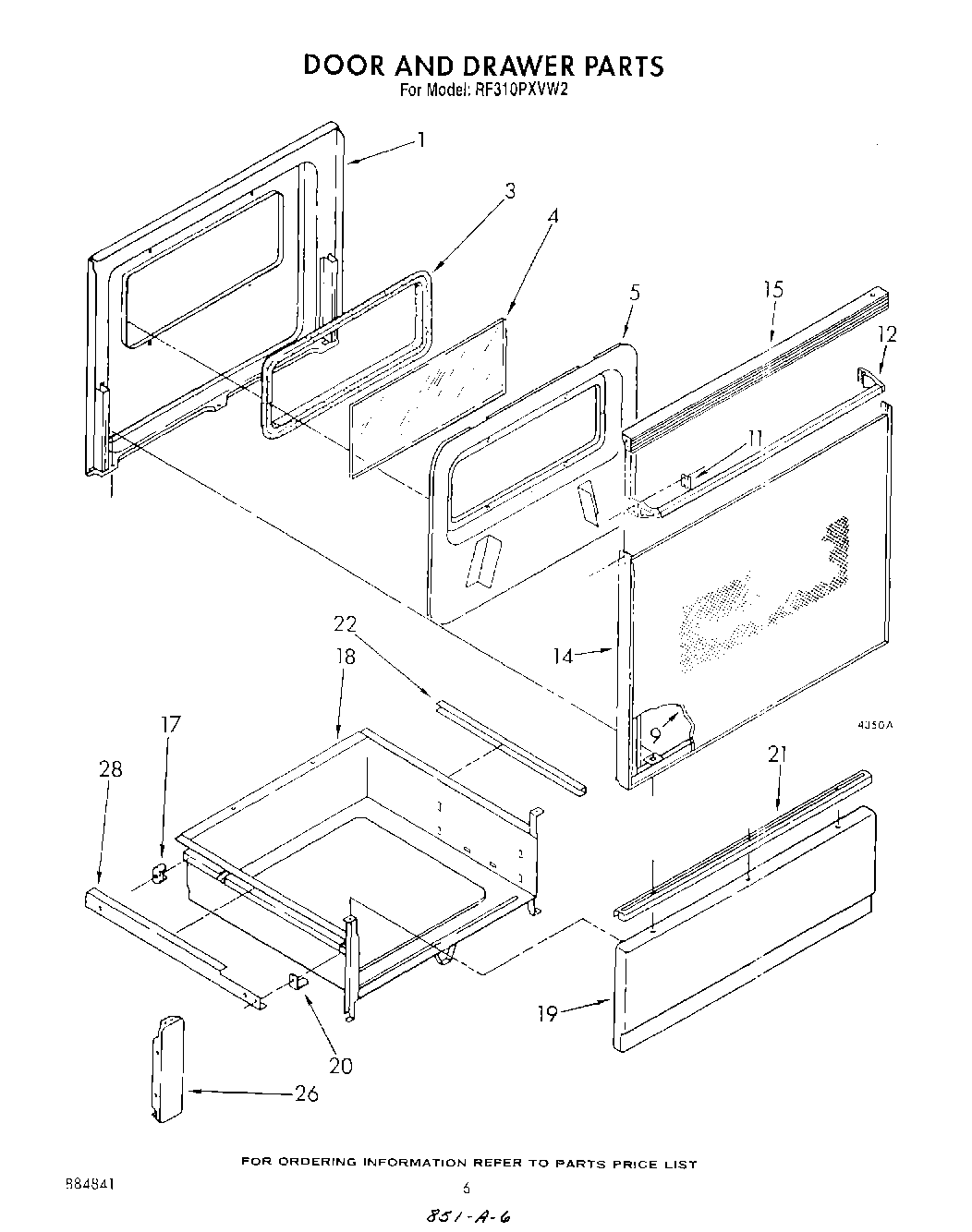

RF310PXVN2 05 – DOOR AND DRAWER

Products

PositionProduct
1Screw (3)
1Liner, Door
3Seal, Door
4Glass, Inner
5Retainer, Insulation
5Screw
9Glass, Panel (Black Model)
11Clip, Mtg (2)
12Handle, Oven Door
14WP355515 Whirlpool Screw
14Frame, Door
15Back Splash (Screw (4) 10AB x 1/2“)
15Top, Door (Black Model)
17Glide, Rear (2)
18Drawer, Utility
19Panel Drawer (White)
19Panel, Drawer (Almond)
19Panel Drawer (Harvest Gold)
19WP488787 Whirlpool Refrigerator Screw
20Glide, Front (2)
21WP488627 Whirlpool Refrigerator Screw
21Handle, Drawer
22Protector, Drawer (2)
26Bracket, Mounting (2)
28Rail R.H. (Includes Illus. 3)
28Rail L.H. (Includes Illus. 3)
28Screw, 10A x 1/2 (2) (Black)
