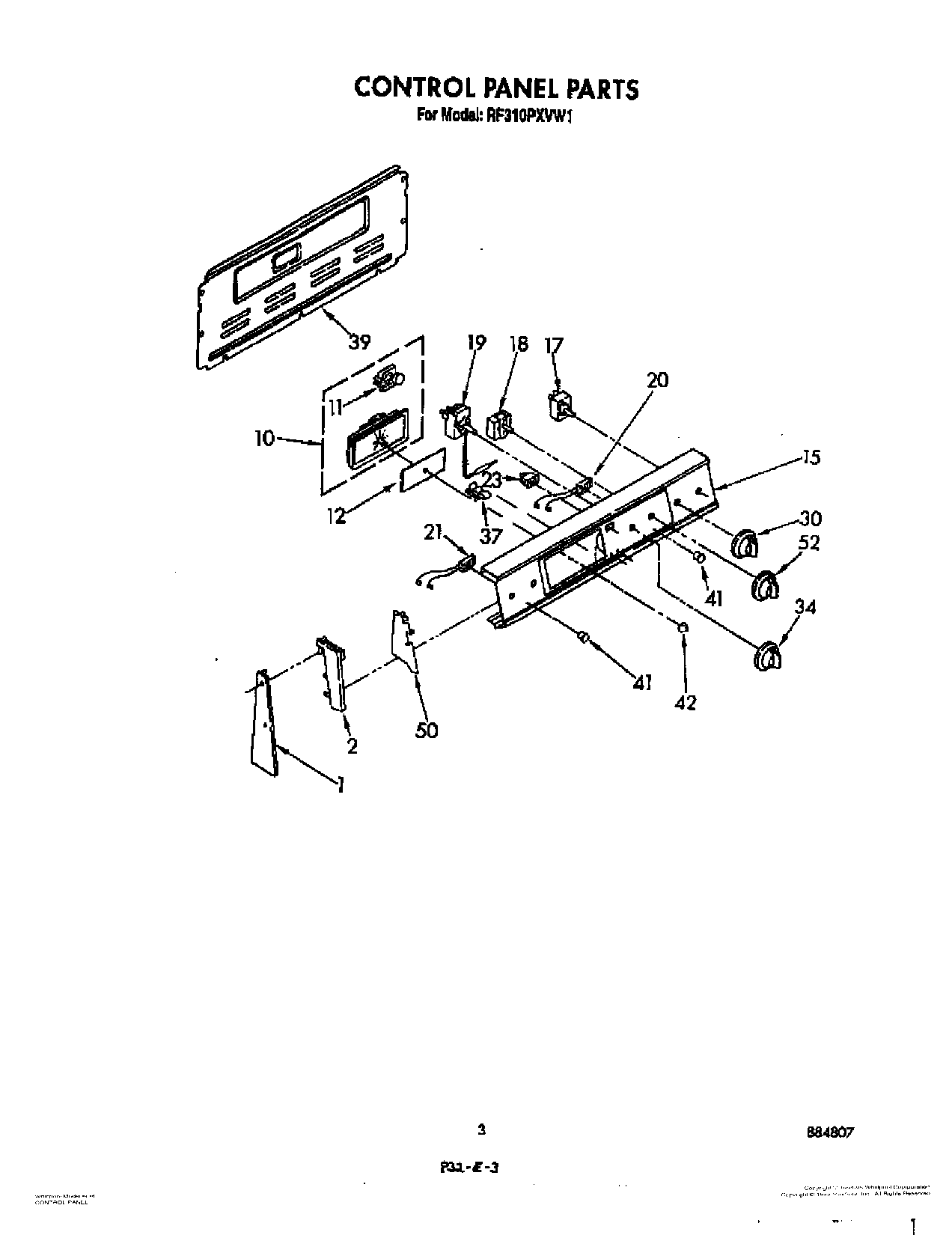

RF310PXVW1 03 – CONTROL PANEL

Products

Position	Product
	NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1	Screw 10-32×7/16“
1	Screw 10-32×1“
1	WP3390631 Whirlpool Screw
2	End Cap R.H.
2	End Cap L.H.
2	Screw,
10	Timer, Clock
11	Motor, Timer
12	Glass, Timer
15	Washer
15	Panel, Control
17	WP3149404 Whirlpool Oven Surface Element Switch
17	SWITCH-INF
18	WP486579 Whirlpool Air Conditioner Screw
18	Switch, Selector
19	Thermostat, Oven
19	WP313808 Whirlpool Screw
20	Light, Indicator (250V)
21	Light, Indicator (Surface Unit (2))
23	WP4314961 Whirlpool Lite Switch
30	WP3149983 Whirlpool Knob
34	Screw
34	Knob, Temperature
37	Clip, Tube
39	SCREW
39	Harness-Conduit Asm.
41	Lens, Amber
42	Spring (3)
42	WP3169181 Whirlpool Knob
50	WP965173 Whirlpool Dishwasher Screw
50	Shield (2)
52	Knob, Selector
53	WP688805 Whirlpool Spring Clip
