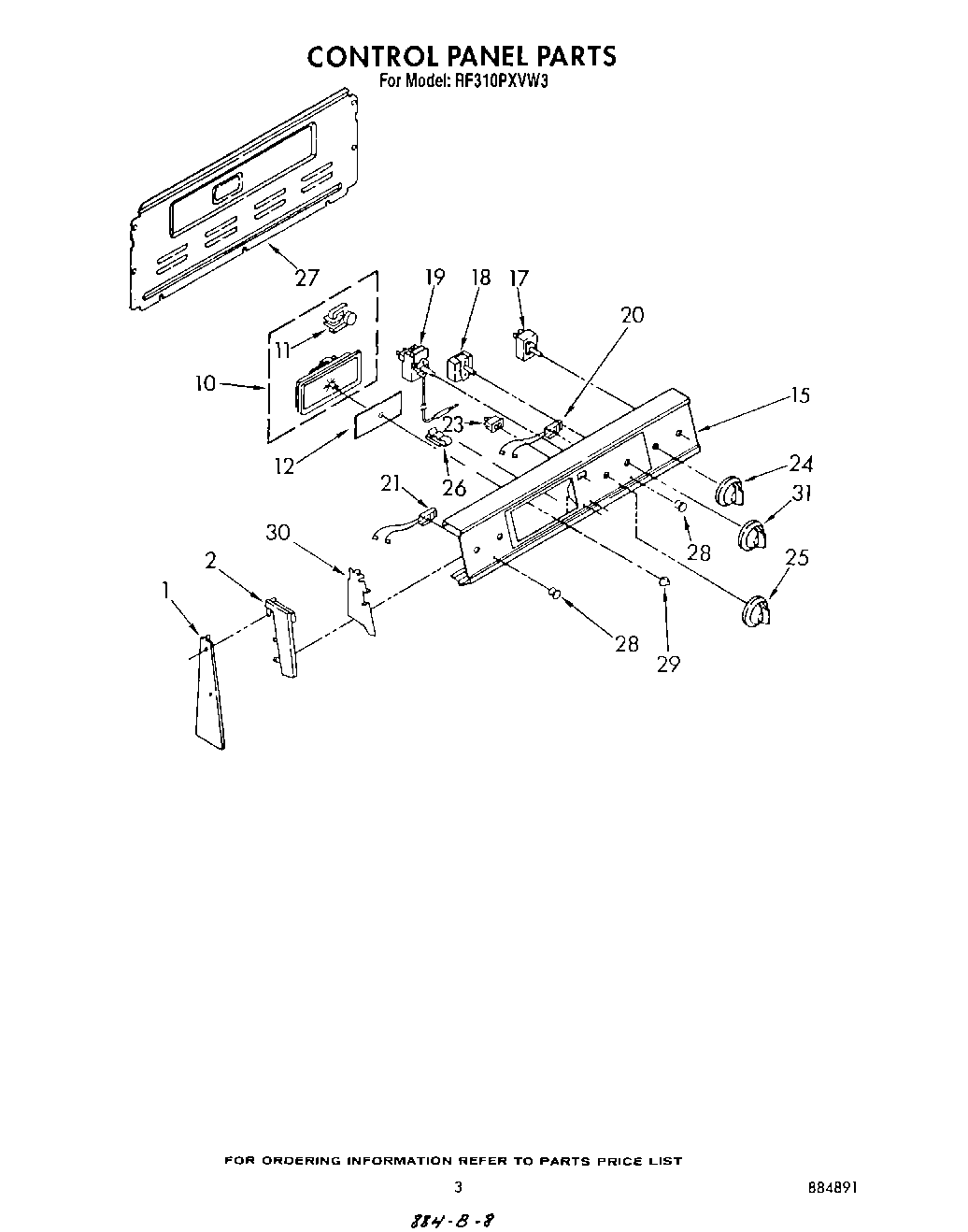

RF310PXVW3 03 – CONTROL PANEL

Products

Position	Product
1	WP3390631 Whirlpool Screw
1	Screw 10-32x7/16``
1	Screw 10-32x1``
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
10	Timer, Clock
11	Motor, Timer
12	Glass, Timer
15	Panel, Control
15	Washer
17	SWITCH-INF
17	WP3149404 Whirlpool Oven Surface Element Switch
18	WP486579 Whirlpool Air Conditioner Screw
18	Switch, Selector
19	WP313808 Whirlpool Screw
19	Thermostat, Oven
20	Light, Indicator (250V)
21	Light, Indicator (Surface Unit (2))
23	WP4314961 Whirlpool Lite Switch
24	WP3149983 Whirlpool Knob
25	Knob, Temperature
26	Clip, Tube
27	SCREW
27	Harness-Conduit Asm.
28	Lens, Amber
29	WP3169181 Whirlpool Knob
29	Spring (3)
30	Shield (2)
30	WP965173 Whirlpool Dishwasher Screw
31	Knob, Selector
