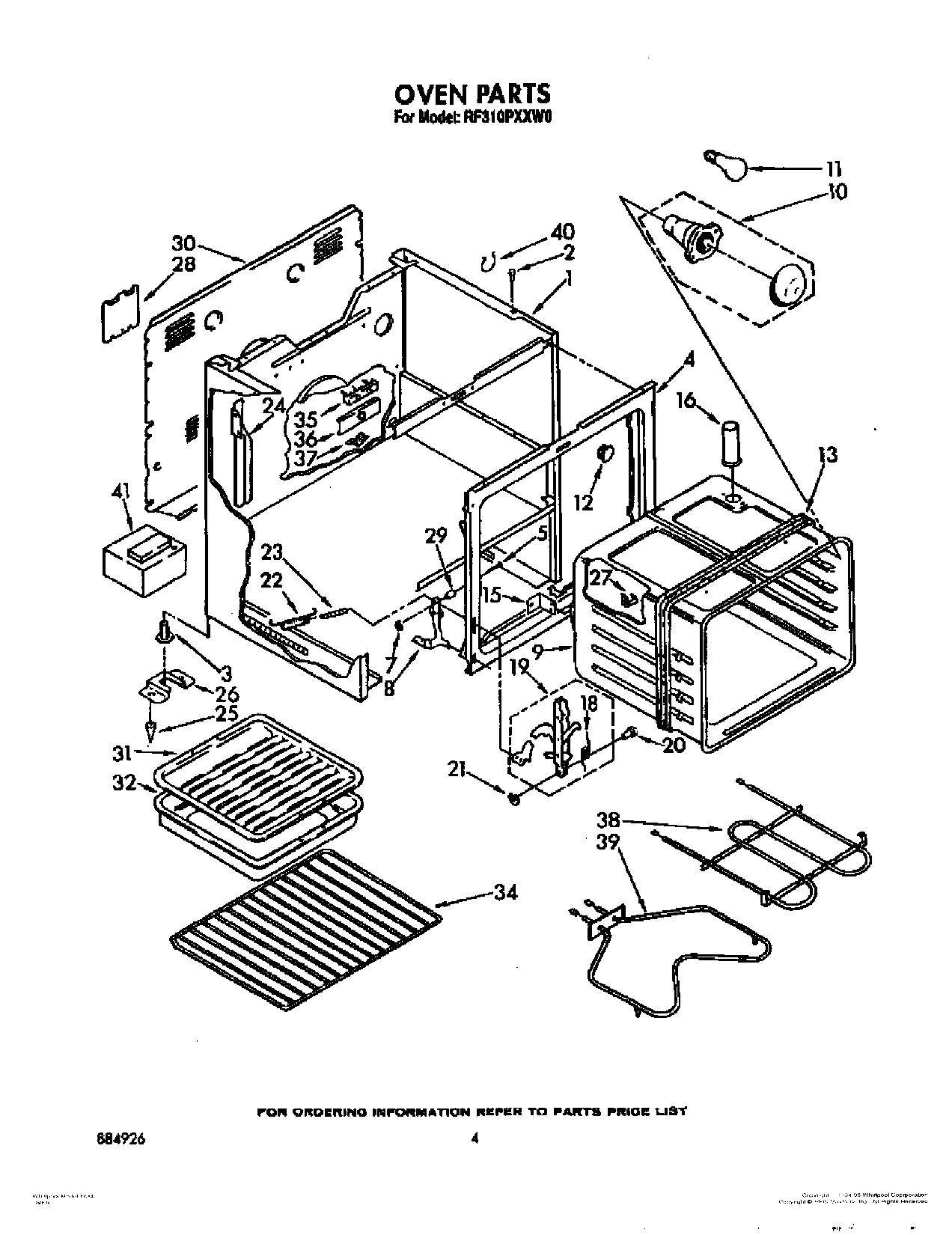

RF310PXXN0 04 – OVEN

Products

Position	Product
1	Main Chassis (White)
1	Main Chassis (Almond)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
4	Screw (Top)
5	Pin, Hinge Ear (2)
7	Pushnut (2)
8	Hinge (R.H.)
8	Hinge (L.H.)
9	Oven (30“ Conv)
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
11	RANGE ONLY 40W 120V APPL BULB
12	Plug Button
13	Heat Seal
15	Bracket, Oven (Mounting)
16	Screw, 10A x 1/2 (2) (Black)
16	Vent, Oven
18	Spring, Door Stop
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover
24	Wire Cover-Controls (Right)
25	Anchor, Plastic
26	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
26	Screw
27	98005642 Whirlpool Clip
28	Cover, Service
29	Snubber, Door (2)
30	Cover, Rear
31	4396923 Whirlpool Broil Pan Set Gray Porcelain
34	WPL 308173
35	WP8203546 Whirlpool Terminal Block
35	Screw, (2) 10-16 x 1
35	WP112432 Whirlpool Nut Assembly
36	SCREW
36	Bracket, Service
37	Clip, Ground Wire
37	WPL 308498
38	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
39	Screw (2)
39	ELMNT-BAKE
40	16515 Whirlpool Clip
41	340184 Whirlpool Screw
41	Block, Balance
