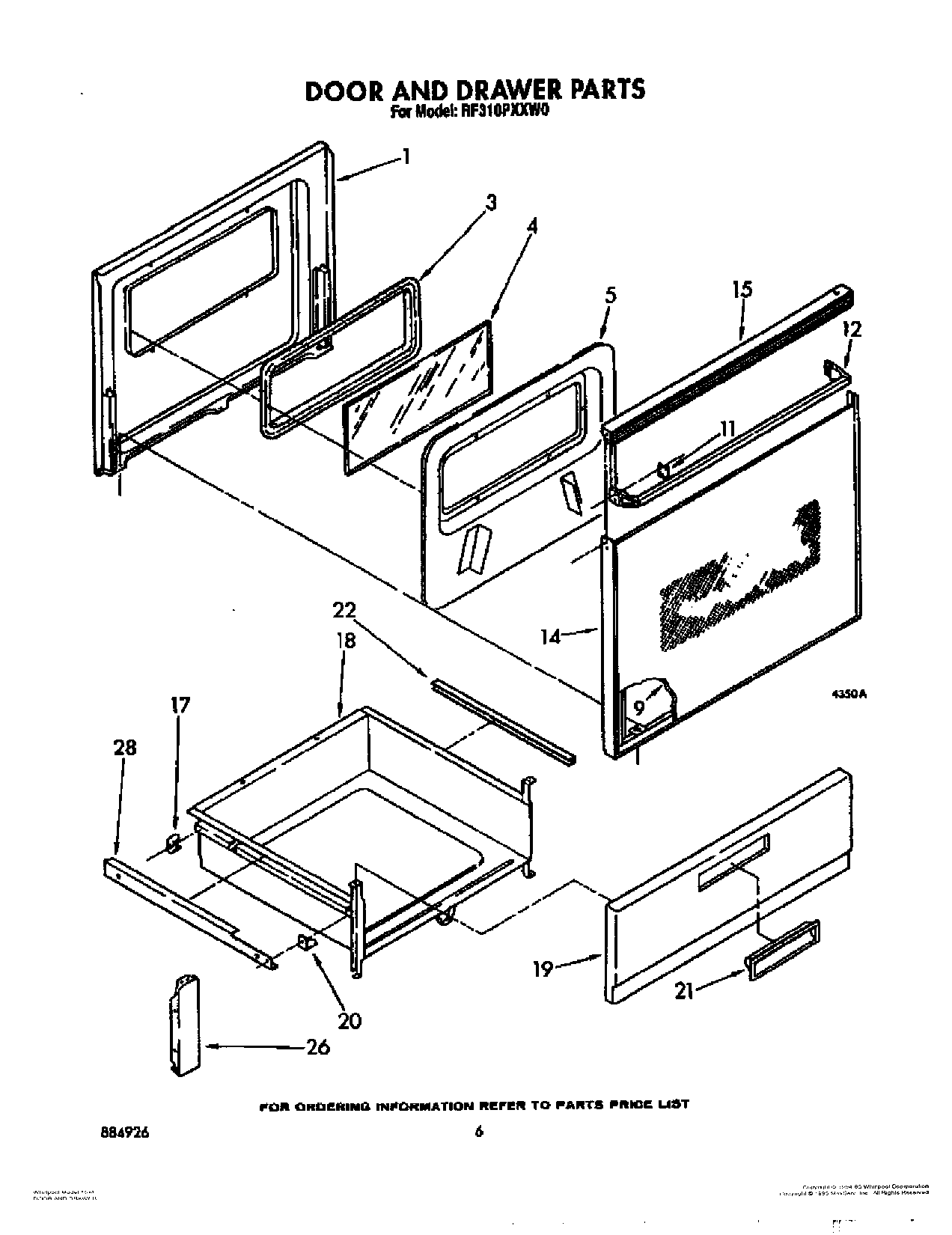

RF310PXXN0 05 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
3	Seal, Door
4	Glass, Inner
5	Retainer, Insulation
5	Screw
9	Glass, Panel (Black Model)
11	Clip, Mtg (2)
12	Handle, Oven Door
14	WP355515 Whirlpool Screw
14	Frame, Door
15	Top, Door (Black Model)
15	Back Splash (Screw (4) 10AB x 1/2“)
17	Glide, Rear (2)
18	Drawer, Utility
19	Panel, Drawer (White)
19	Panel, Drawer (Almond)
19	WP488787 Whirlpool Refrigerator Screw
20	Glide, Front (2)
21	Handle, Snap-In (White)
21	Handle, Snap-In (Almond)
22	Protector, Drawer (2)
26	Bracket, Mounting (2)
28	Rail R.H. (Includes Illus. 3)
28	Rail L.H. (Includes Illus. 3)
28	Screw, 10A x 1/2 (2) (Black)
