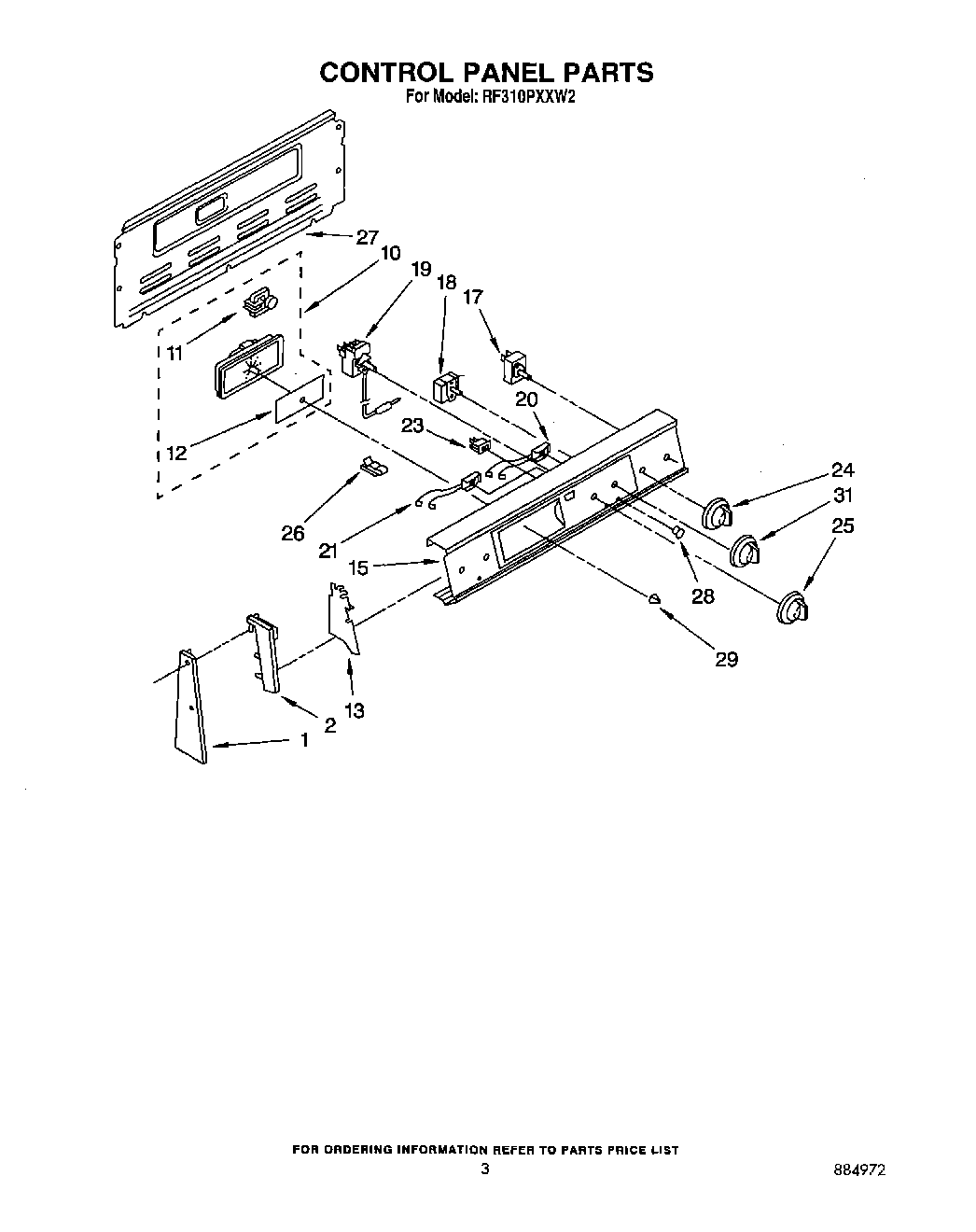

RF310PXXN2 03 – CONTROL PANEL

Products

Position	Product
1	WP3390631 Whirlpool Screw
1	Screw 10-32×7/16“
1	Screw 10-32×1“
2	Screw,
2	End Cap, R.H. (White/Almond/Gold)
2	(End Cap, L.H.) (White/Almond/Gold)
10	Timer, Clock
11	Motor, Timer
12	Glass, Timer
13	Shield (2)
13	WP965173 Whirlpool Dishwasher Screw
15	Panel, Control (White)
15	Panel, Control (Almond)
17	WP3149404 Whirlpool Oven Surface Element Switch
17	SWITCH-INF
18	Switch, Selector
18	WP486579 Whirlpool Air Conditioner Screw
19	Thermostat, Oven
19	WP313808 Whirlpool Screw
20	Light, Indicator (250V)
21	Light, Indicator (Includes No. 12) (Surface Unit On)
23	WP4314961 Whirlpool Lite Switch
24	WP3149983 Whirlpool Knob
25	Knob, Temperature
26	Clip, Tube
27	SCREW
27	Harness-Conduit Asm.
28	Lens, Amber
29	WP3169181 Whirlpool Knob
31	Knob, Selector
