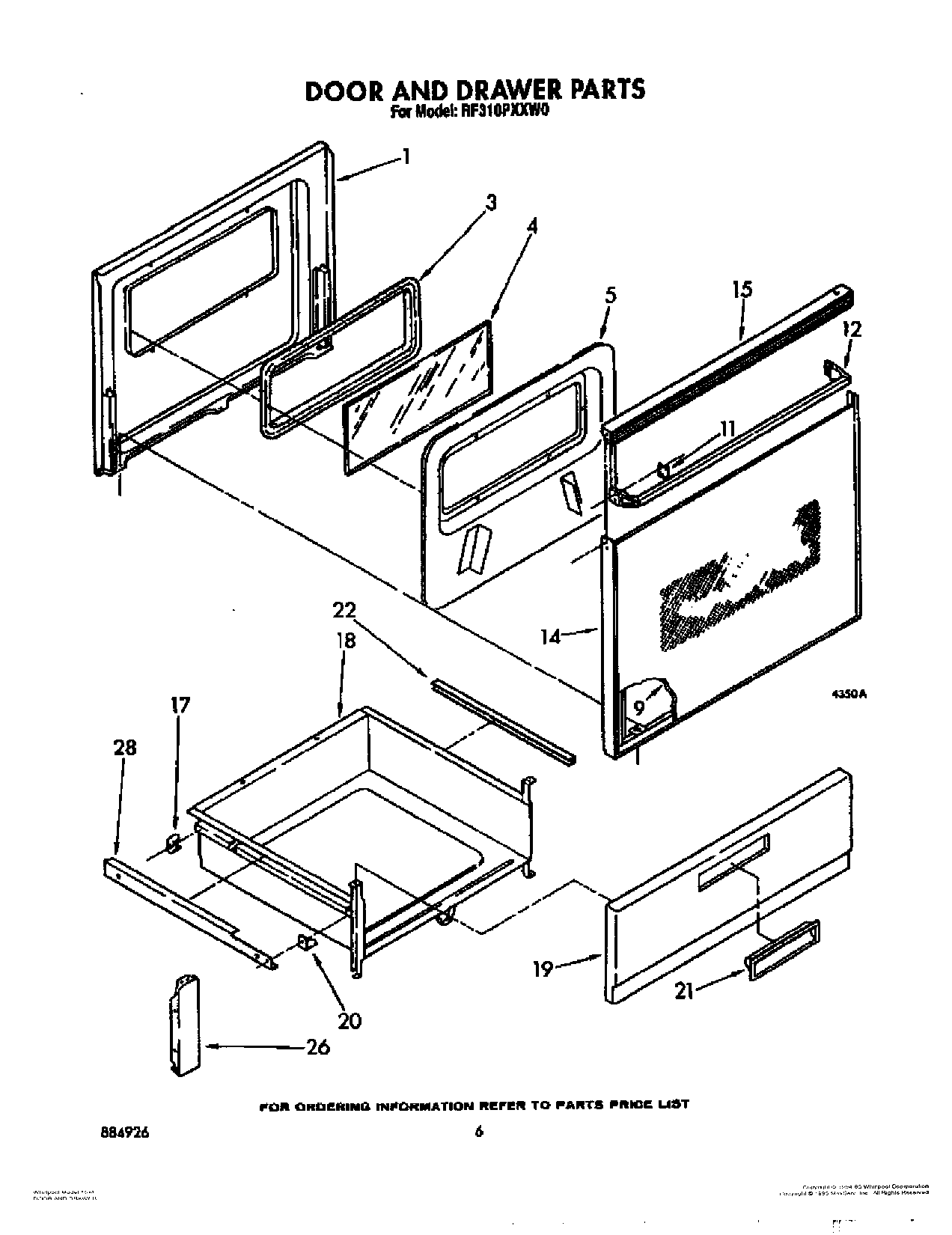

RF310PXXW0 05 – DOOR AND DRAWER

RF310PXXW0 05 – DOOR AND DRAWER

Written by

in

RF310PXXW0 05 – DOOR AND DRAWER

Products

PositionProduct
1Liner, Door
3Seal, Door
4Glass, Inner
5Retainer, Insulation
5Screw
9Glass, Panel (Black Model)
11Clip, Mtg (2)
12Handle, Oven Door
14WP355515 Whirlpool Screw
14Frame, Door
15Top, Door (Black Model)
15Back Splash (Screw (4) 10AB x 1/2“)
17Glide, Rear (2)
18Drawer, Utility
19Panel, Drawer (White)
19Panel, Drawer (Almond)
19WP488787 Whirlpool Refrigerator Screw
20Glide, Front (2)
21Handle, Snap-In (White)
21Handle, Snap-In (Almond)
22Protector, Drawer (2)
26Bracket, Mounting (2)
28Rail R.H. (Includes Illus. 3)
28Rail L.H. (Includes Illus. 3)
28Screw, 10A x 1/2 (2) (Black)
