RF310PXXW2 06 – WIRING HARNESS, LIT/OPTIONALadmin2025-04-26T11:05:21+00:00RF310PXXW2 06 – WIRING HARNESS, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Wiring Diagram |
| Guide, Use & Care |
| WPL LIT3147395 |
| WPL LIT884972 |

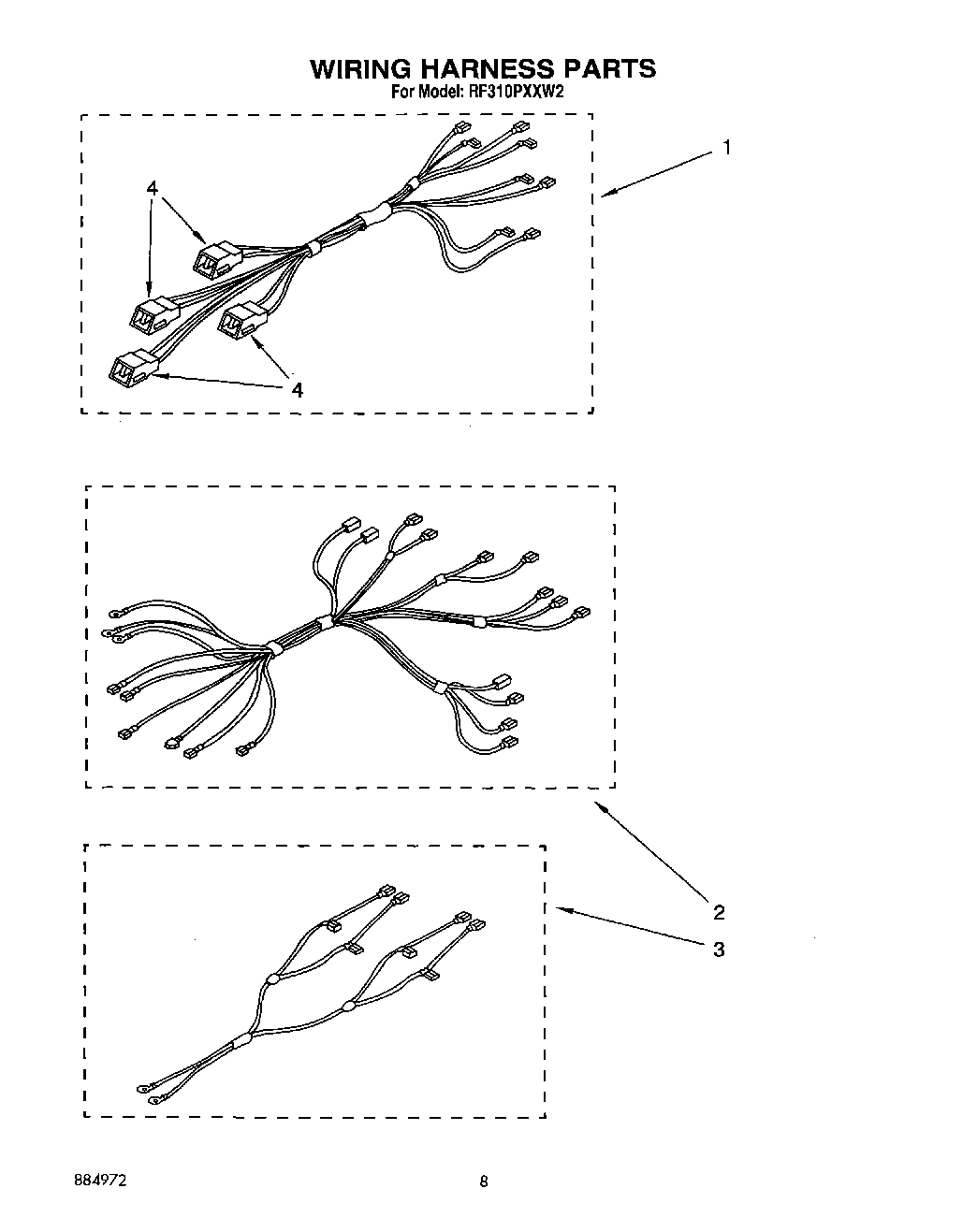

| 1 | Harness, Wire (Surface unit) |
| 2 | Harness, Wire (Oven) |
| 3 | Harness, Wire (Main) |
| 4 | Wire (14 Ga. 150 c Brown) |
| 4 | Wire (14 Ga. 150 c Green) |
| 4 | Wire (14 Ga. 200 c Brown) |
| 4 | Wire (14 Ga. 150 c Blue) |
| 4 | 242831 Whirlpool Oven Wire |
| 4 | Paint, Spray 13 Oz. (Avocado) |
| 4 | paint, spray 13 oz. (coffee) |
| 4 | Paint, Touch-Up 1/2 Oz. (Coffee) |
| 4 | Wire (14 Ga. 150 c Orange) |
| 4 | Wire (14 Ga. 150 c Yellow) |
| 4 | 18 Ga. 80~c Rating (Red) |
| 4 | 1 |
| 4 | Enamel, Coffee (1 Qt. Uncut) |
| 4 | Leveler (Thinner) (2oz.) |
| 4 | 8212471 Whirlpool Oven Paint |
| 4 | Grease |
| 4 | 72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz |
| 4 | 72109 Whirlpool Dacor Avocado Touch-Up Paint |
| 4 | 285006 Whirlpool Spray |
| 4 | Paint, Spray (13 Oz.) (Platinum) |
| 4 | Toast |
| 4 | Golden Harvest (Uncut) |
| 4 | Golden Harvest |
| 4 | 72113 Whirlpool Touch-Up Paint |
| 4 | Almond (Uncut) |
| 4 | WP72107 Whirlpool Touchup |
| 4 | 799344 Whirlpool Refrigerator Paint |
| 4 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 4 | 350956 Whirlpool Spray Assembly |
| 4 | Enamal, Toast (1 Qt. Uncut) |
| 4 | BURNER RECEPTACLE KIT |
| 4 | Wire, 25`` Roll (White 14 GA.) |
| 4 | Wire, 25` Roll (Red 14 Ga.) |
| 4 | Wire, 25` Roll (Black 14 Ga.) |
| 4 | FOIL, ALUMINUM OVEN (18`` X 25 ) |
| 4 | WPW10208653 Whirlpool Insulation |
| 4 | WPL 799832 |
| 4 | 511873 Whirlpool Refrigerator Paint |
| 4 | 350942 Whirlpool Spray Paint |
| 4 | WPL 72112 |
| 4 | Platinum (Uncut) |
| 4 | 350930 Whirlpool White Spray Paint |
