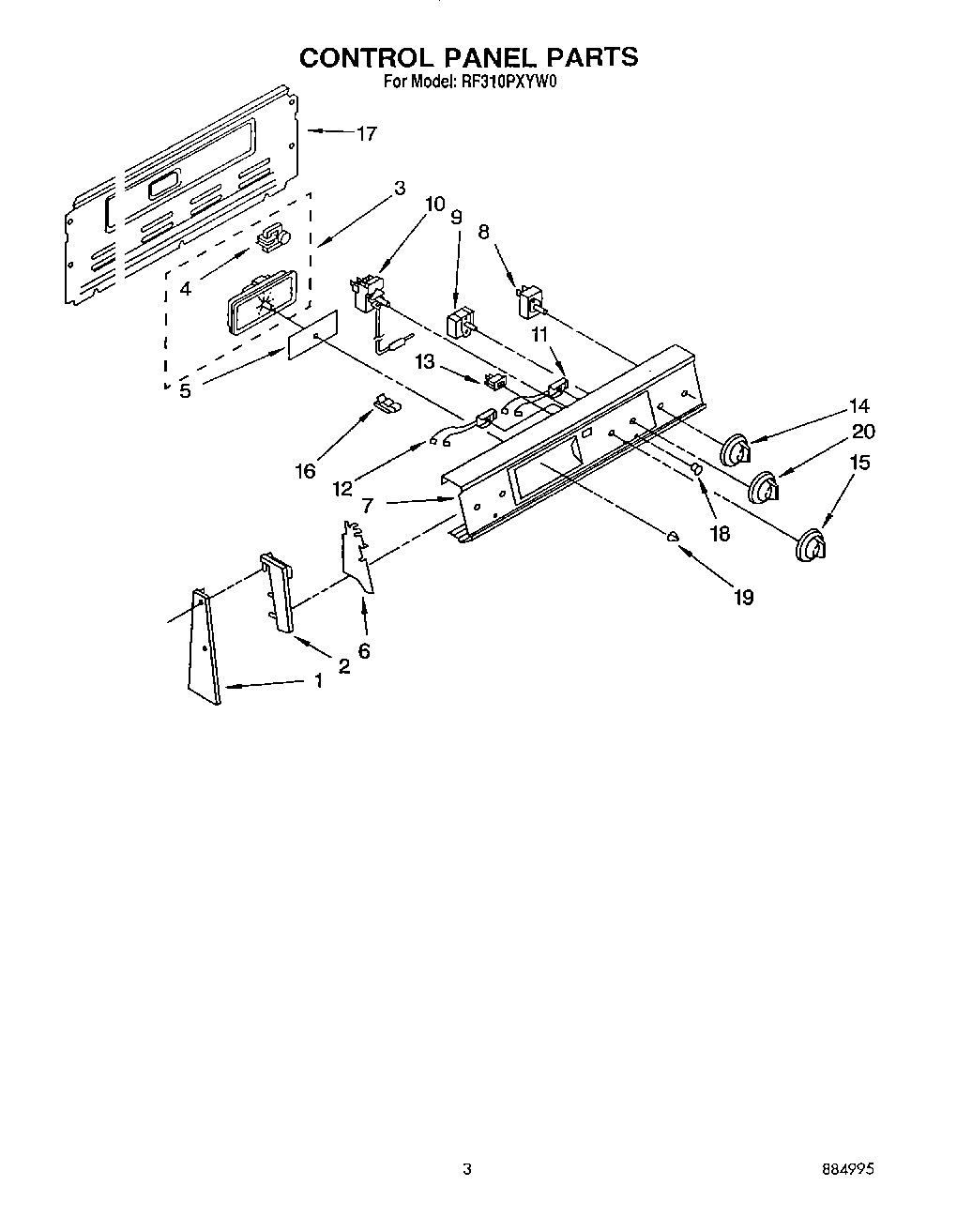

RF310PXYN0 03 – CONTROL PANEL

Products

Position	Product
1	WP3390631 Whirlpool Screw
1	Screw 10-32×7/16“
1	Screw 10-32×1“
2	End Cap, R.H. (White/Almond/Gold)
2	End Cap L.H.
2	End Cap, R.H. (White/Almond/Gold)
2	Screw,
2	End Cap R.H.
3	Timer, Clock (Designer White)
3	Timer, Clock
4	Motor, Timer
5	Glass, Timer
6	WP965173 Whirlpool Dishwasher Screw
6	Shield (2)
7	Panel, Control (Designer White Mdl)
7	Panel, Control (White Mdl.)
8	SWITCH-INF
8	WP3149404 Whirlpool Oven Surface Element Switch
9	WP486579 Whirlpool Air Conditioner Screw
9	Switch, Selector
10	Thermostat, Oven
10	WP313808 Whirlpool Screw
11	Light, Indicator (250V)
12	Light, Indicator (Surface Unit On)
13	WP4314961 Whirlpool Lite Switch
13	3149360 Whirlpool Light Switch
14	Knob, (4) Infinite Switch (Designer Mdl)
14	Knob, (4) Infinite Switch (White/Almond/Gold)
15	Knob, Thermostat
15	Knob, Temperature (Designer Mdl)
16	Clip, Tube
17	Harness-Conduit Asm.
17	SCREW
18	Lens, Amber
19	WP3169181 Whirlpool Knob
20	Knob, Selector (Designer Mdl)
20	Knob, Selector (White/Almond/Gold)
