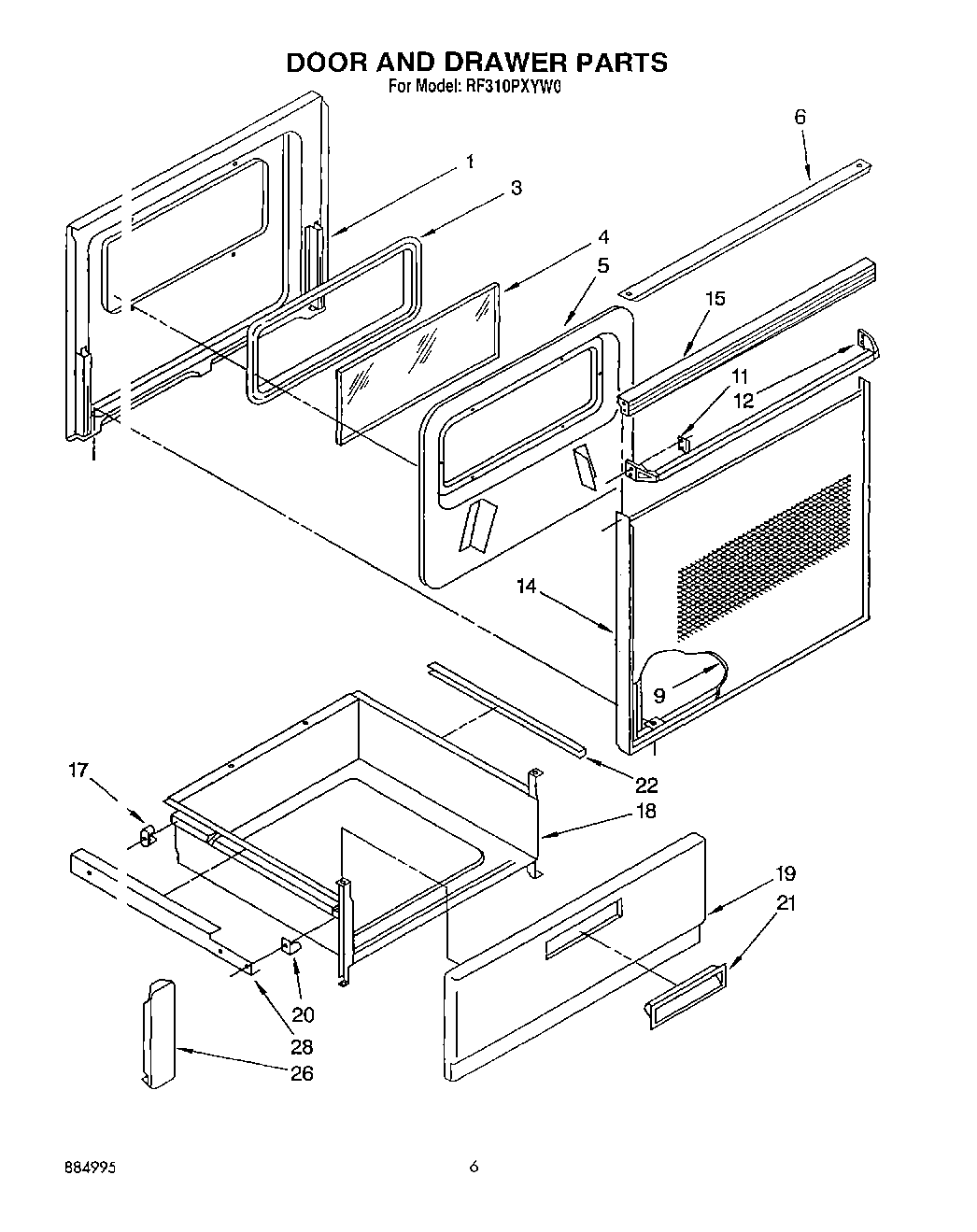

RF310PXYN0 05 – DOOR AND DRAWER

Products

PositionProduct
1Liner, Door
3Seal, Door
4Glass, Inner
5Screw
5Retainer, Insulation
6WP308685 Whirlpool Microwave Screw
6Cap, Top
9Glass, Panel (Black Model)
9Glass, Panel (White)
11Clip, Mtg (2)
12Handle, Door (White)
12Handle, Oven Door
14WP355515 Whirlpool Screw
14Frame, Door
15Back Splash (Screw (4) 10AB x 1/2“)
15Top, Door (White Model)
15Top, Door (Black Model)
17Glide, Rear (2)
18Drawer, Utility
19Panel, Drawer (White)
19Panel, Drawer (Almond)
19WP488787 Whirlpool Refrigerator Screw
20Glide, Front (2)
21Handle, Snap-In (White)
21Handle, Snap-In (Almond)
22Protector, Drawer (2)
26Bracket, Mounting (2)
28Rail R.H. (Includes Illus. 3)
28Rail L.H. (Includes Illus. 3)
28Screw, 10A x 1/2 (2) (Black)
