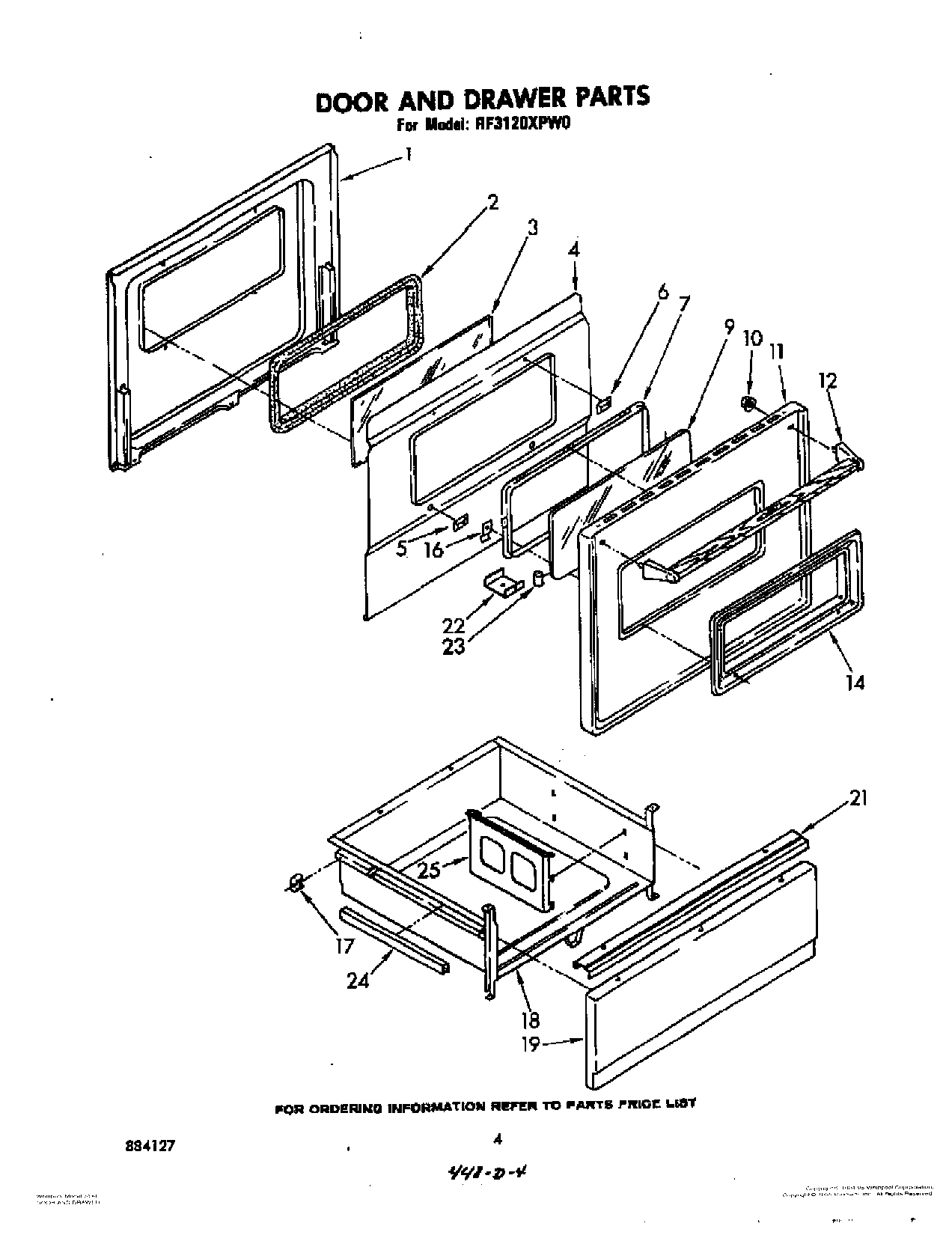

RF3120XPW0 04 – DOOR AND DRAWERadmin2025-04-26T11:07:31+00:00RF3120XPW0 04 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Screw |
| 1 | Screw (3) |
| 1 | Liner, Door |
| 2 | seal, pano glass |
| 3 | glass, inner 30`` |
| 4 | baffle, insulation |
| 6 | spacer, insulation baffle (4) |
| 7 | Retainer, Glass |
| 9 | Hinge-Lt. or Rt. |
| 9 | Glass, Outer |
| 10 | WP308499 Whirlpool Nut |
| 11 | Panel, Door (White) |
| 12 | Handle, Black Oven Door |
| 14 | Frame, Window |
| 16 | Clip, Frame |
| 17 | Glide, Rear (2) |
| 18 | Drawer, Utility |
| 19 | Panel Drawer (White) |
| 19 | WP488787 Whirlpool Refrigerator Screw |
| 21 | Handle, Drawer |
| 21 | WP488627 Whirlpool Refrigerator Screw |
| 22 | Screw, 10A x 1/2 (2) (Black) |
| 22 | Spacer, Baffle (2) |
| 23 | Channel, Rubber (4) |
| 24 | Protector, Drawer (2) |
| 25 | Rack, Literature |
