RF313PXPT0 02 – COOKTOP

Products

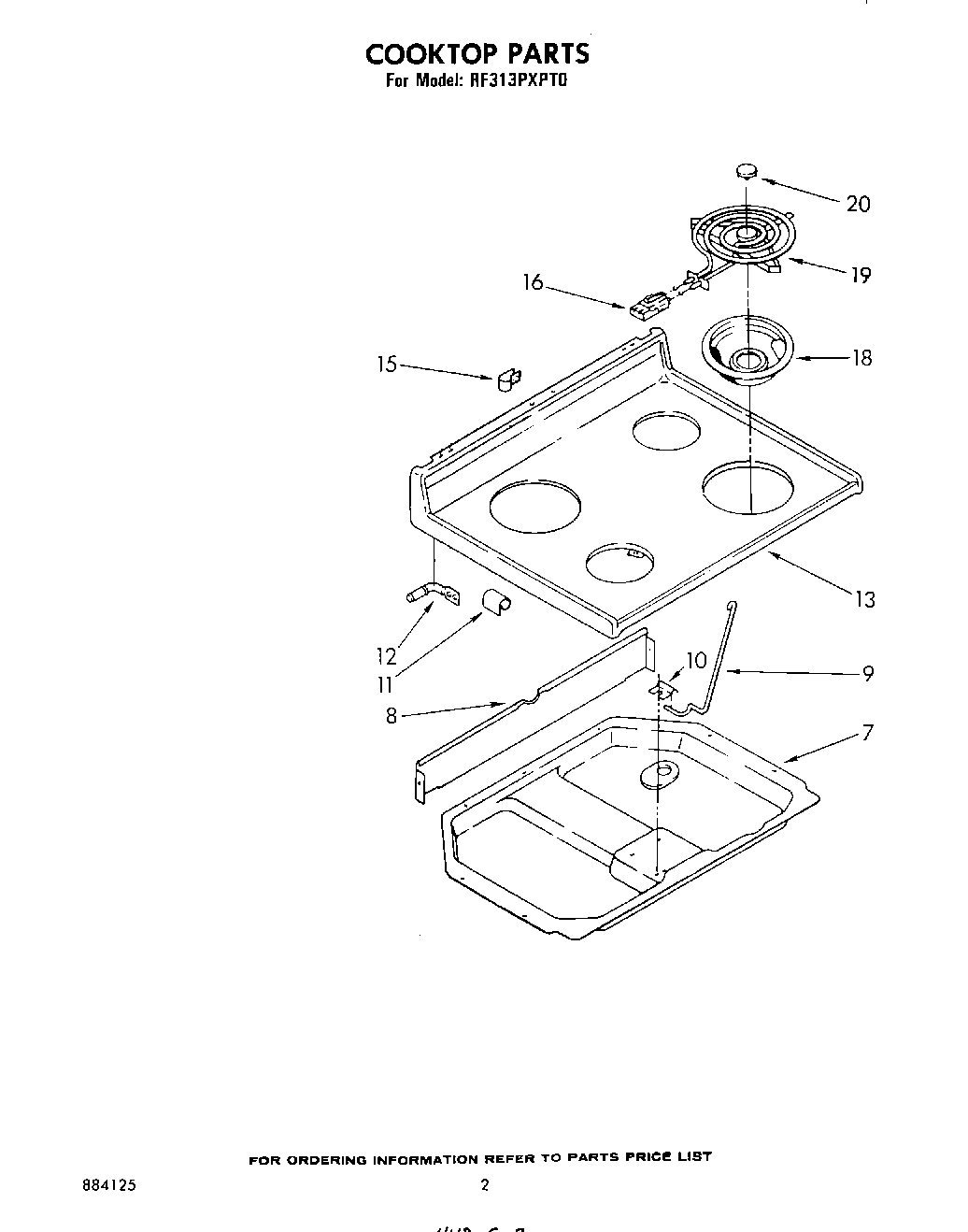

PositionProduct
WP660533 Whirlpool Oven 8" Surface Element
7Burner Box
8Shield, Wiring
9Rod, Cooktop
10WP3390631 Whirlpool Screw
10Retainer, Cooktop
11Bracket, Cooktop (2)
12Pin, Cooktop (2)
13Cooktop (Chrome)
15SCREW
15WP308605 Whirlpool Refrigerator Clamp
16BURNER RECEPTACLE KIT
16WP313808 Whirlpool Screw
18WPW10196406 Whirlpool 6" Chrome Drip Bowl
18DRIP BOWL 8" W/HOLE CHROME
19WP660532 Whirlpool Oven Surface Element
20Medallion (4)
