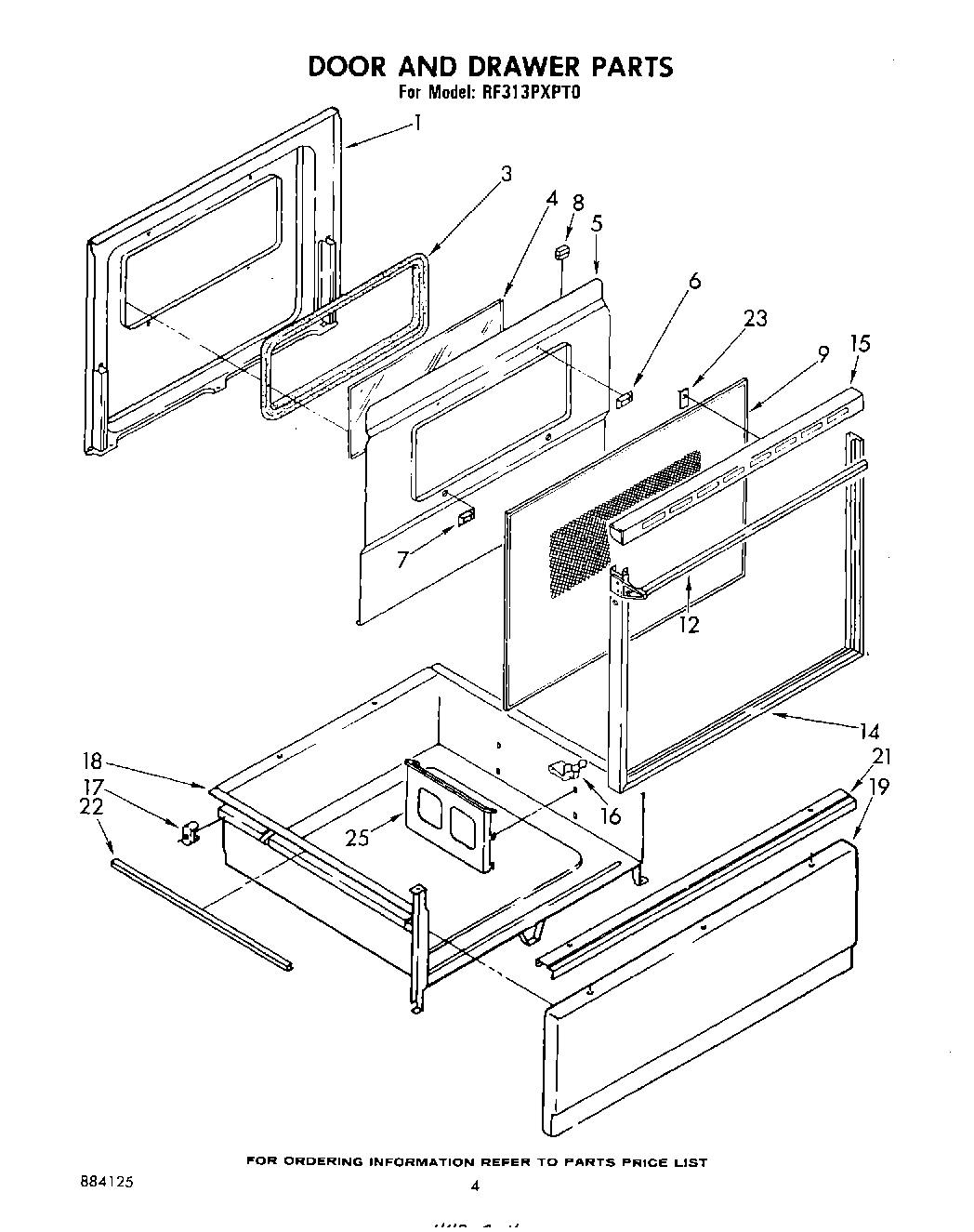

RF313PXPT0 04 – DOOR AND DRAWER

RF313PXPT0 04 – DOOR AND DRAWER

Written by

in

RF313PXPT0 04 – DOOR AND DRAWER

Products

PositionProduct
1screw (3)
1Screw (3)
1Liner, Door
3seal, pano glass
4glass, inner 30“
5baffle, insulation
7spacer, insulation baffle (4)
8Channel, Rubber (4)
9Glass, Outer
12WP355515 Whirlpool Screw
12Handle, Oven Door
14frame, door 30“
15Top, Door Frame
15WP90296 Whirlpool Clip
16clip, glass (10)
17Glide, Rear (2)
17Screw, 10A x 1/2 (2) (Black)
18Drawer, Utility
19Panel Drawer (Black)
19WP488787 Whirlpool Refrigerator Screw
21Handle, Drawer
21WP488627 Whirlpool Refrigerator Screw
22Protector, Drawer (2)
23hold down, glass (2)
25Rack, Literature
