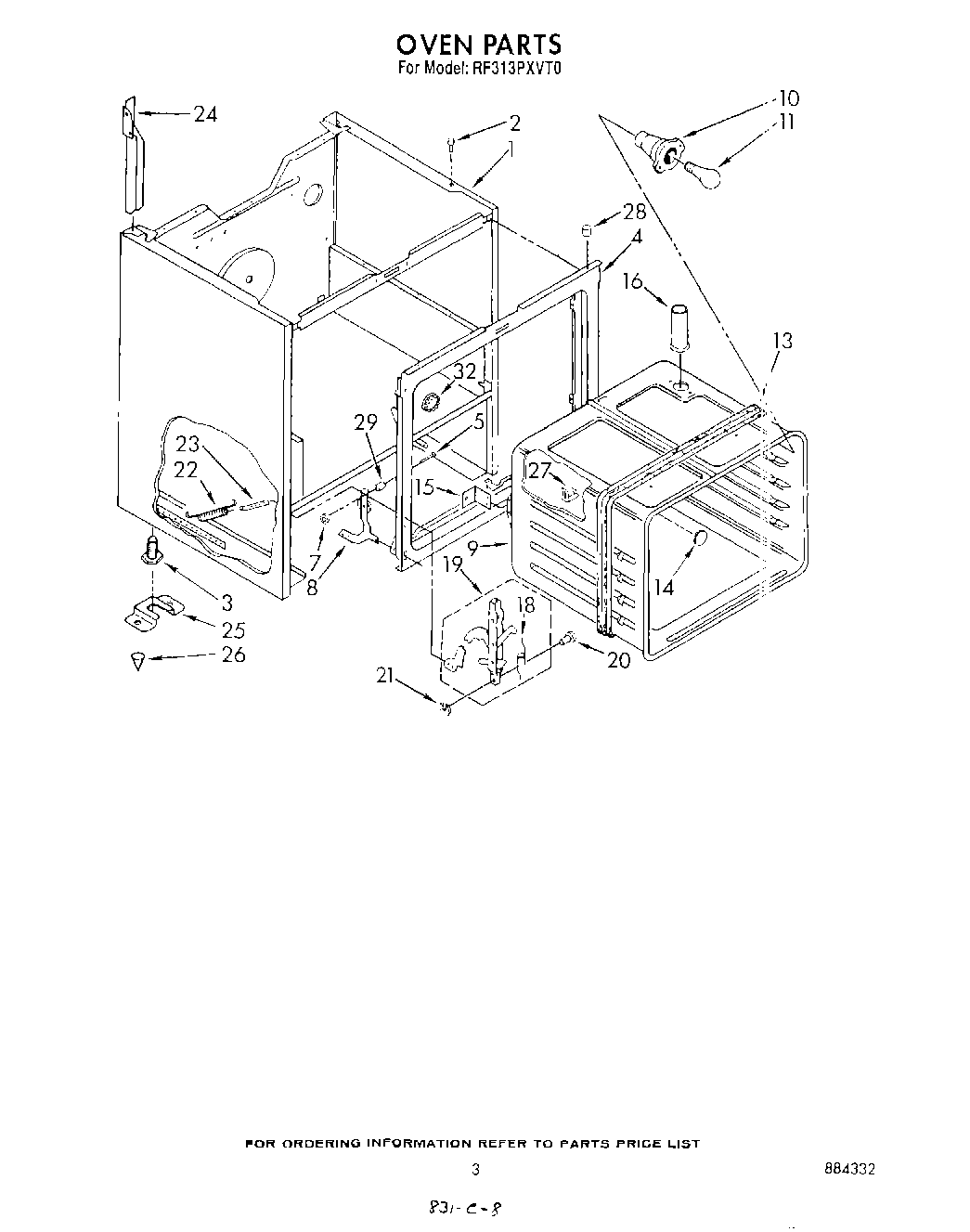

RF313PXVT0 03 – OVEN

Products

Position	Product
	Screw (10-12 x .875)
1	Main Chassis (Platinum)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
5	Pin, Hinge Ear (2)
7	Pushnut (2)
8	Hinge (L.H.)
8	Hinge (R.H.)
9	Screw (3)
9	WPL 329000
10	Socket, Oven Light
10	Socket, Oven Light (Alt.)
10	Socket, Oven Light (Alt.)
11	RANGE ONLY 40W 120V APPL BULB
13	Heat Seal
14	Plug Button
15	Bracket, Oven (Mounting)
16	Vent, Oven
18	Spring, Door Stop
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover
24	Wire Cover-Controls (Right)
24	SCREW
25	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
26	Anchor, Plastic
27	98005642 Whirlpool Clip
28	locator, cooktop
29	Snubber, Door (2)
32	Plug Button
