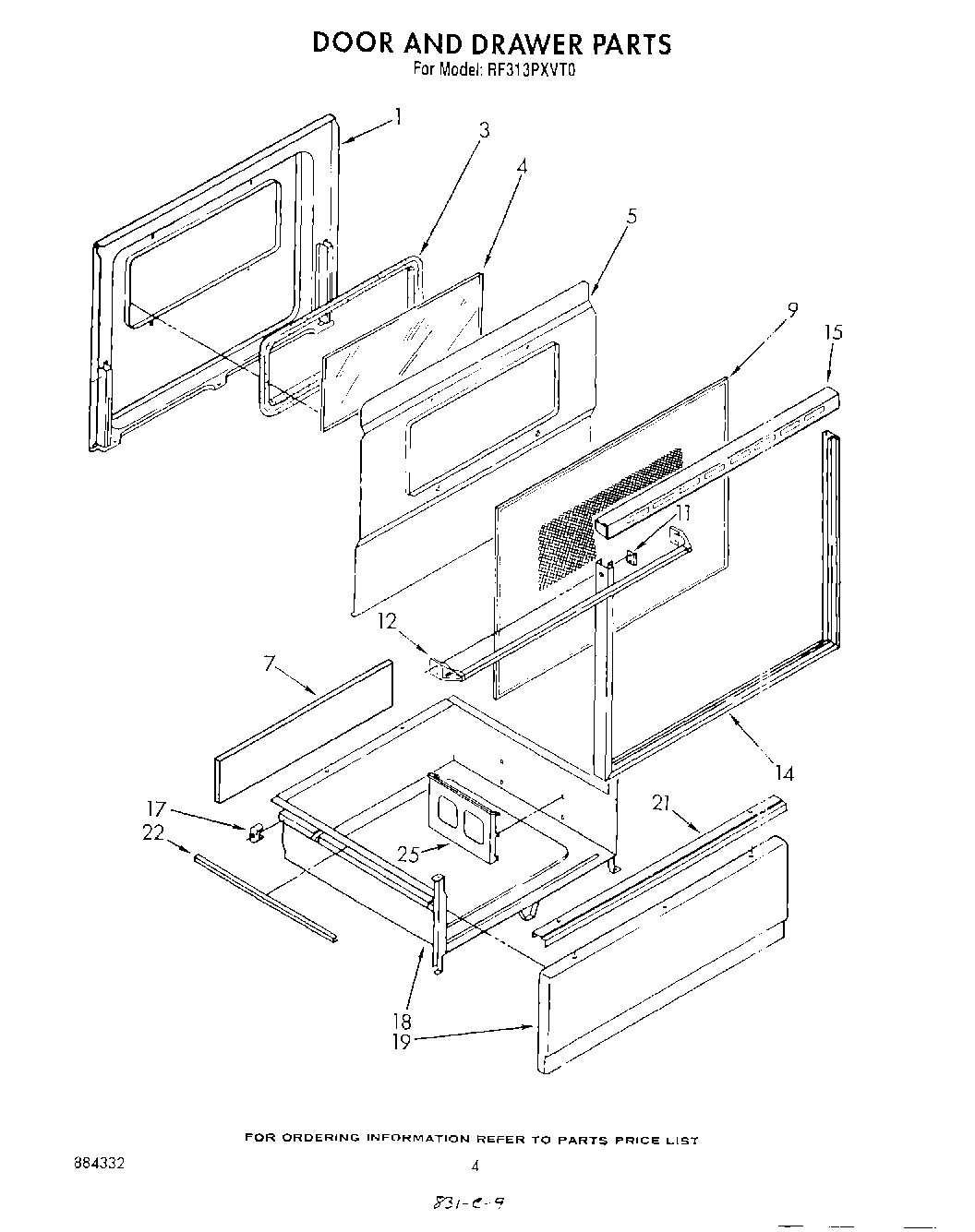

RF313PXVT0 04 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
1	Screw (3)
3	Seal, Door
4	Glass, Inner
5	Screw
5	Retainer, Insulation
7	Pad, Sound
9	Glass, Panel (Black Model)
11	Clip, Mtg (2)
12	WP355515 Whirlpool Screw
12	Handle, Oven Door
14	Frame, Door
15	Top, Door (Black Model)
17	Screw, 10A x 1/2 (2) (Black)
17	Glide, Rear (2)
18	Drawer, Utility
19	Panel Drawer (Black)
19	WP488787 Whirlpool Refrigerator Screw
21	Handle, Drawer
21	WP488627 Whirlpool Refrigerator Screw
22	Protector, Drawer (2)
25	Rack, Literature
