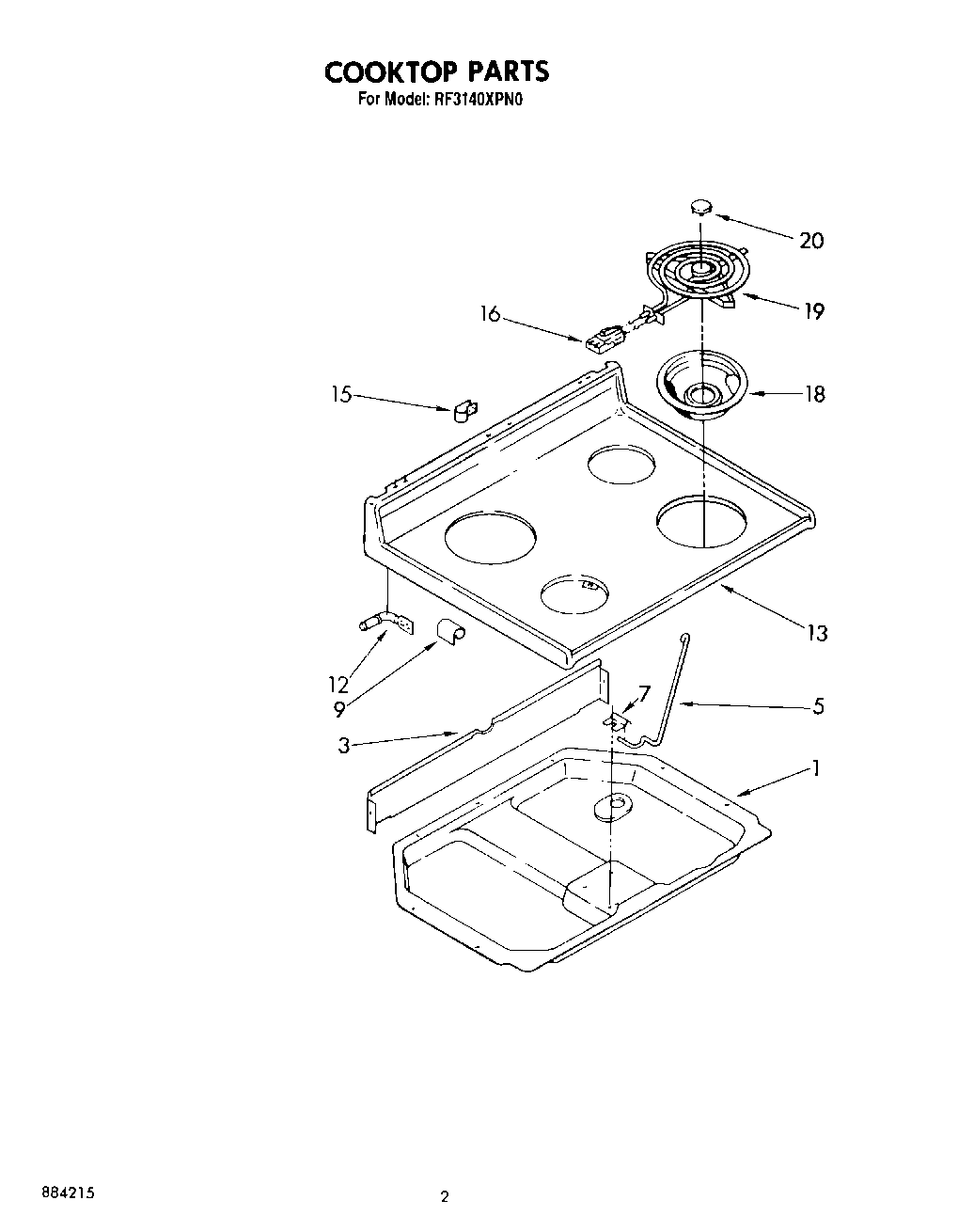

RF3140XPN0 02 – COOKTOP

Products

Position	Product
1	Burner Box
3	Shield, Wiring
5	Rod, Cooktop
7	WP3390631 Whirlpool Screw
7	Retainer, Cooktop
9	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
13	Cooktop (Almond)
15	WP308605 Whirlpool Refrigerator Clamp
15	SCREW
16	WP313808 Whirlpool Screw
16	BURNER RECEPTACLE KIT
18	WPW10196406 Whirlpool 6" Chrome Drip Bowl
18	DRIP BOWL 8" W/HOLE CHROME
19	WP660533 Whirlpool Oven 8" Surface Element
19	Unit, Surface 6“ L.F. & R.R.
20	Medallion (4)
