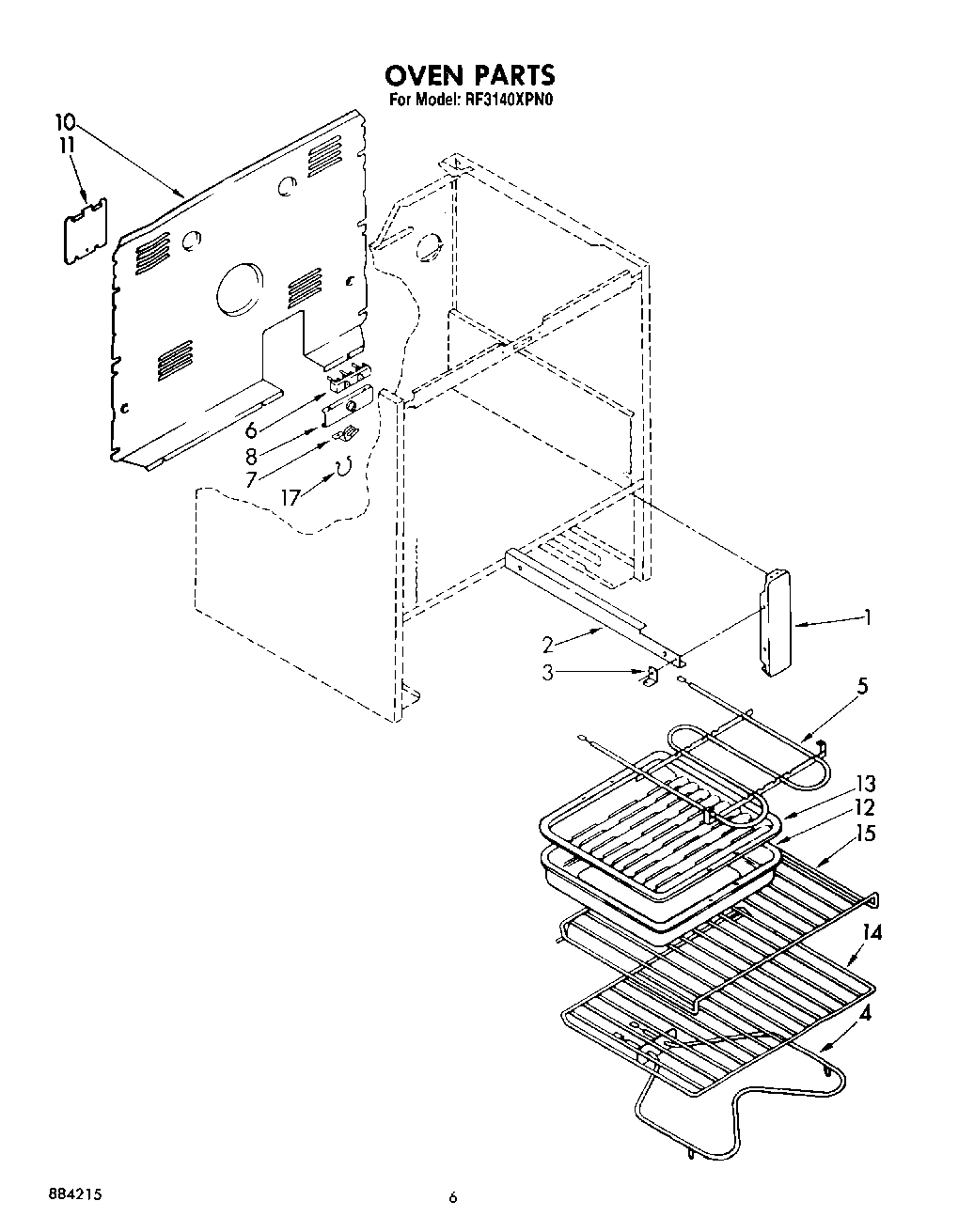

RF3140XPN0 05 – OVEN, LIT/OPTIONAL

RF3140XPN0 05 – OVEN, LIT/OPTIONAL

Written by

in

RF3140XPN0 05 – OVEN, LIT/OPTIONAL

Products

Position	Product
	WPL LIT313358
	WPL LIT313288
	WPL LIT313473
	WPL LIT884215
1	Bracket, Mounting (2)
2	rail l.h. (includes illus. 3)
2	Rail R.H. (Includes Illus. 3)
2	Screw, 10A x 1/2 (2) (Black)
3	Glide, Front (2)
4	WP312309 Whirlpool Bake Element
4	ELMNT-BAKE
5	Screw, 10-32 x 5/8 (4)
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5	Unit, Broil (208V)
6	WP8203546 Whirlpool Terminal Block
6	WP112432 Whirlpool Nut Assembly
6	Screw, (2) 10-16 x 1
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
10	Cover, Rear
11	SCREW
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
17	Rotisserie Kit (RCK 81)
17	8212471 Whirlpool Oven Paint
17	Wire (14 Ga. 150 c Yellow)
17	Wire (14 Ga. 150 c Orange)
17	Wire (12 Ga. 150 c Black)
17	18 Ga. 80~c Rating (Red)
17	Wire (14 Ga. 200 c Brown)
17	1
17	350930 Whirlpool White Spray Paint
17	Enamel, Coffee (1 Qt. Uncut)
17	Enamel, New Avocado (1 Qt. Uncut)
17	Grease
17	Leveler (Thinner) (2oz.)
17	Wire (14 Ga. 150 c Green)
17	Wire (14 Ga. 150 c Brown)
17	WPL 72112
17	Platinum (Uncut)
17	Enamal, Toast (1 Qt. Uncut)
17	Paint, Spray (13 Oz.) (Platinum)
17	Toast
17	Golden Harvest (Uncut)
17	Golden Harvest
17	72113 Whirlpool Touch-Up Paint
17	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
17	Almond (Uncut)
17	WP72107 Whirlpool Touchup
17	799344 Whirlpool Refrigerator Paint
17	72017 Whirlpool Appliance Touch-Up Paint White
17	350942 Whirlpool Spray Paint
17	511873 Whirlpool Refrigerator Paint
17	WPL 799832
17	Wire (14 Ga. 150 c Blue)
17	242831 Whirlpool Oven Wire
17	72109 Whirlpool Dacor Avocado Touch-Up Paint
17	16515 Whirlpool Clip
17	Paint, Spray 13 Oz. (Avocado)
17	paint, spray 13 oz. (coffee)
17	Paint, Touch-Up 1/2 Oz. (Coffee)
17	285006 Whirlpool Spray
17	Wire, 25“ Roll (White 14 GA.)
17	Wire, 25` Roll (Red 14 Ga.)
17	Wire, 25` Roll (Black 14 Ga.)
17	FOIL, ALUMINUM OVEN (18“ X 25 )
17	WPW10208653 Whirlpool Insulation
17	350956 Whirlpool Spray Assembly
