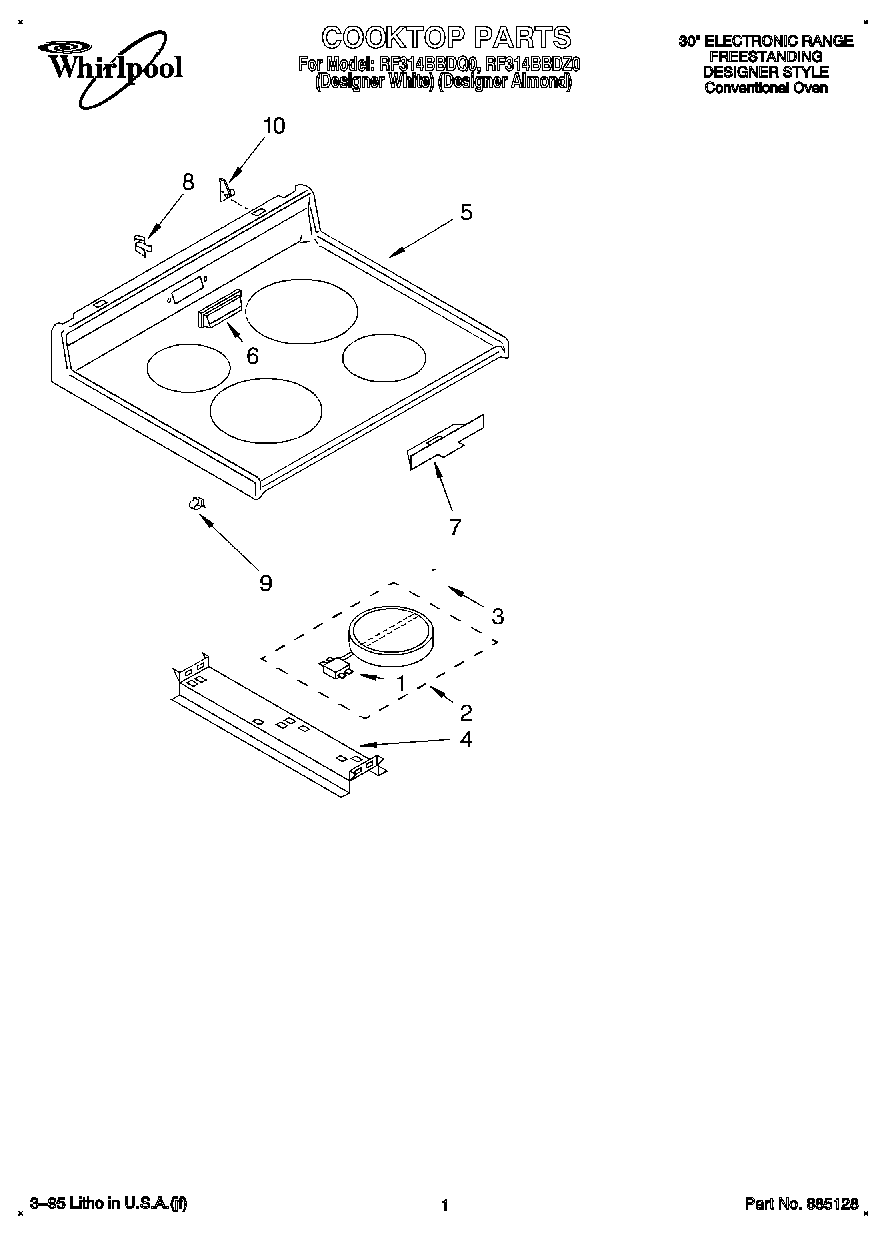

RF314BBDQ0 01 – COOKTOP, LITERATURE

Products

Position	Product
	Instructions, Installation
	WPL LIT3150400
	Wiring Diagram
	Use and Care Guide
1	Limiter, Temp. (2100W, LF-RR)
1	Switch, Limit (Use W/3183200 Element)
2	Element, Surface (1700W Right Front)
2	Element, Surface (2100W Right Rear)
3	WP486754 Whirlpool Compactor Screw
3	Spring, Locator
4	Bracket, (2) Element Support
4	Back Splash (Screw (4) 10AB x 1/2“)
5	Cooktop (Designer White Mdl)
5	Cooktop Asm. (Almond Mdl.)
5	WP308685 Whirlpool Microwave Screw
6	Cover, Vent (White)
6	cover, vent (almond)
7	Shield, Probe
8	Clip, Vent Cover
9	Clip
10	Bracket, Cooktop (Left)
10	Bracket, Cooktop (Right)
10	SCREW
