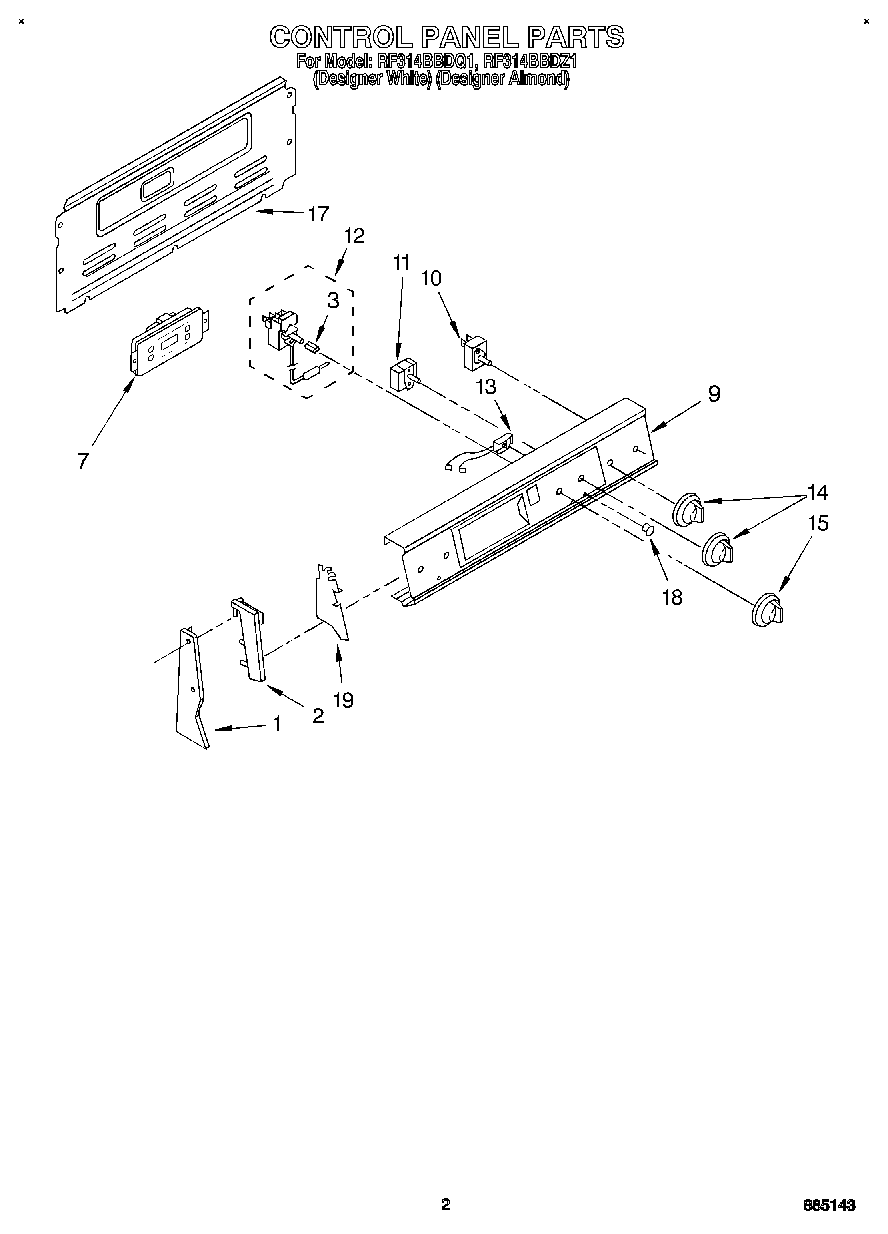

RF314BBDQ1 02 – CONTROL PANELadmin2025-04-26T11:05:34+00:00RF314BBDQ1 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | End Trim (R.H. Almond) |
| 1 | End Trim (R.H. White) |
| 1 | End Trim (L.H. White) |
| 1 | End Trim (L.H. Almond) |
| 2 | End Cap L.H. (Designer Almond) |
| 2 | End Cap R.H. (Designer Almond) |
| 2 | End Cap L.H. (Designer White) |
| 2 | End Cap R.H. (Designer White) |
| 3 | WPL 3169525 |
| 7 | Timer, Clock (Designer White) |
| 7 | Timer, Clock (Designer Almond) |
| 7 | Screw |
| 9 | Panel, Control (Almond) |
| 9 | Panel, Control (Almond Screw, (4)) |
| 9 | Panel, Control (White) |
| 9 | Panel, Control (White) |
| 10 | WP3148952 Whirlpool Oven Infinite Switch |
| 10 | SWITCH-INF |
| 11 | Screw, 8-32 x 3/16 (2) |
| 11 | WP3188987 Whirlpool Oven Switch |
| 12 | WP313808 Whirlpool Screw |
| 12 | Thermostat, 0ven |
| 13 | Indicator Light (1) |
| 13 | Indicator Light (Surface Unit On) |
| 13 | Light, Indicator (250V) |
| 14 | WPL 3188723 |
| 14 | WP3196232 Whirlpool Knob |
| 15 | Knob, Thermostat (Designer Almond) |
| 15 | Knob, Thermostat (Designer White) |
| 17 | SCREW |
| 17 | Rear Cover Contr |
| 18 | Lens, Amber |
| 19 | WP965173 Whirlpool Dishwasher Screw |
| 19 | Shield (2) |
