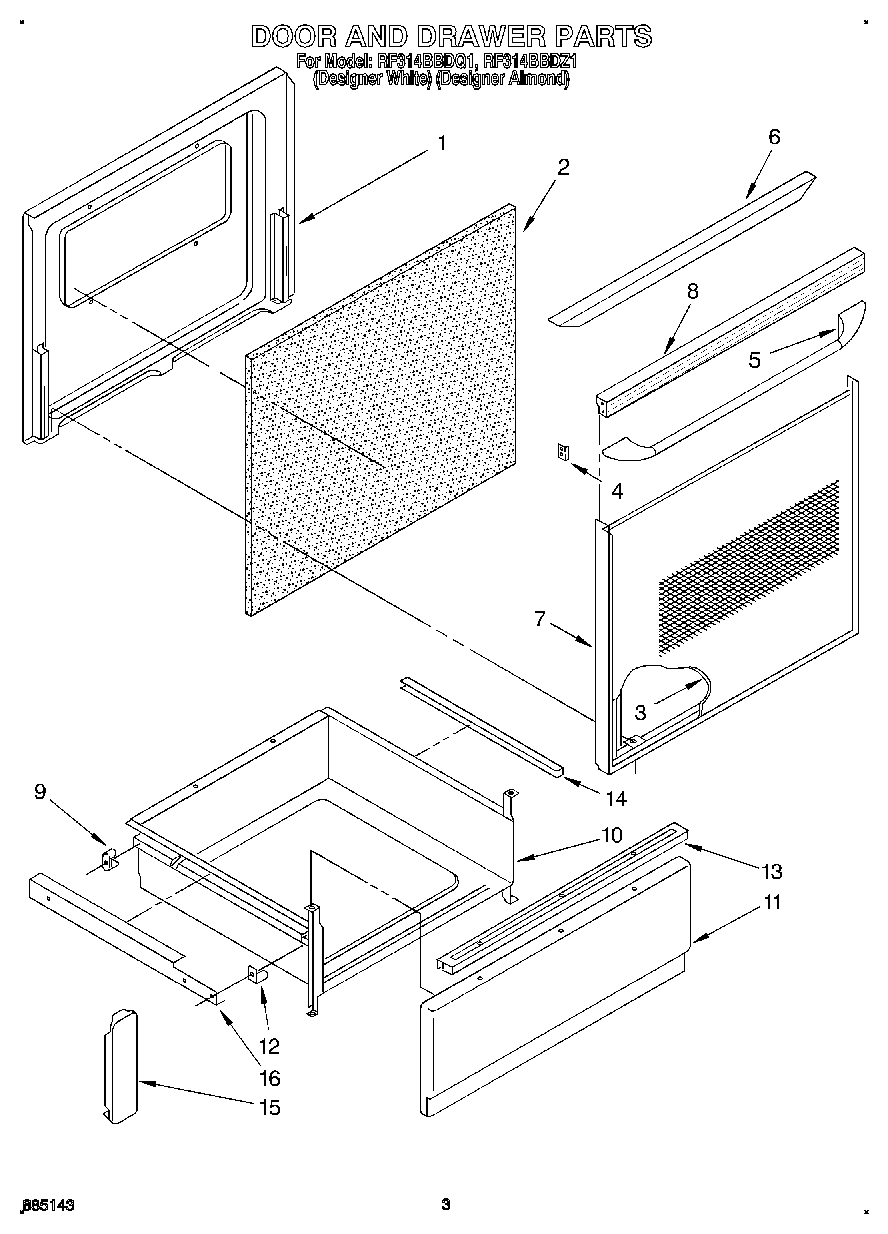

RF314BBDQ1 03 – DOOR AND DRAWERadmin2025-04-26T11:05:55+00:00RF314BBDQ1 03 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Liner, Door |
| 2 | WPW10208653 Whirlpool Insulation |
| 3 | Outer Glass (Almond) |
| 3 | Outer Glass Panel (Designer White) |
| 4 | Clip, Mtg (2) |
| 5 | Handle, Door (White) |
| 5 | Handle, Door (Almond) |
| 5 | WP999367 Whirlpool Refrigerator Screw |
| 6 | Top, Door Frame (Screw (2)) |
| 6 | Top, Door Frame (Screw (2)) |
| 6 | Cap, Top (Designer White) |
| 6 | Cap, Top (Designer Almond) |
| 7 | Handle, Door (Screw) |
| 7 | Frame, Door (Screw (4)) |
| 7 | Frame, Door (White) |
| 7 | Frame, Door (Almond) |
| 7 | Screw |
| 8 | Top, Door Frame (Designer Almond) |
| 8 | Top, Door Frame (Designer White) |
| 9 | Glide, Rear (2) |
| 9 | WP308685 Whirlpool Microwave Screw |
| 10 | Drawer, Utility |
| 11 | Panel Drawer (Almond) |
| 11 | Panel Drawer (White) |
| 12 | WP488627 Whirlpool Refrigerator Screw |
| 12 | Glide, Front (2) |
| 13 | Handle, Drawer (Almond) |
| 13 | Handle, Drawer (White) |
| 14 | Protector, Drawer (2) |
| 15 | Bracket, Mounting (2) |
| 16 | Rail R.H. (Includes Illus. 3) |
| 16 | Rail L.H. (Includes Illus. 3) |
| 16 | Screw, 10A x 1/2 (2) (Black) |
