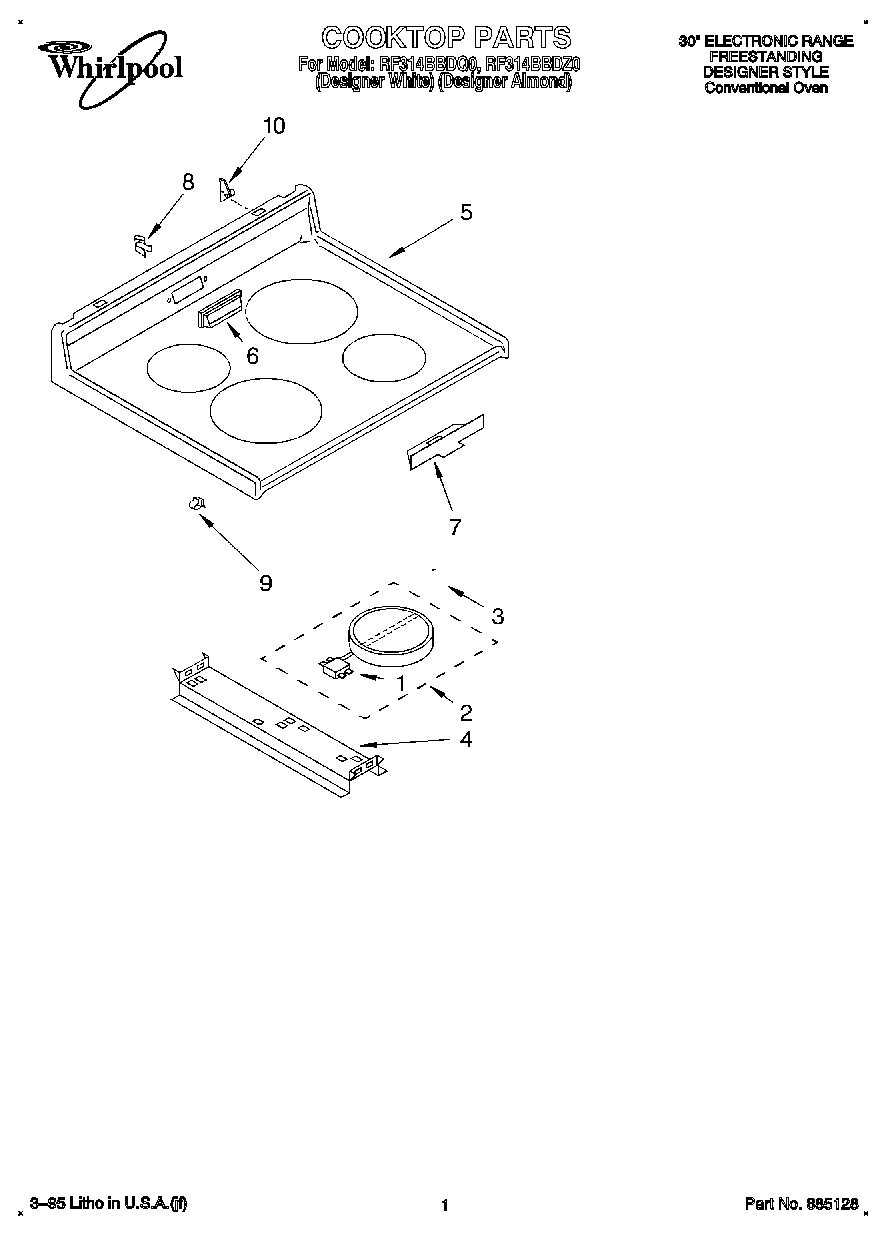

RF314BBDZ0 01 – COOKTOP, LITERATUREadmin2025-04-26T11:06:14+00:00RF314BBDZ0 01 – COOKTOP, LITERATURE
Products
| Position | Product |
|---|
| Instructions, Installation |
| WPL LIT3150400 |
| Wiring Diagram |
| Use and Care Guide |
| 1 | Limiter, Temp. (2100W, LF-RR) |
| 1 | Switch, Limit (Use W/3183200 Element) |
| 2 | Element, Surface (1700W Right Front) |
| 2 | Element, Surface (2100W Right Rear) |
| 3 | WP486754 Whirlpool Compactor Screw |
| 3 | Spring, Locator |
| 4 | Bracket, (2) Element Support |
| 4 | Back Splash (Screw (4) 10AB x 1/2``) |
| 5 | Cooktop (Designer White Mdl) |
| 5 | Cooktop Asm. (Almond Mdl.) |
| 5 | WP308685 Whirlpool Microwave Screw |
| 6 | Cover, Vent (White) |
| 6 | cover, vent (almond) |
| 7 | Shield, Probe |
| 8 | Clip, Vent Cover |
| 9 | Clip |
| 10 | Bracket, Cooktop (Left) |
| 10 | Bracket, Cooktop (Right) |
| 10 | SCREW |
