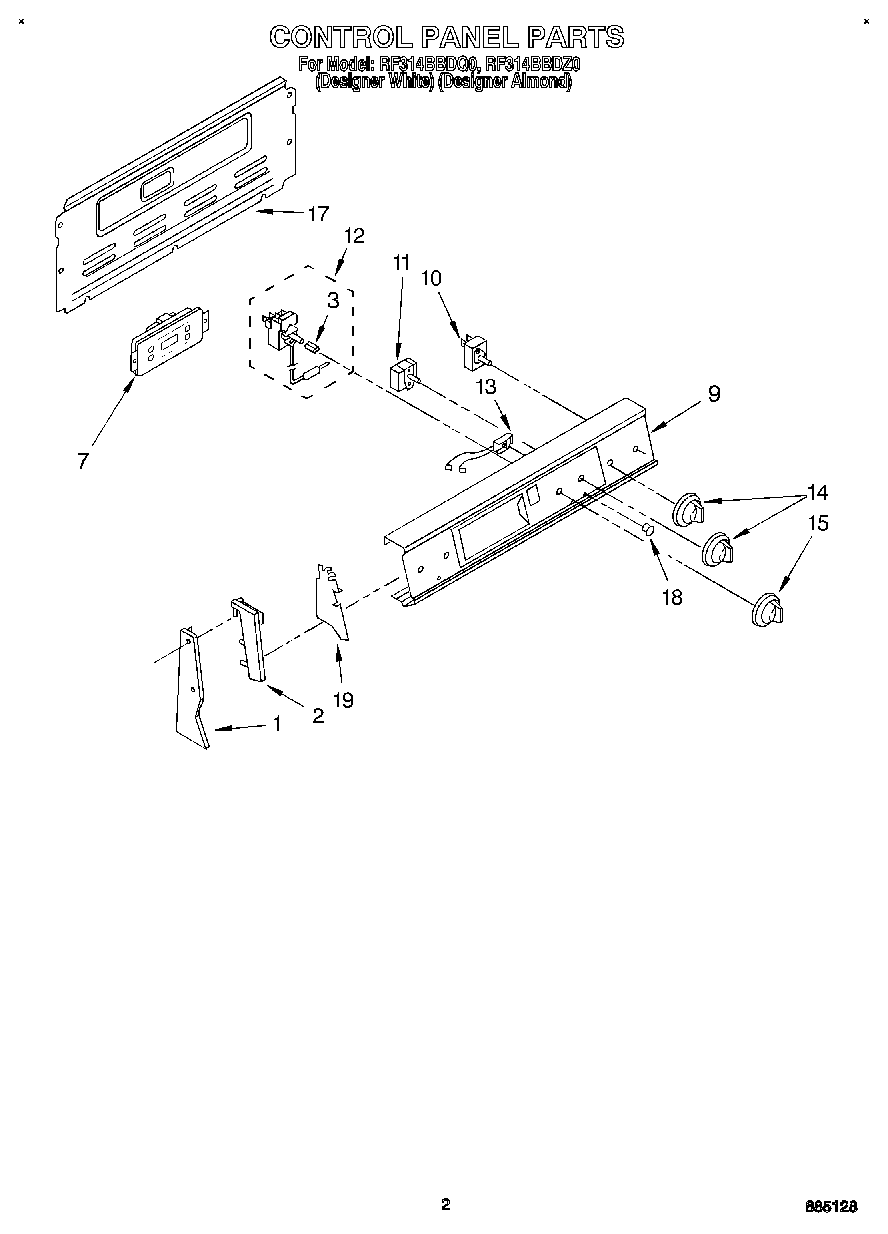

RF314BBDZ0 02 – CONTROL PANEL

Products

Position	Product
1	End Trim (R.H. Almond)
1	End Trim (L.H. Almond)
1	End Trim (L.H. White)
1	End Trim (R.H. White)
2	End Cap L.H. (Designer Almond)
2	End Cap R.H. (Designer Almond)
2	End Cap L.H. (Designer White)
2	End Cap R.H. (Designer White)
2	Screw,
3	WPL 3169525
7	Timer, Clock (Designer White)
7	Timer, Clock (Designer Almond)
9	Panel, Control (Almond)
9	Panel, Control (Almond Screw, (4))
9	Panel, Control (White)
9	Panel, Control (White)
10	WP3148952 Whirlpool Oven Infinite Switch
10	SWITCH-INF
11	Screw, 8-32 x 3/16 (2)
11	WP3188987 Whirlpool Oven Switch
12	WP313808 Whirlpool Screw
12	Thermostat, 0ven
13	Indicator Light (1)
13	Indicator Light (Surface Unit On)
13	Light, Indicator (250V)
14	WPL 3188723
14	WP3196232 Whirlpool Knob
15	Knob, Thermostat (Designer Almond)
15	Knob, Thermostat (Designer White)
17	SCREW
17	Rear Cover Contr
18	Lens, Amber
19	WP965173 Whirlpool Dishwasher Screw
19	Shield (2)
