RF314BBDZ0 03 – DOOR AND DRAWER

RF314BBDZ0 03 – DOOR AND DRAWER

Written by

in

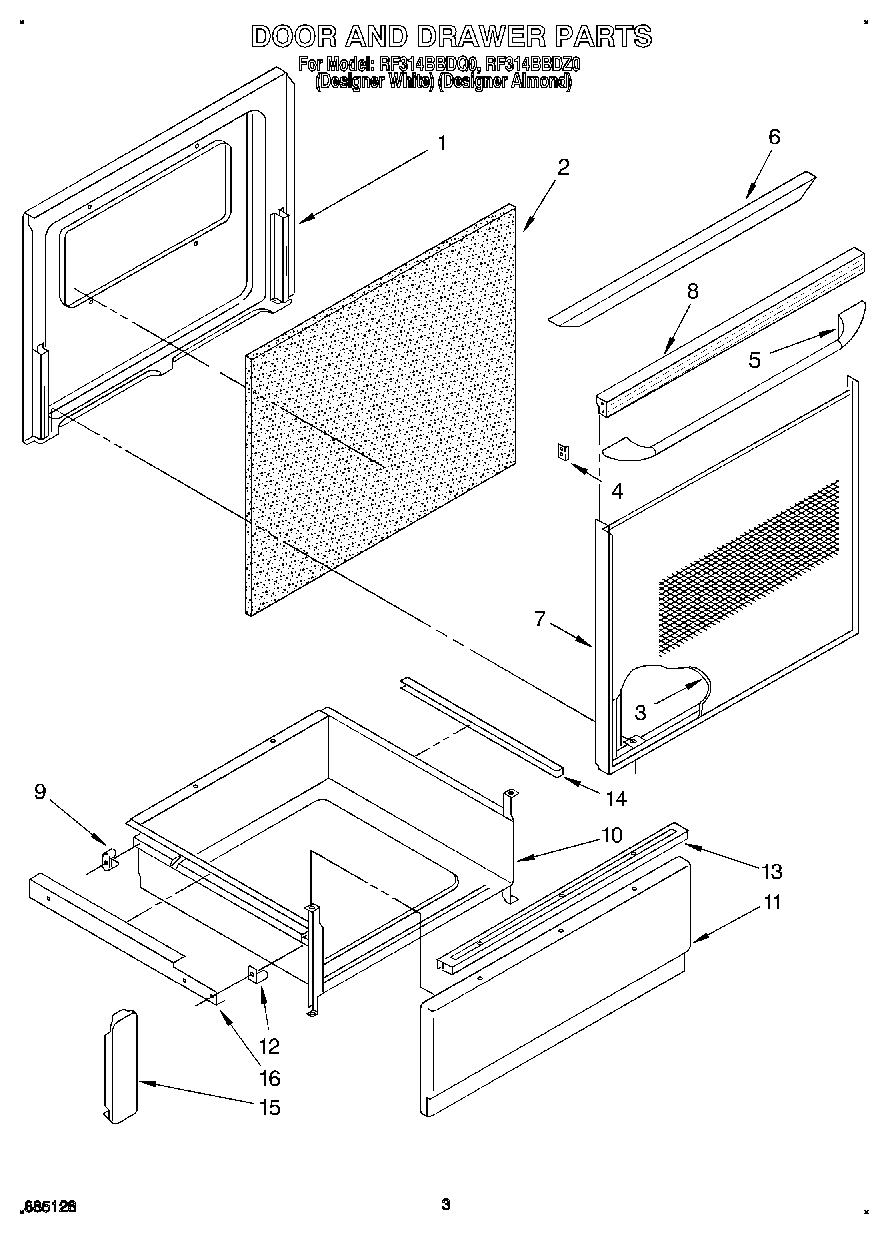

RF314BBDZ0 03 – DOOR AND DRAWER

Products

PositionProduct
1Liner, Door
2WPW10208653 Whirlpool Insulation
3Outer Glass (Almond)
3Outer Glass Panel (Designer White)
4Clip, Mtg (2)
5Handle, Door (White)
5Handle, Door (Almond)
5WP999367 Whirlpool Refrigerator Screw
6Top, Door Frame (Screw (2))
6Top, Door Frame (Screw (2))
6Cap, Top (Designer White)
6Cap, Top (Designer Almond)
7Handle, Door (Screw)
7Frame, Door (Screw (4))
7Frame, Door (White)
7Frame, Door (Almond)
7Screw
8Top, Door Frame (Designer Almond)
8Top, Door Frame (Designer White)
9Glide, Rear (2)
9WP308685 Whirlpool Microwave Screw
10Drawer, Utility
11Panel Drawer (Almond)
11Panel Drawer (White)
12WP488627 Whirlpool Refrigerator Screw
12Glide, Front (2)
13Handle, Drawer (Almond)
13Handle, Drawer (White)
14Protector, Drawer (2)
15Bracket, Mounting (2)
16Rail R.H. (Includes Illus. 3)
16Rail L.H. (Includes Illus. 3)
16Screw, 10A x 1/2 (2) (Black)
