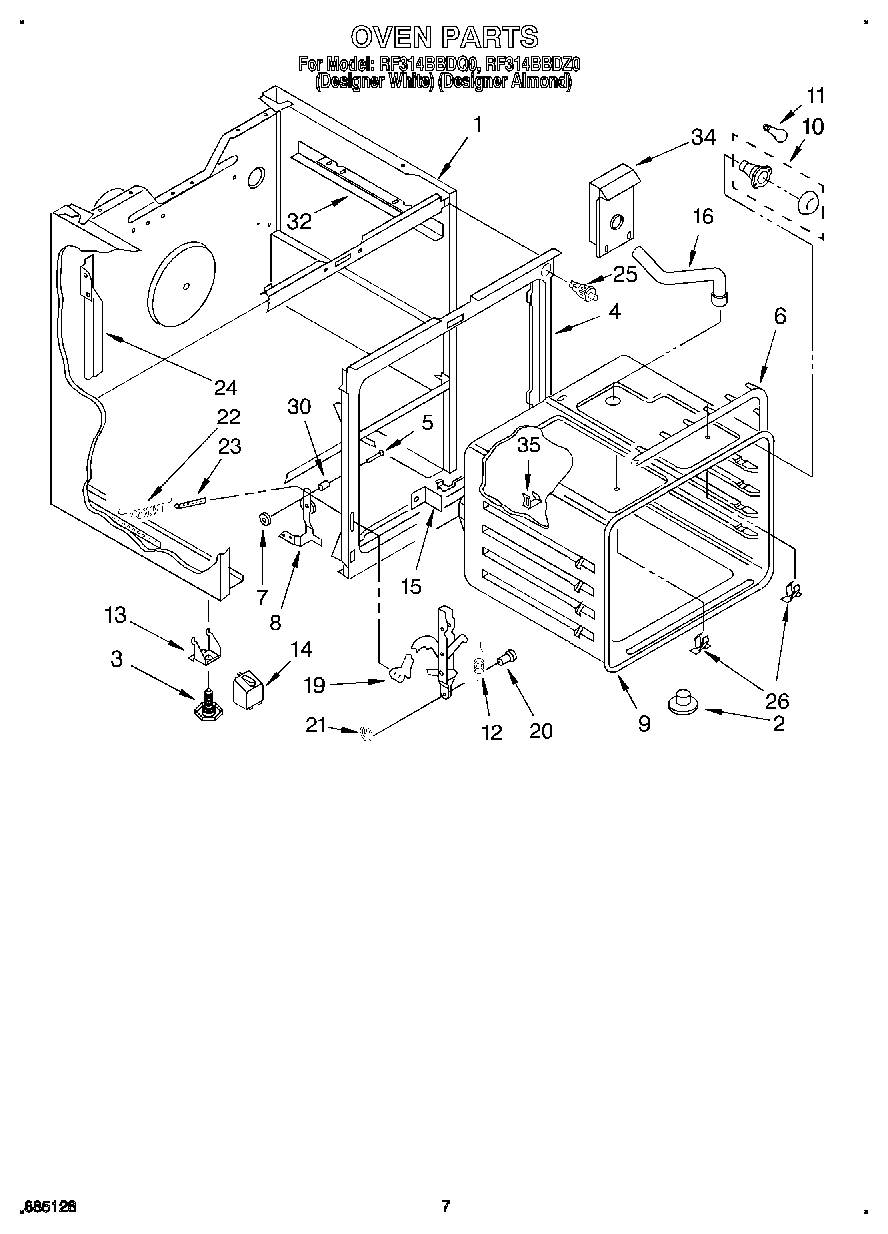

RF314BBDZ0 05 – OVEN

Products

Position	Product
1	Main Chassis (White)
1	Main Chassis (Almond)
2	Tube, Vent
2	Screw, 10A x 1/2 (2) (Black)
3	Leg Leveling (4)
4	Screw (Top)
4	Frame, Front
5	Pin, Hinge Ear (2)
6	Heat Seal
7	Pushnut (2)
8	Hinge, L.H.
8	Hinge, R.H.
9	Oven (30“ Pyro)
10	W11594027 Whirlpool Range Oven Light Socket
11	RANGE ONLY 40W 120V APPL BULB
12	Spring, Door Stop
13	Support, Foot (2)
14	Cover, Foot (2)
15	Bracket, Oven (Mounting)
16	Vent, Oven
16	WP965173 Whirlpool Dishwasher Screw
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	SCREW
24	Wire Cover
24	Wire Cover-Controls (Right)
25	Switch, Door
26	WPL 3169107
30	Snubber, Door (2)
32	Support, Chassis
32	WP3390631 Whirlpool Screw
34	WP488627 Whirlpool Refrigerator Screw
34	Vent, Box
35	Insulation, Wrap
35	98005642 Whirlpool Clip
