RF314BXBN0 01 – COOKTOP, LITERATURE

RF314BXBN0 01 – COOKTOP, LITERATURE

Written by

in

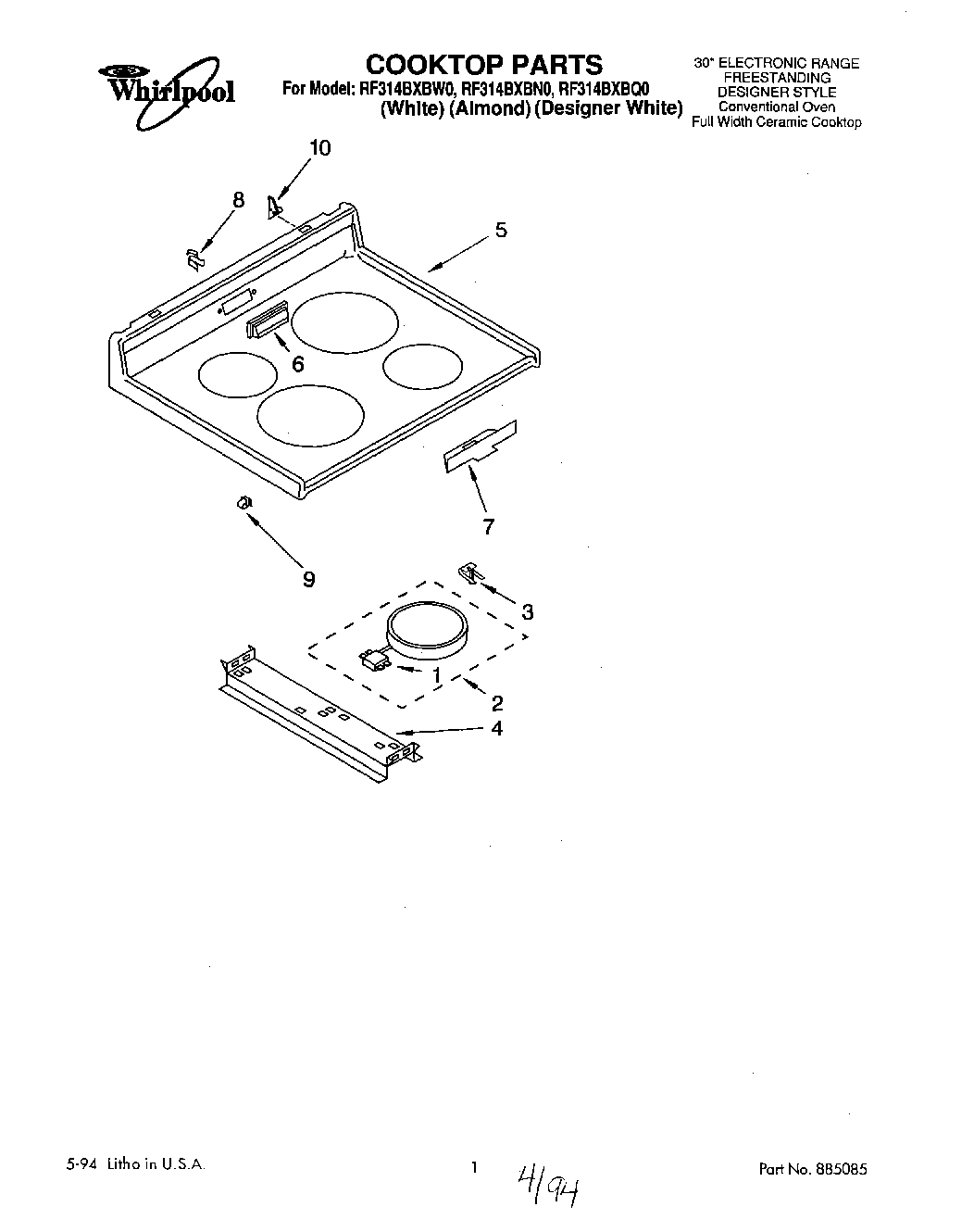

RF314BXBN0 01 – COOKTOP, LITERATURE

Products

PositionProduct
Wiring Diagram
Use and Care Guide
Instructions, Installation
WPL LIT3150400
1Switch, Limit (Use W/3183200 Element)
1Limiter, Temp. (2100W, LF-RR)
2Element, Surface (1700W Right Front)
2Element, Surface (2100W Right Rear)
3WP486754 Whirlpool Compactor Screw
3Spring, Locator
4Screw (2)
4Bracket, (2) Element Support
5Cooktop (White Mdl.)
5Cooktop (Designer White Mdl)
5WP308685 Whirlpool Microwave Screw
5Cooktop (Almond Mdl.)
6Cover, Vent (White)
6cover, vent (almond)
7Shield, Probe
8Clip, Vent Cover
9Clip
10Bracket, Cooktop (Right)
10SCREW
10Bracket, Cooktop (Left)
