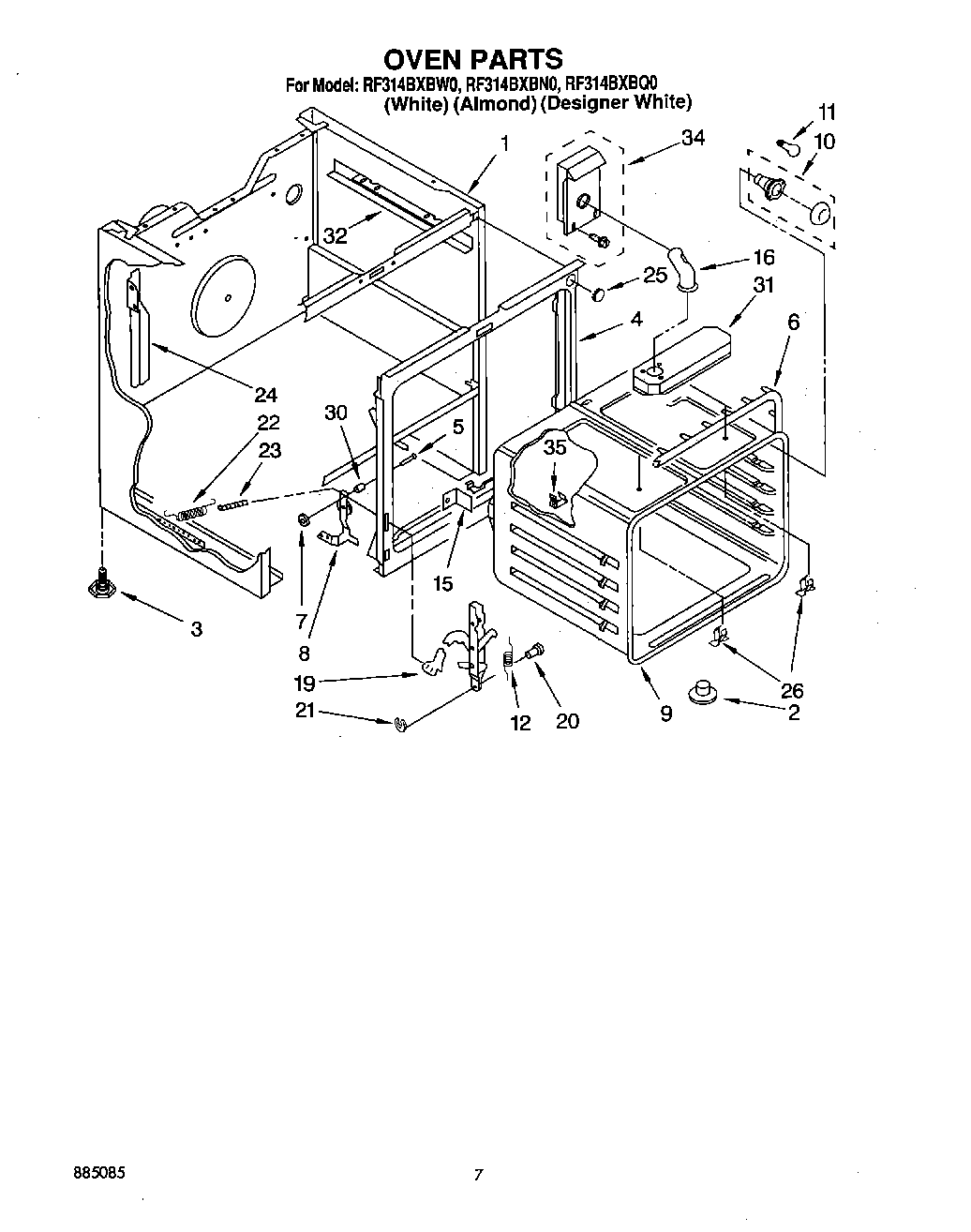

RF314BXBN0 05 – OVEN

Products

Position	Product
1	Main Chassis (Almond)
1	Main Chassis (White)
2	Tube, Vent
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
4	Screw (Top)
5	Pin, Hinge Ear (2)
6	Heat Seal
7	Pushnut (2)
8	Hinge, R.H.
8	Hinge, L.H.
9	Oven (30“ Pyro)
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
11	RANGE ONLY 40W 120V APPL BULB
12	Spring, Door Stop
15	Bracket, Oven (Mounting)
16	Vent, Oven
16	Screw, 10A x 1/2 (2) (Black)
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover-Controls (Right)
24	Wire Cover
25	Plug Button
26	WPL 3169107
30	Snubber, Door (2)
31	Box Vent
31	SCREW
32	Support, Chassis
32	WP3390631 Whirlpool Screw
34	WP488627 Whirlpool Refrigerator Screw
34	Vent, Box
35	Insulation, Wrap
35	98005642 Whirlpool Clip
