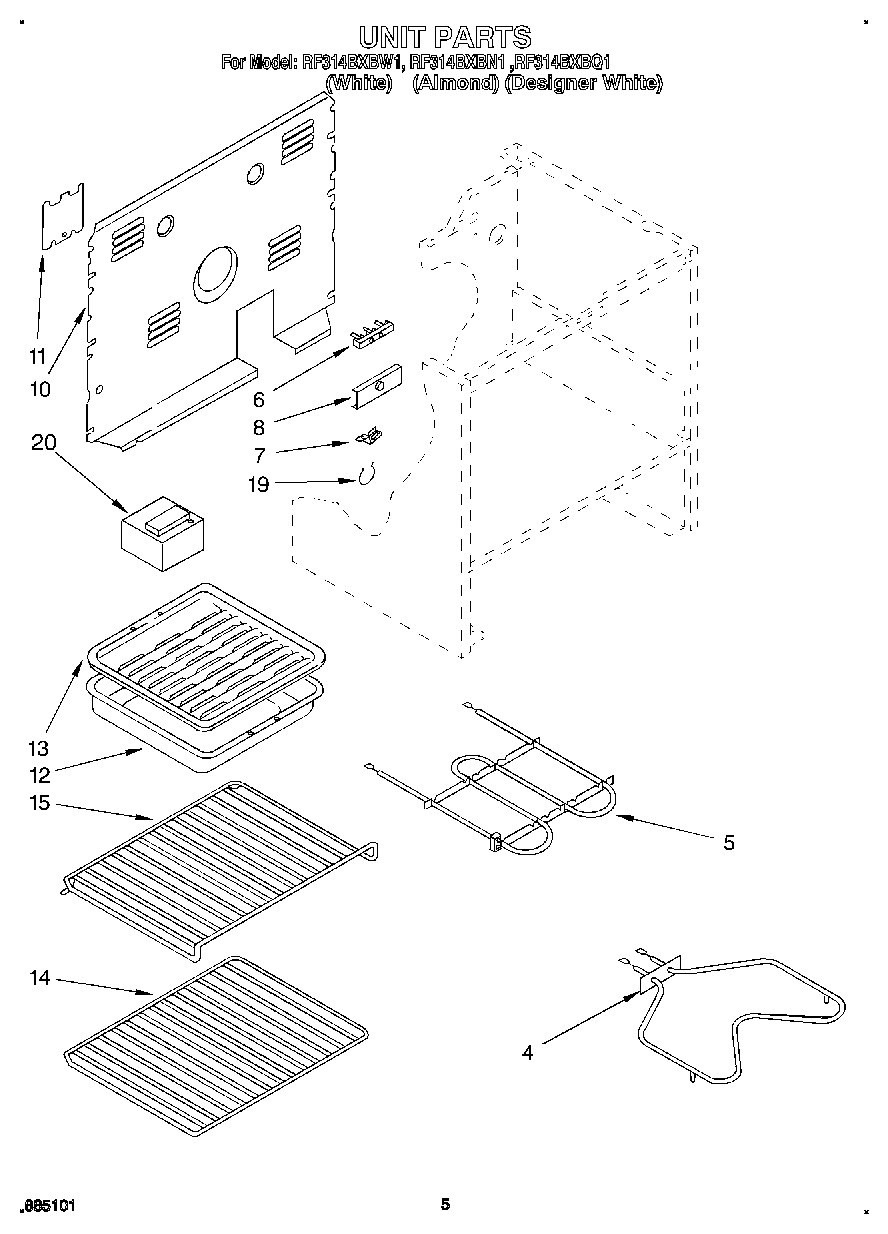

RF314BXBN1 04 – UNIT

Products

Position	Product
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5	Screw (2)
6	WP8203546 Whirlpool Terminal Block
6	WP112432 Whirlpool Nut Assembly
6	Screw, (2) 10-16 x 1
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
10	Cover, Rear
10	SCREW
11	Cover, Service
11	Screw, 10-16 x 1/2 (2)
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
19	16515 Whirlpool Clip
20	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
20	340184 Whirlpool Screw
20	WA906B Whirlpool Cooktop Glass Scraper
20	Block, Balance
20	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
