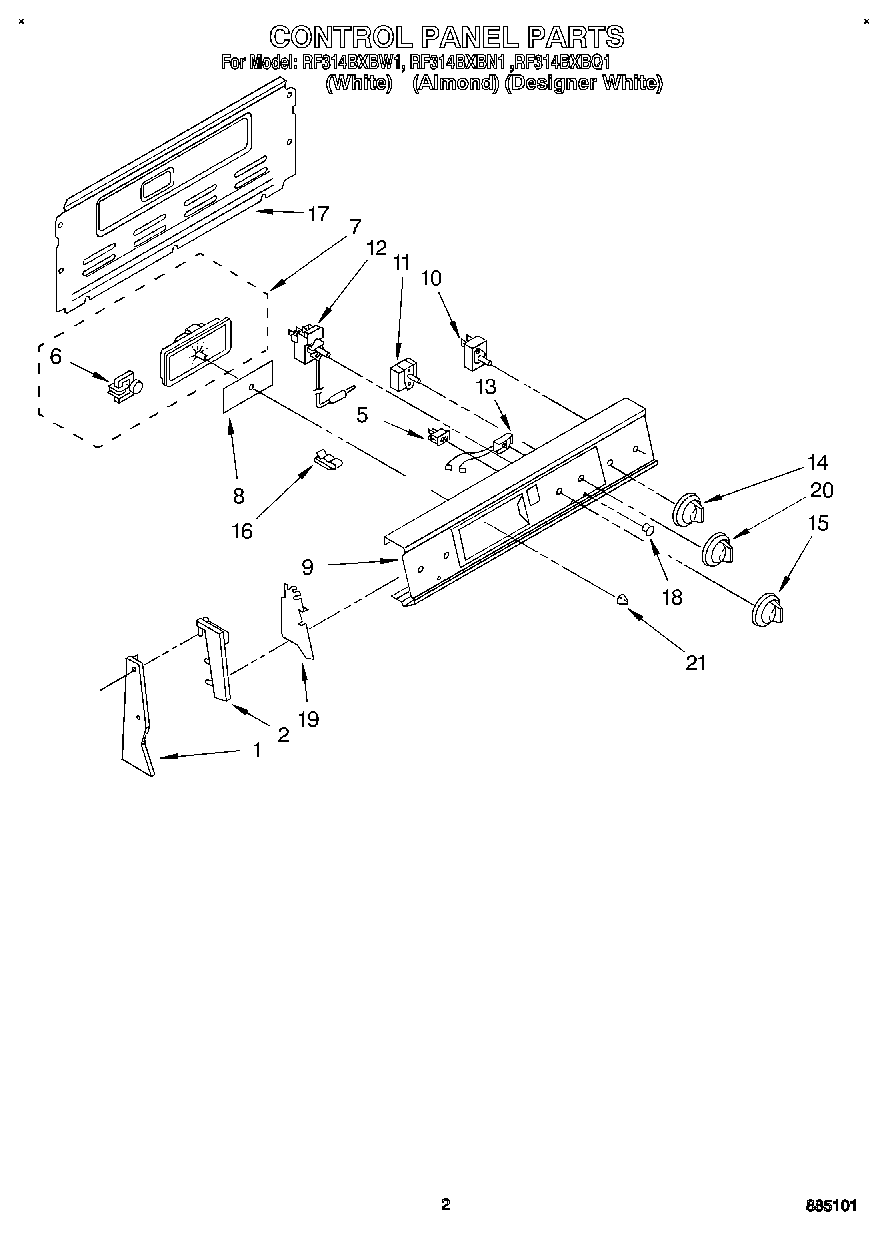

RF314BXBQ1 02 – CONTROL PANEL

Products

Position	Product
1	End Trim L.H.
1	End Trim R.H.
2	End Cap, R.H. (White/Almond/Gold)
2	Screw,
2	End Cap R.H.
2	End Cap L.H.
2	End Cap, R.H. (White/Almond/Gold)
5	WP4314961 Whirlpool Lite Switch
5	3149360 Whirlpool Light Switch
6	Motor, Timer
7	Timer, Clock
7	Timer, Control (Designer White Mdl)
8	Glass, Timer
9	Washer
9	Panel, Control (Designer White Mdl)
9	Panel, Control (White/Almond Mdl.)
10	SWITCH-INF
10	WP3148952 Whirlpool Oven Infinite Switch
11	Switch, Selector
11	Screw, 8-32 x 3/16 (2)
12	WP313808 Whirlpool Screw
12	Thermostat, 0ven
13	Indicator Light (1)
13	Light, Indicator (250V)
13	Light, Indicator (Includes No. 12) (Surface Unit On)
14	Knob, (4) Infinite Switch (Designer Mdl)
14	Knob, (4) Infinite Switch (White/Almond/Gold)
15	Knob, Temperature (Designer Mdl)
15	Knob, Thermostat
16	Clip, Tube
17	Rear Cover Contr
17	SCREW
18	Lens, Amber
19	WP965173 Whirlpool Dishwasher Screw
19	Shield (2)
20	Knob, Selector (Designer Mdl)
20	Knob, Selector (White/Almond/Gold)
21	WP3169181 Whirlpool Knob
