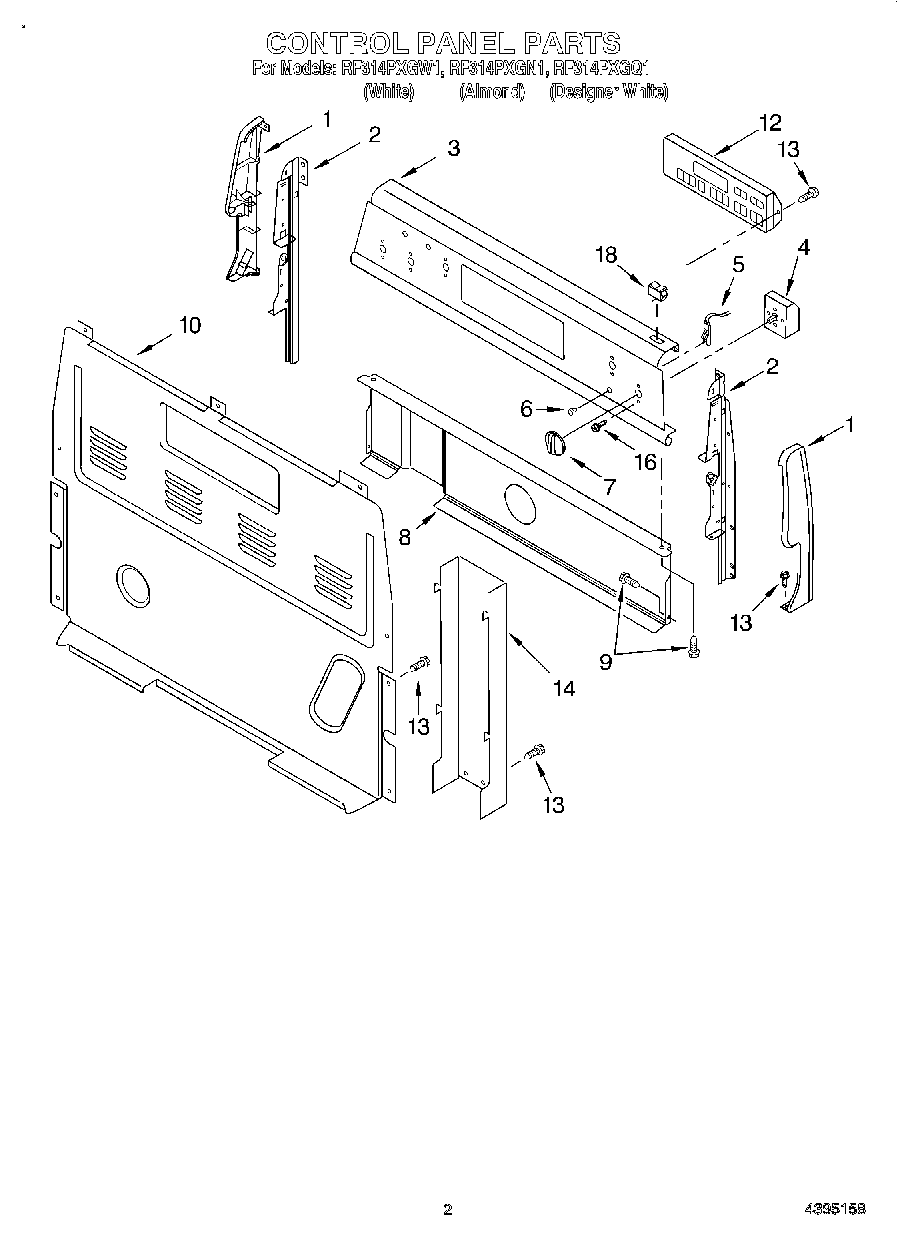

RF314PXGN1 02 – CONTROL PANEL

Products

Position	Product
1	Endcap (Black Left Hand)
1	Endcap, Right Hand (Black)
1	Endcap (White Right Hand)
1	Endcap (White Left Hand)
2	Support, Endcap (Left Hand)
2	Support, Endcap (Right Hand)
3	Panel, Backguard (Black)
3	Panel, Backguard (White)
4	SWITCH-INF
4	WP3148952 Whirlpool Oven Infinite Switch
5	Light, Indicator (Surface Unit (2))
6	WP3196068 Whirlpool Light Lens
7	WP3196232 Whirlpool Knob
7	WP3196231 Whirlpool Knob
8	Shield, Heat
9	Screw
10	WP8272473 Whirlpool Rear Cover
12	Control, Range (Black)
12	Control, Range (White)
13	SCREW
14	WPW10326122 Whirlpool Black Cover
16	WP3400882 Whirlpool Screw
18	3149360 Whirlpool Light Switch
18	WP4314961 Whirlpool Lite Switch
