RF314PXGN1 05 – DOOR, OPTIONAL

RF314PXGN1 05 – DOOR, OPTIONAL

Written by

in

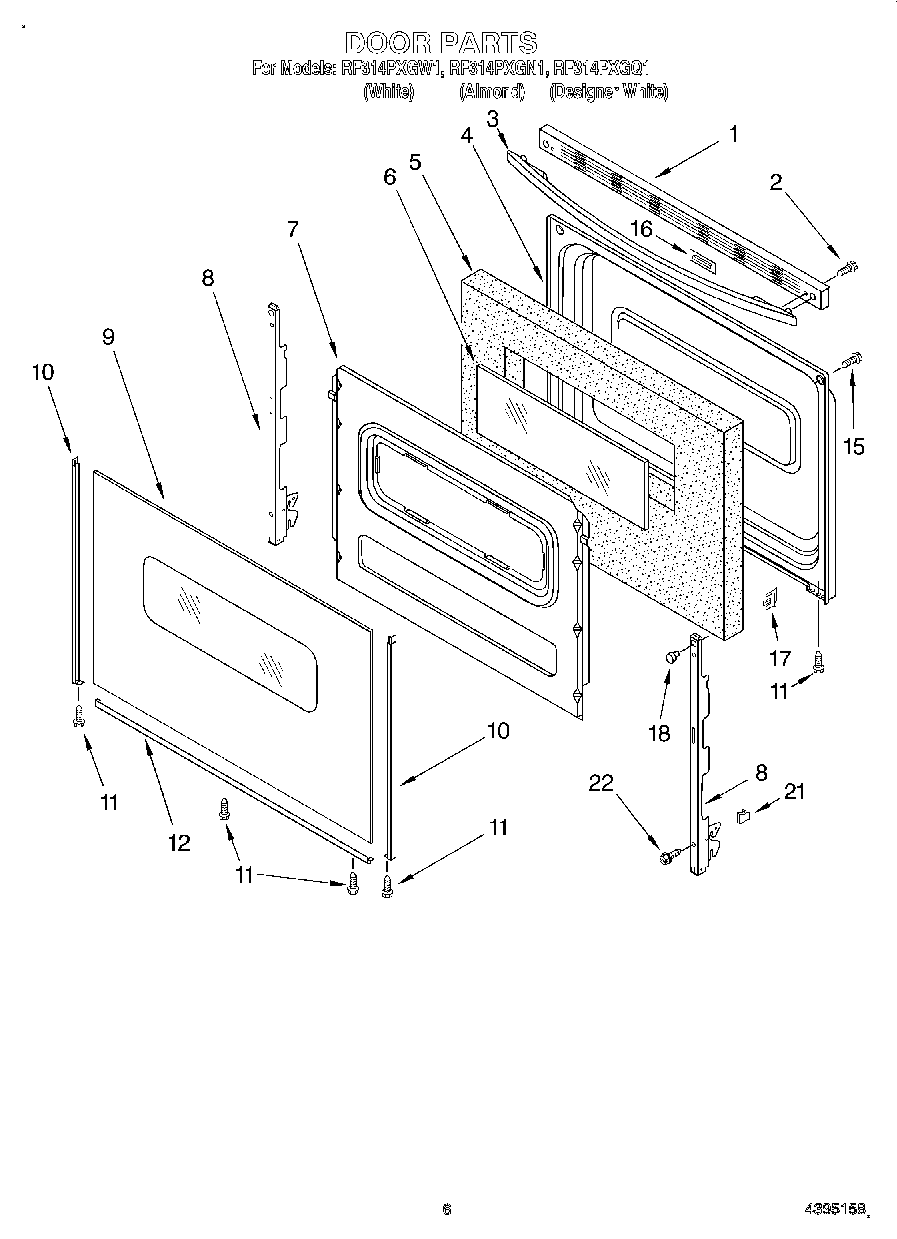

RF314PXGN1 05 – DOOR, OPTIONAL

Products

Position	Product
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Black)
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	Insulation, Door
6	WP9758164 Whirlpool Door Glass
7	9761500 Whirlpool Oven Retainer
8	Hinge, Door (2)
9	WP9762476 Whirlpool Door Glass
9	WP9762477 Whirlpool Glass Door
11	W10491985 Whirlpool Screw
12	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
12	8184858 Whirlpool Door Trim
15	WP179051 Whirlpool Screw
16	Plug, Door
17	Clip, Glass (4)
18	238614 Whirlpool Bumper Hinge
21	WP3196925 Whirlpool Clip Assembly
22	Wire (14 Ga. 150 c Brown)
22	Wire (14 Ga. 150 c Green)
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 150 c Yellow)
22	Wire (12 Ga. 150 c Black)
22	18 Ga. 80~c Rating (Red)
22	Wire (14 Ga. 200 c Brown)
22	1
22	WPL 3196697
22	WPL 8272999
22	WPL 8053637
22	WP3196154 Whirlpool Screw Assembly
22	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
22	Grease
22	3184020 Whirlpool Oven Wire
22	8212471 Whirlpool Oven Paint
22	WP3196174 Whirlpool Screw
22	Wire (14 Ga. 150 c Blue)
22	242831 Whirlpool Oven Wire
22	Clip, Ground Wire
22	WPL 72112
22	Platinum (Uncut)
22	Enamal, Toast (1 Qt. Uncut)
22	Paint, Spray (13 Oz.) (Platinum)
22	Toast
22	Golden Harvest (Uncut)
22	Golden Harvest
22	72113 Whirlpool Touch-Up Paint
22	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
22	Almond (Uncut)
22	WP72107 Whirlpool Touchup
22	799344 Whirlpool Refrigerator Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
22	350956 Whirlpool Spray Assembly
22	350942 Whirlpool Spray Paint
22	511873 Whirlpool Refrigerator Paint
22	WPL 799832
22	3400964 Whirlpool Oven Clip
22	814381 Whirlpool Pin
22	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
22	Paint, Spray 13 Oz. (Avocado)
22	paint, spray 13 oz. (coffee)
22	Paint, Touch-Up 1/2 Oz. (Coffee)
22	72109 Whirlpool Dacor Avocado Touch-Up Paint
22	285006 Whirlpool Spray
22	Wire, 25“ Roll (White 14 GA.)
22	Wire, 25` Roll (Red 14 Ga.)
22	Wire, 25` Roll (Black 14 Ga.)
22	WP3196175 Whirlpool Screw
22	FOIL, ALUMINUM OVEN (18“ X 25 )
22	WPW10208653 Whirlpool Insulation
22	350930 Whirlpool White Spray Paint
