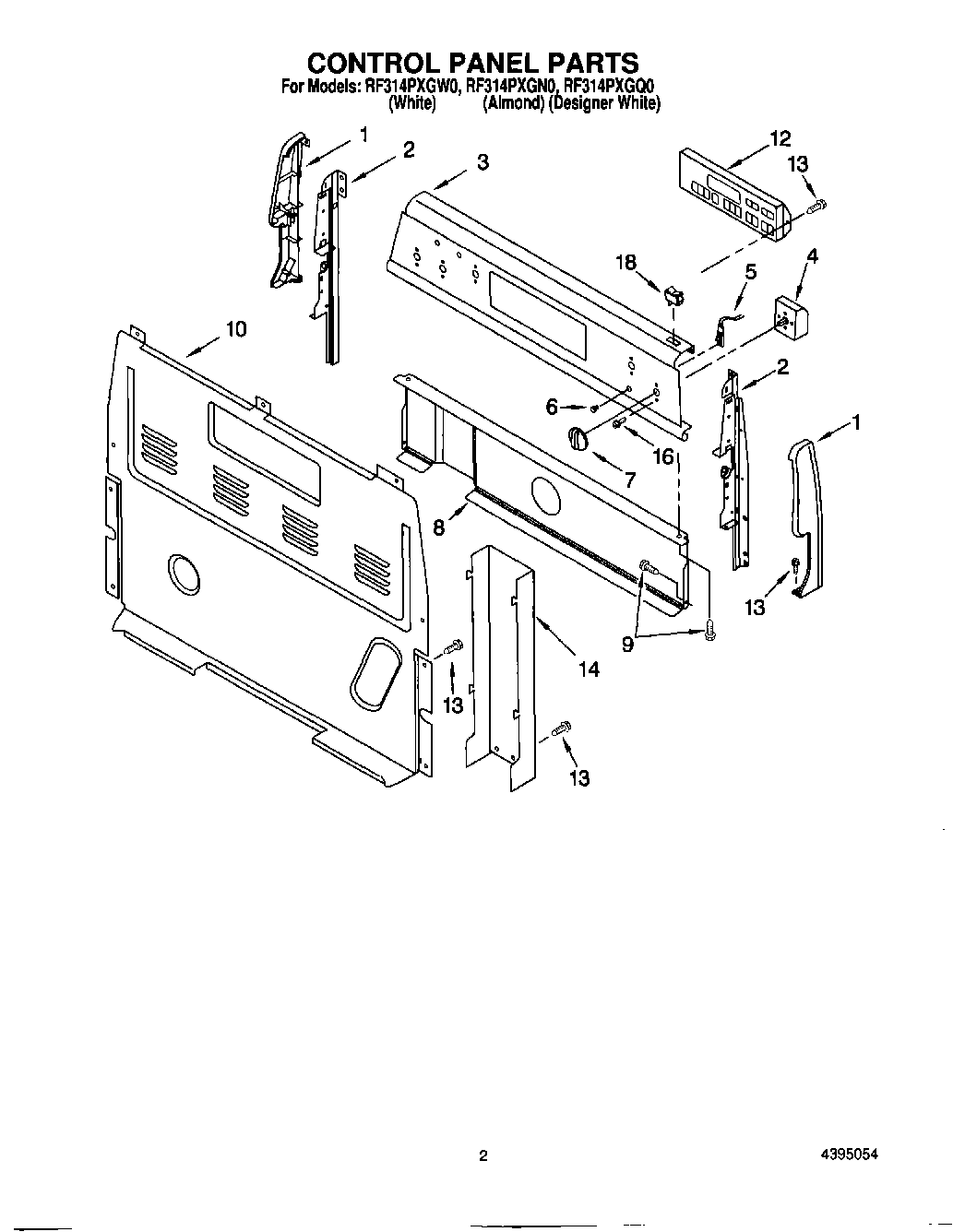

RF314PXGW0 02 – CONTROL PANEL

RF314PXGW0 02 – CONTROL PANEL

Written by

in

RF314PXGW0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap, Right Hand (Black)
1Endcap (Black Left Hand)
1Endcap (White Right Hand)
1Endcap (White Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (White)
3Panel, Backguard (Black)
4Switch, Infinite (Screw (8))
4WP3148952 Whirlpool Oven Infinite Switch
4SWITCH-INF
5Light, Indicator (Surface Unit (2))
6WP3196068 Whirlpool Light Lens
7WP3196231 Whirlpool Knob
7WP3196232 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
12Control, Range (Black)
12Control, Range (White)
13SCREW
14WPW10326122 Whirlpool Black Cover
16WP3400882 Whirlpool Screw
183149360 Whirlpool Light Switch
18WP4314961 Whirlpool Lite Switch
