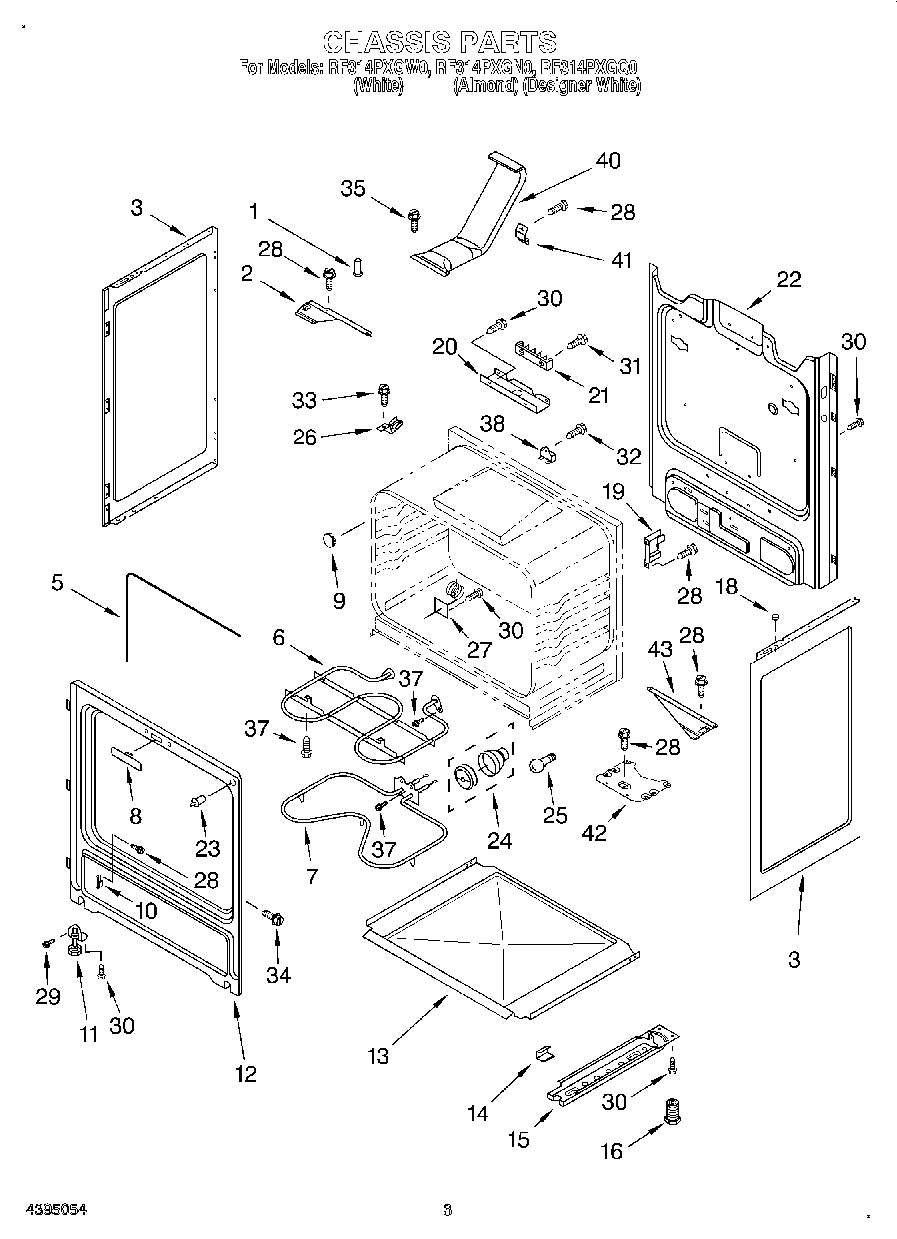

RF314PXGW0 03 – CHASSIS

Products

Position	Product
1	Vent Tube
2	Support, Corner LR
3	Panel, Side (2) (Almond-Textured)
3	WPW10575396 Whirlpool Side Panel
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	WPW10308477 Whirlpool Bake Element
8	Plug, Frame
9	Button, Plug
10	WP3195546 Whirlpool Drawer Glide
11	WP3196037 Whirlpool Leveling Foot
12	Frame, Front
13	WP8054068 Whirlpool Retainer
14	Clip, Panel (6)
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
18	238614 Whirlpool Bumper Hinge
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	WP8203546 Whirlpool Terminal Block
21	WP112432 Whirlpool Nut Assembly
22	Back, Main
23	WP3196262 Whirlpool Light Switch
24	W11594027 Whirlpool Range Oven Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	Ground Strap
27	Sensor
28	WP3196175 Whirlpool Screw
29	Screw
30	SCREW
31	WP3400016 Whirlpool Screw Assembly
32	3196172 Whirlpool Oven Screw
33	W11244557 Whirlpool Screw
34	WP7101P246-60 Whirlpool Screw
35	WP489491 Whirlpool Refrigerator Screw
36	WP3400832 Whirlpool Screw
37	WP3196174 Whirlpool Screw
38	WP3196548 Whirlpool Thermal Fuse
40	WPW10134285 Whirlpool Vent Tube
41	Bracket, Flue
42	Support, Front (2)
43	Insulation, Vent
43	WP8272612 Whirlpool Insulation
43	Support, Corner RR
43	WPW10208653 Whirlpool Insulation
