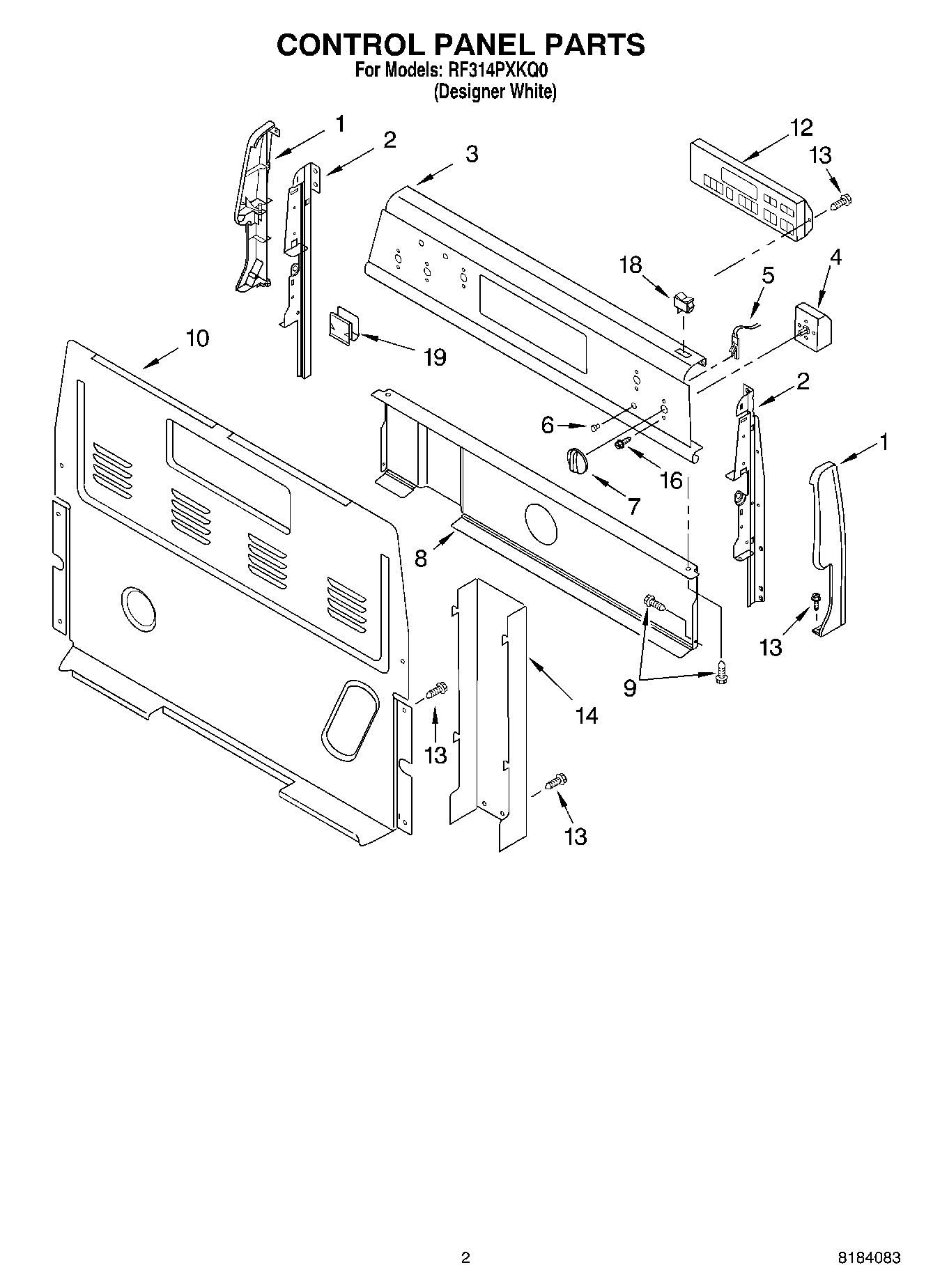

RF314PXKQ0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (White Left Hand)
1Endcap (White Right Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (White)
4SWITCH-INF
4WP3148952 Whirlpool Oven Infinite Switch
5Light, Indicator (Surface Unit (2))
6WP3196068 Whirlpool Light Lens
7WP8522565 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
12Control, Range (White)
13SCREW
14WPW10326122 Whirlpool Black Cover
16WP3400882 Whirlpool Screw
183149360 Whirlpool Light Switch
19WP8273564 Whirlpool Clip
