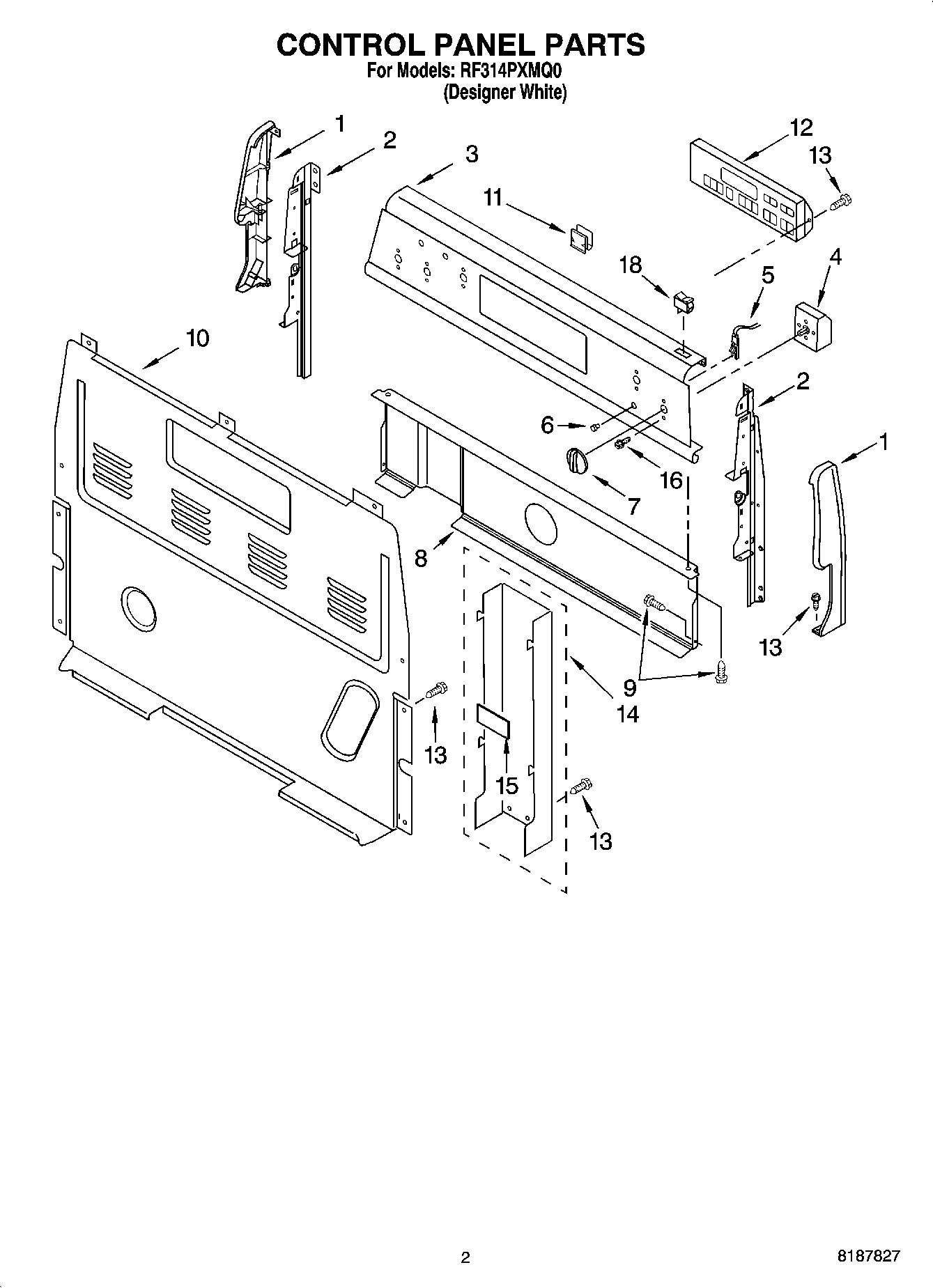

RF314PXMQ0 02 – CONTROL PANEL PARTS

RF314PXMQ0 02 – CONTROL PANEL PARTS

Written by

in

RF314PXMQ0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (White Left Hand)
1Endcap (White Right Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (White)
4SWITCH-INF
4WP3148952 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WP8522565 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11WP8273564 Whirlpool Clip
12Control, Range (White)
13SCREW
14WPW10326122 Whirlpool Black Cover
15Card, Insulation
16WP3400882 Whirlpool Screw
183149360 Whirlpool Light Switch
