RF314PXMQ1 05 – DOOR PARTS, OPTIONAL PARTS

RF314PXMQ1 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

RF314PXMQ1 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL 9761458
	WP3196154 Whirlpool Screw Assembly
	3184020 Whirlpool Oven Wire
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	WP3196174 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	WPL 8524132
	WPL 9761468
	WPL 9758196
	WPL ARI160580A
	WPL ARI160579A
	WPL ARI160578A
	WPL ARI160577A
	WPL ARI160576A
	WPL ARI160575A
	WPL ARI160574A
	WPL ARI160573A
	WPL 9756752
	WPL 8524114
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	Clip, Ground Wire
	4396923 Whirlpool Broil Pan Set Gray Porcelain
	WPW10208653 Whirlpool Insulation
	WPL 799832
	511873 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	Wire, 25` Roll (Red 14 Ga.)
	Almond (Uncut)
	285006 Whirlpool Spray
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	814381 Whirlpool Pin
	Grease
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	FOIL, ALUMINUM OVEN (18“ X 25 )
	799344 Whirlpool Refrigerator Paint
	W11447673 Whirlpool Range Tip Anchor
	WP72107 Whirlpool Touchup

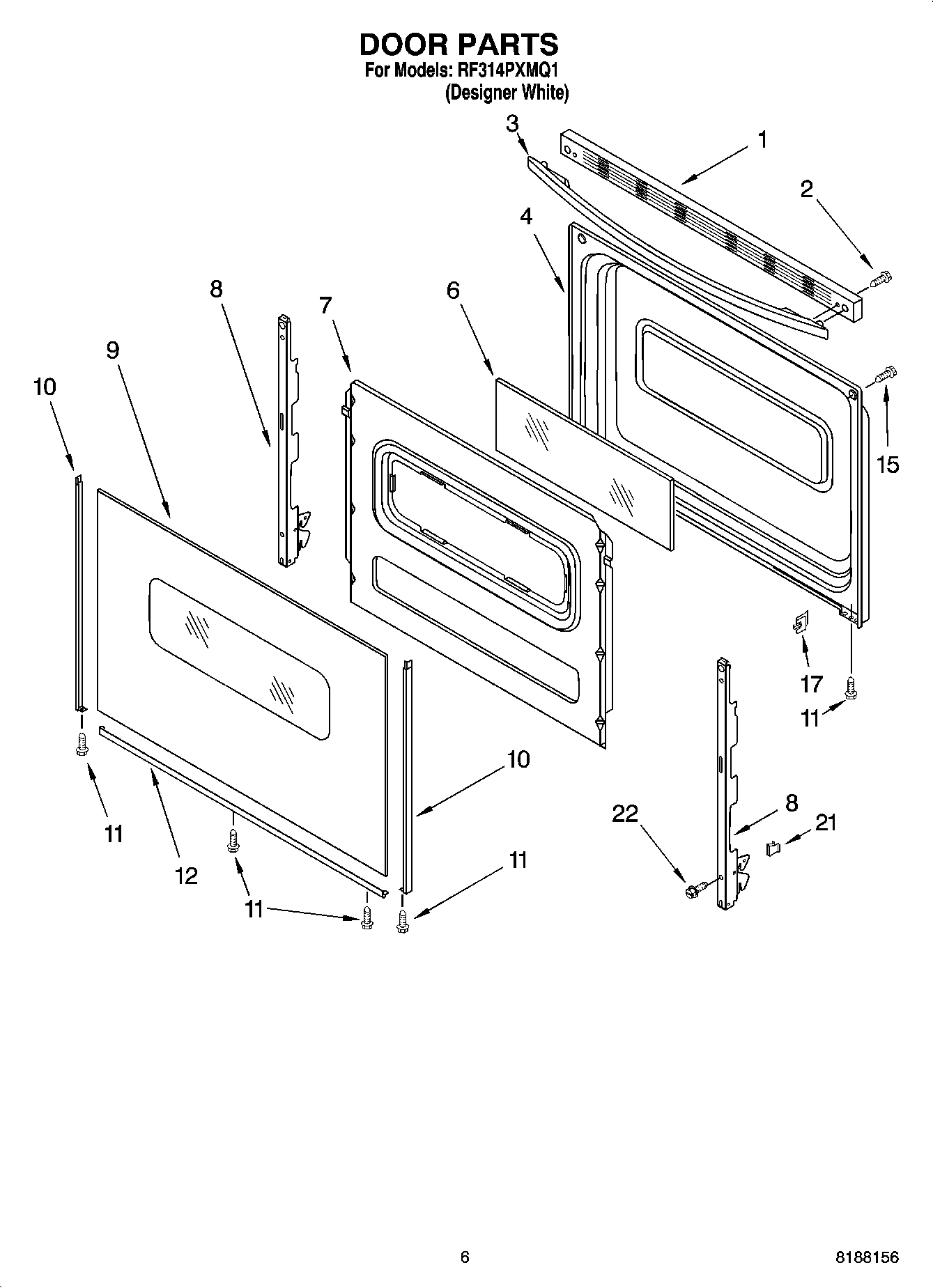

1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
6	WP9758163 Whirlpool Door Glass Assembly
7	9761500 Whirlpool Oven Retainer
8	Hinge, Door (2)
9	WP9762476 Whirlpool Door Glass
10	WP8523172 Whirlpool Left Door Trim
10	WP8523166 Whirlpool Door Trim
11	W10491985 Whirlpool Screw
12	WP8523175 Whirlpool Door Trim Assembly
15	WP179051 Whirlpool Screw
17	Clip, Glass (4)
21	WP3196925 Whirlpool Clip Assembly
22	WP3196175 Whirlpool Screw
