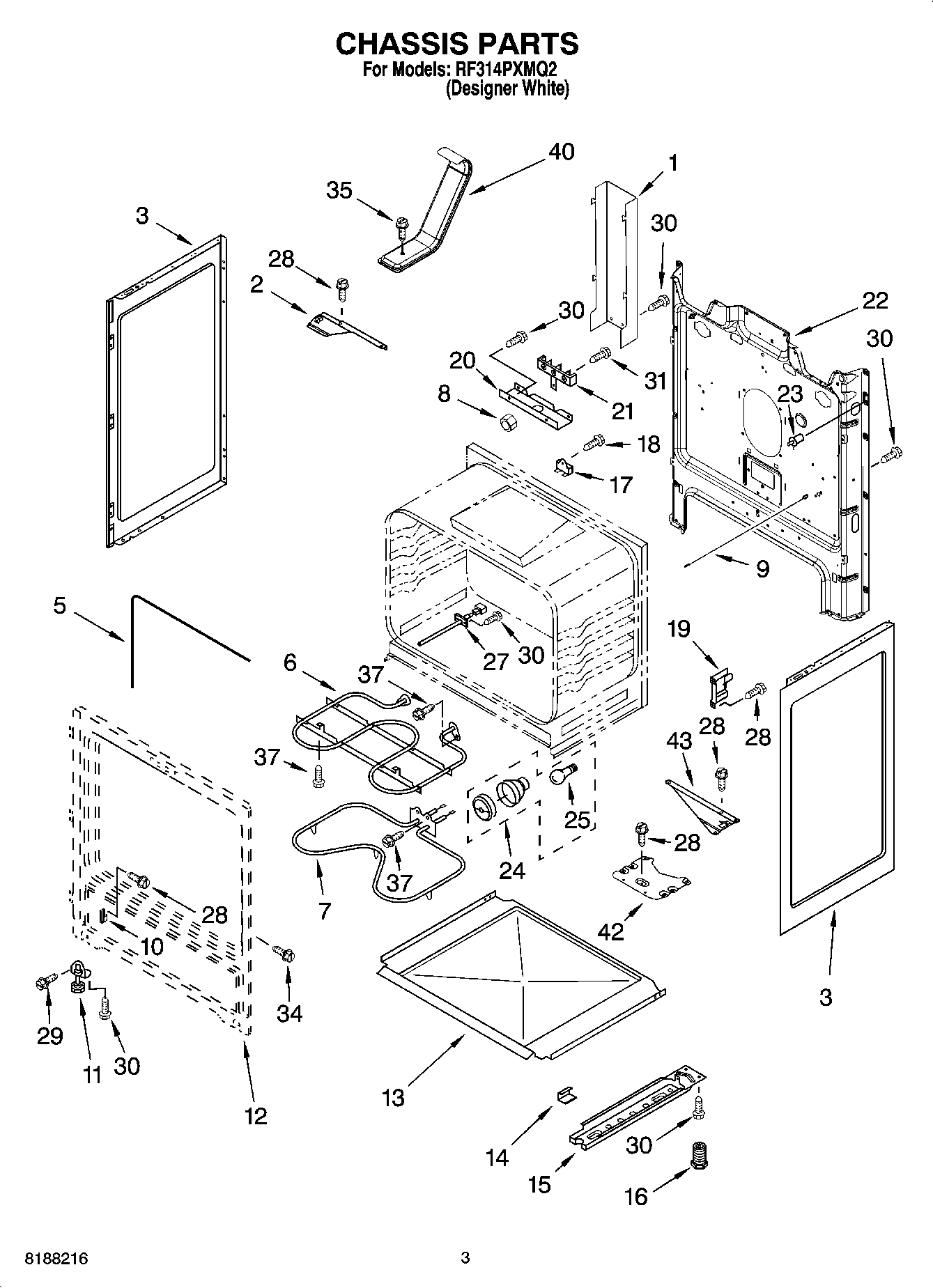

RF314PXMQ2 03 – CHASSIS PARTS

Products

Position	Product
1	WPW10326122 Whirlpool Black Cover
2	Support, Corner LR
3	WPW10575396 Whirlpool Side Panel
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	WPW10308477 Whirlpool Bake Element
8	WP112432 Whirlpool Nut Assembly
9	9757239 Whirlpool Oven Door Rod
10	WPW10114344 Whirlpool Drawer Glide
11	WP3196037 Whirlpool Leveling Foot
12	Frame, Front (Not Serviced)
13	WP8054068 Whirlpool Retainer
14	Clip, Panel (6)
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	WP3196548 Whirlpool Thermal Fuse
18	3196172 Whirlpool Oven Screw
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	WP9761958 Whirlpool Range Terminal Block
22	Back, Main
23	Switch, Door
24	W11594027 Whirlpool Range Oven Light Socket
25	RANGE ONLY 40W 120V APPL BULB
27	WPW10181986 Whirlpool Oven Sensor
28	WP3196557 Whirlpool Screw
29	Screw
30	SCREW
31	WP3400016 Whirlpool Screw Assembly
34	WP7101P246-60 Whirlpool Screw
35	WP489491 Whirlpool Refrigerator Screw
37	WP3196174 Whirlpool Screw
40	WPW10134285 Whirlpool Vent Tube
42	Support, Front (2)
43	Support, Corner RR
43	W11311894 Whirlpool Insulation
43	WPW10208653 Whirlpool Insulation
43	Insulation
43	8053915 Whirlpool Oven Insulation
