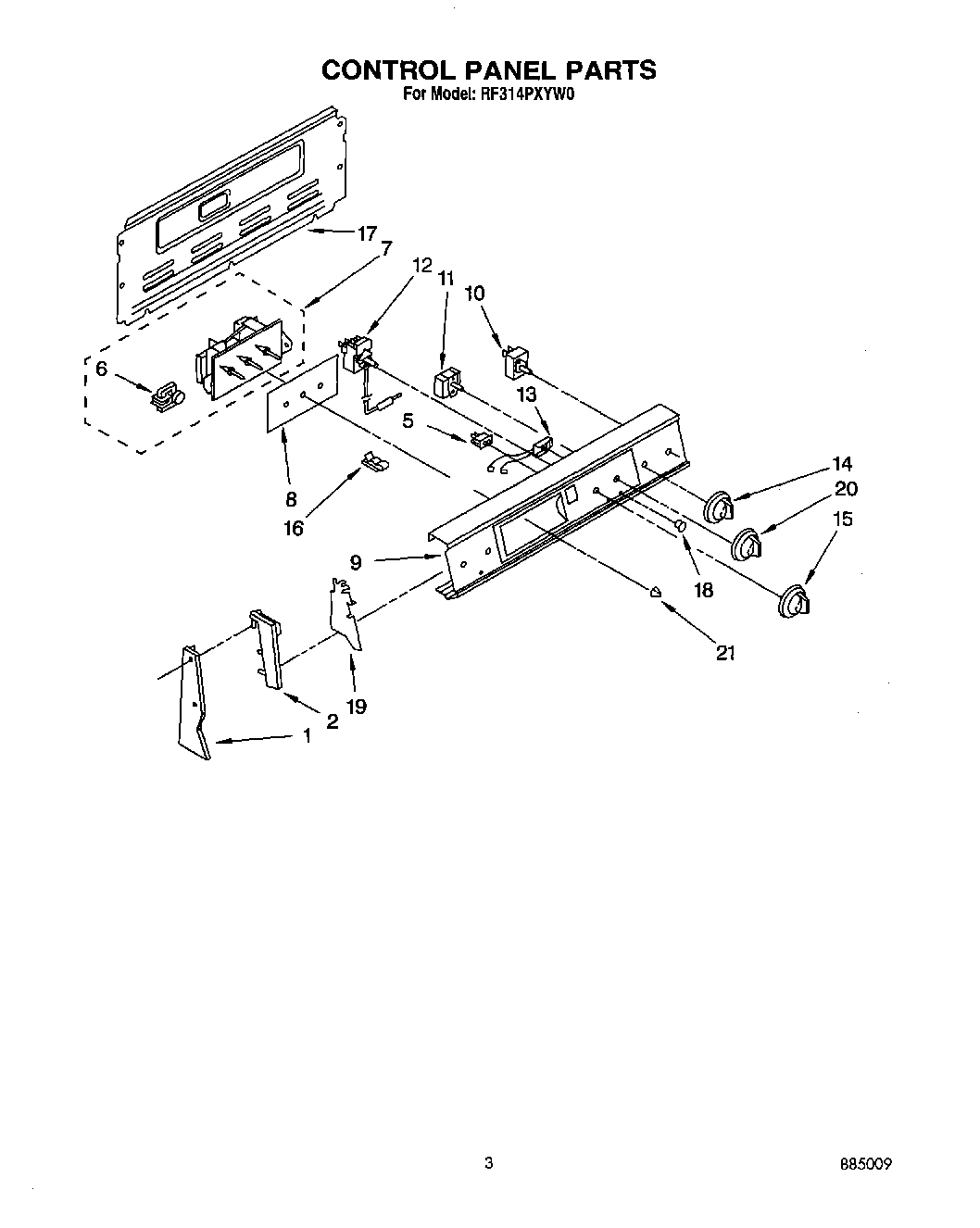

RF314PXYN0 03 – CONTROL PANEL

Products

Position	Product
1	End Trim R.H.
1	End Trim L.H.
2	End Cap, R.H. (White/Almond/Gold)
2	End Cap, R.H. (White/Almond/Gold)
2	Screw,
5	WP4314961 Whirlpool Lite Switch
6	Motor, Timer
7	Timer, Control
8	Glass, Timer
9	Panel, Control (White/Almond Mdl.)
9	Washer
10	WP3148952 Whirlpool Oven Infinite Switch
10	WP486579 Whirlpool Air Conditioner Screw
10	SWITCH-INF
11	Switch, Selector (4 Position)
12	Thermostat, Oven
12	WP313808 Whirlpool Screw
13	Light, Indicator (250V)
13	Light, Indicator (Includes No. 12) (Surface Unit On)
14	Knob, (4) Infinite Switch (White/Almond/Gold)
15	Knob, Thermostat
16	Clip, Tube
17	Harness-Conduit Asm.
17	SCREW
18	Lens, Amber
19	Shield (2)
19	WP965173 Whirlpool Dishwasher Screw
20	Knob, Selector
21	WP3169181 Whirlpool Knob
