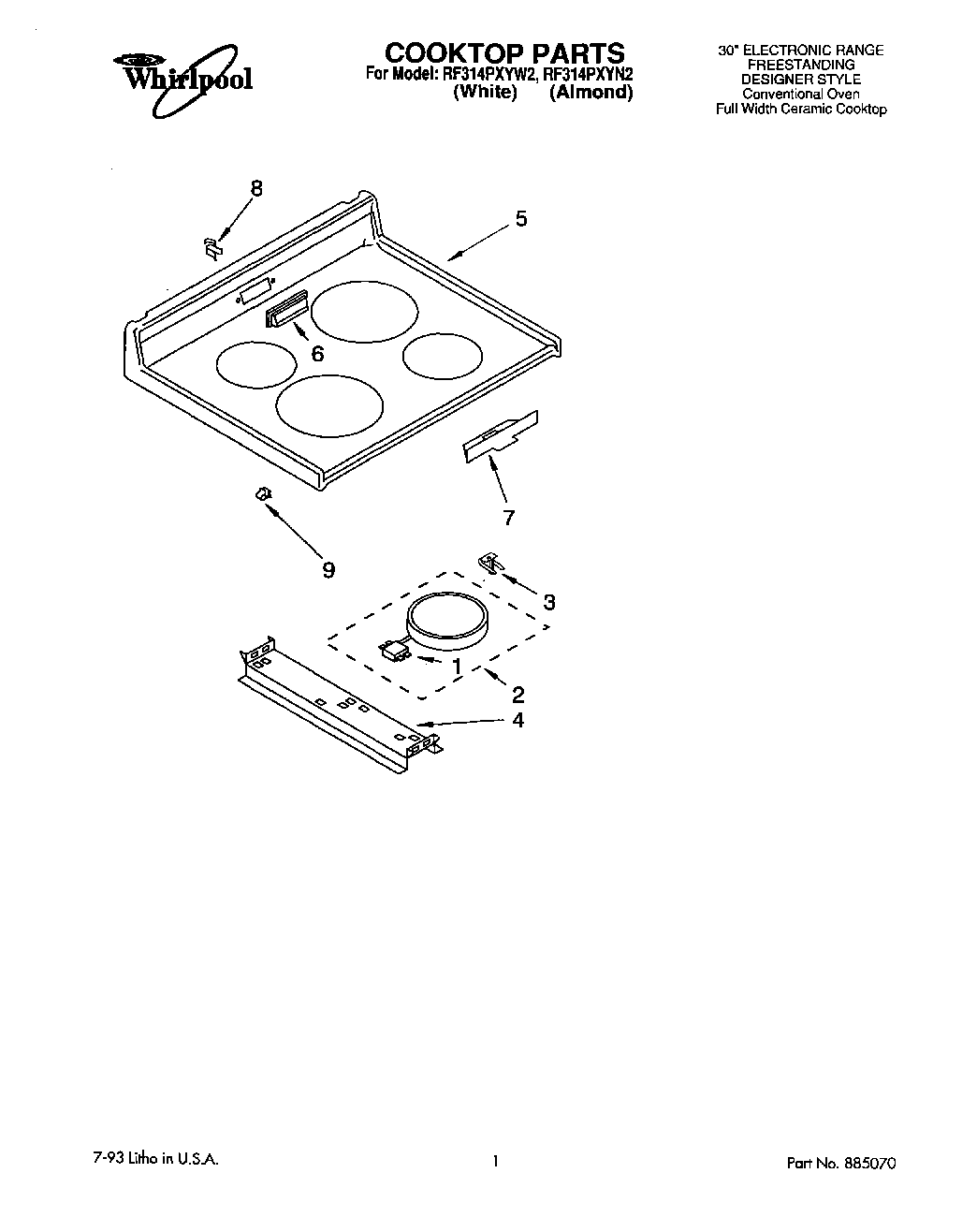

RF314PXYN2 01 – COOKTOP, LITERATURE

Products

Position	Product
	Use and Care Guide
	Wiring Diagram
	Instructions, Installation
	WPL LIT3150400
1	Limiter, Temperature (Use W/3183648 Element)
1	Limiter Temp. (7“ – RF)
2	Element, Surface (1700W Right Front)
2	Element, Surface (2100W Right Rear)
3	Spring, Locator
3	WP486754 Whirlpool Compactor Screw
4	Bracket, (2) Element Support
4	Screw (2)
5	Cooktop (White Mdl.)
5	Cooktop (Almond Mdl.)
5	WP308685 Whirlpool Microwave Screw
6	Cover, Vent (White)
6	cover, vent (almond)
7	Shield, Probe
8	Clip, Vent Cover
9	Clip
