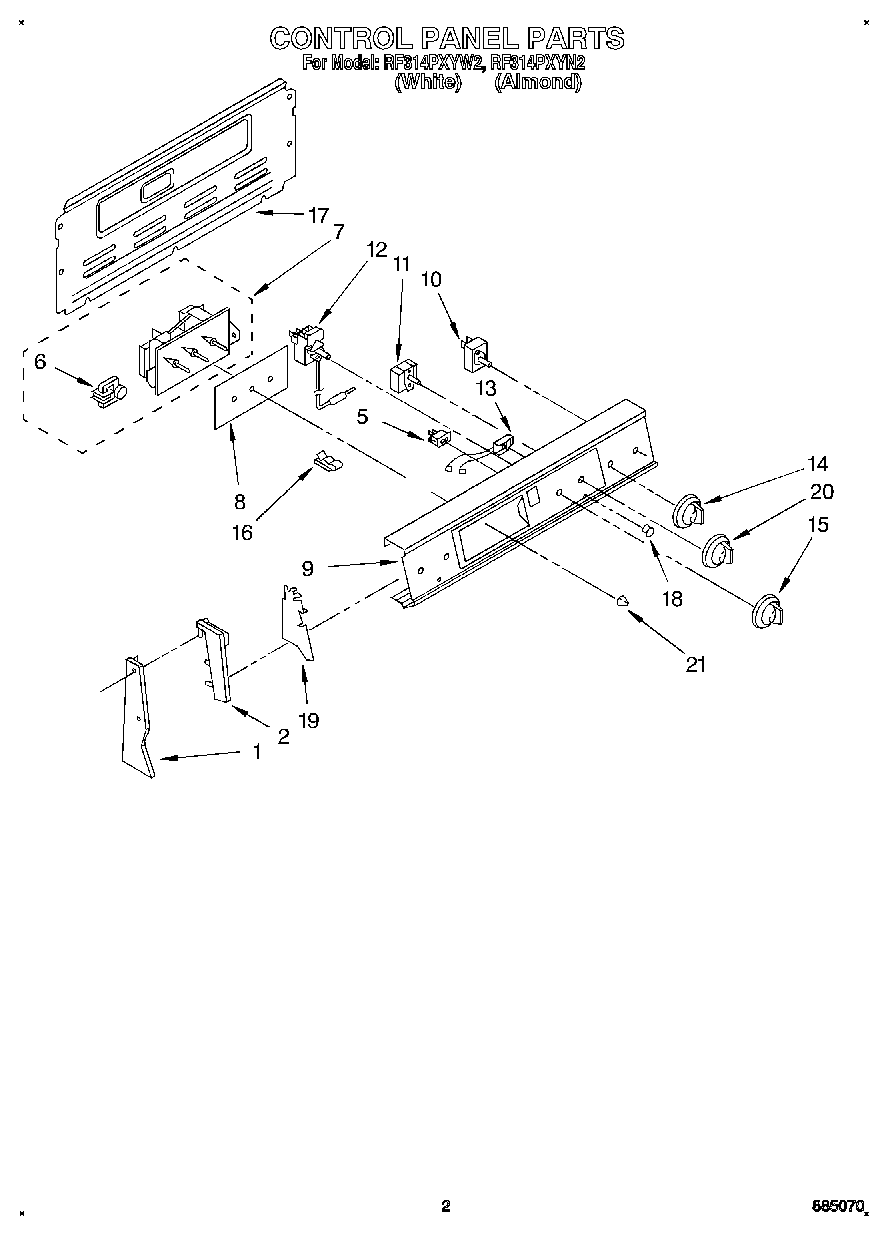

RF314PXYN2 02 – CONTROL PANEL

Products

Position	Product
1	End Trim R.H.
1	End Trim L.H.
2	End Cap, R.H. (White/Almond/Gold)
2	End Cap, R.H. (White/Almond/Gold)
2	Screw,
5	WP4314961 Whirlpool Lite Switch
6	Motor, Timer
7	Timer, Control
8	Glass, Timer
9	Washer
9	Panel, Control (White/Almond Mdl.)
10	Screw, 8-32 x 3/16 (2)
10	WP3148952 Whirlpool Oven Infinite Switch
10	SWITCH-INF
11	Switch, Selector (4 Position)
12	WP313808 Whirlpool Screw
12	Thermostat, Oven
13	Indicator Light (1)
13	Light, Indicator (Includes No. 12) (Surface Unit On)
13	Light, Indicator (250V)
14	Knob, (4) Infinite Switch (White/Almond/Gold)
15	Knob, Thermostat
16	Clip, Tube
17	Rear Cover Contr
17	SCREW
18	Lens, Amber
19	Shield (2)
19	WP965173 Whirlpool Dishwasher Screw
20	Knob, Selector
21	WP3169181 Whirlpool Knob
