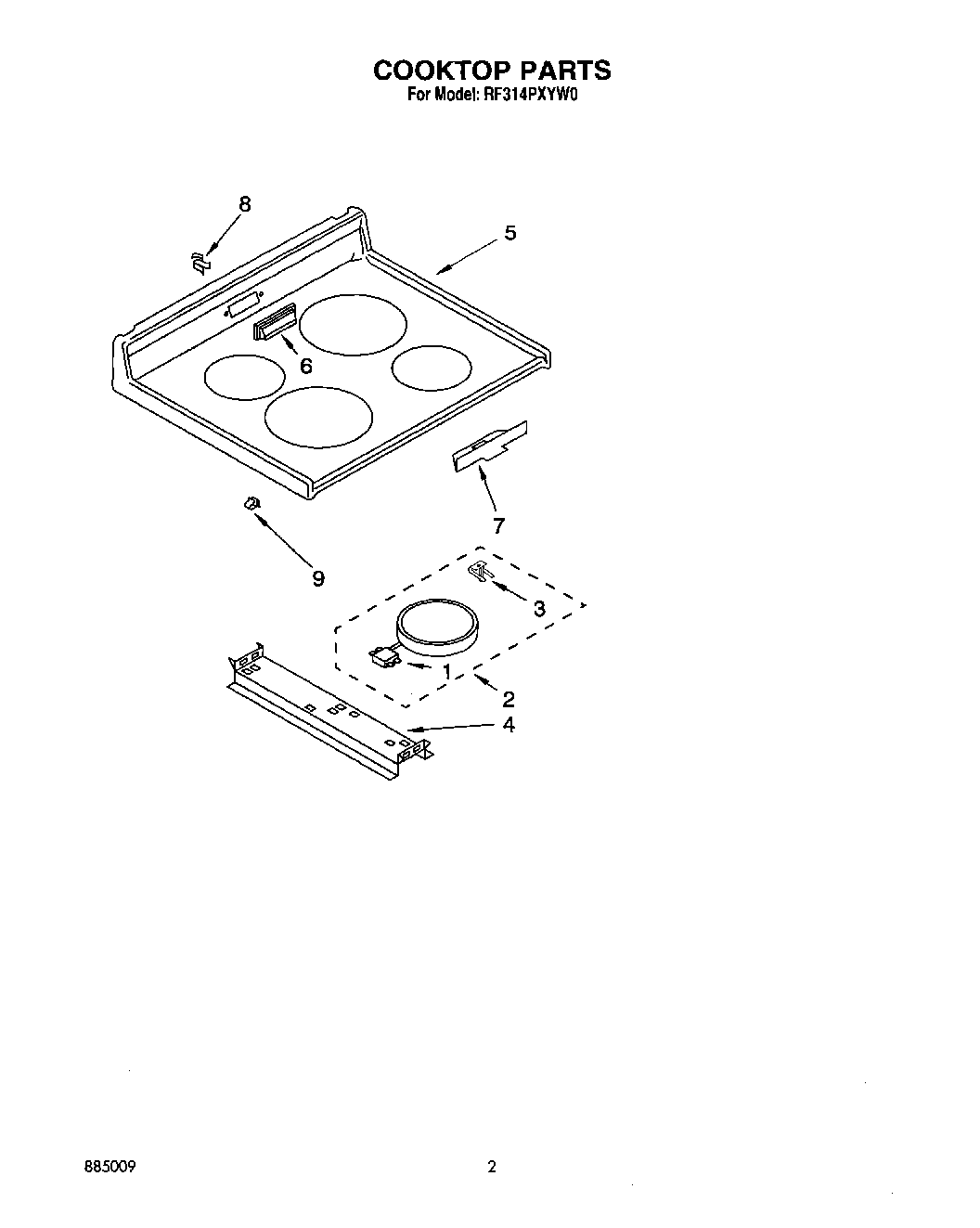

RF314PXYW0 02 – COOKTOP, LIT/OPTIONALadmin2025-04-26T11:08:03+00:00RF314PXYW0 02 – COOKTOP, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Wiring Diagram |
| Use and Care Guide |
| Repair Parts List |
| Video, Ceran Cooktop |
| WPL LIT3147395 |
| 1 | Limiter Temp. (7`` - RF) |
| 1 | Limiter, Temperature (Use W/3183648 Element) |
| 2 | Element, Surface (Includes No.1) (230 MM - (2)) |
| 2 | Element, Surface (Includes No.1) (200 MM - (2)) |
| 3 | WP486754 Whirlpool Compactor Screw |
| 3 | Spring, Locator |
| 4 | Screw (2) |
| 4 | Bracket, (2) Element Support |
| 5 | Cooktop (White Mdl.) |
| 5 | Cooktop (Almond Mdl.) |
| 6 | cover, vent (almond) |
| 6 | Cover, Vent (White) |
| 7 | Shield, Probe |
| 8 | Clip, Vent Cover |
| 9 | Clip |
